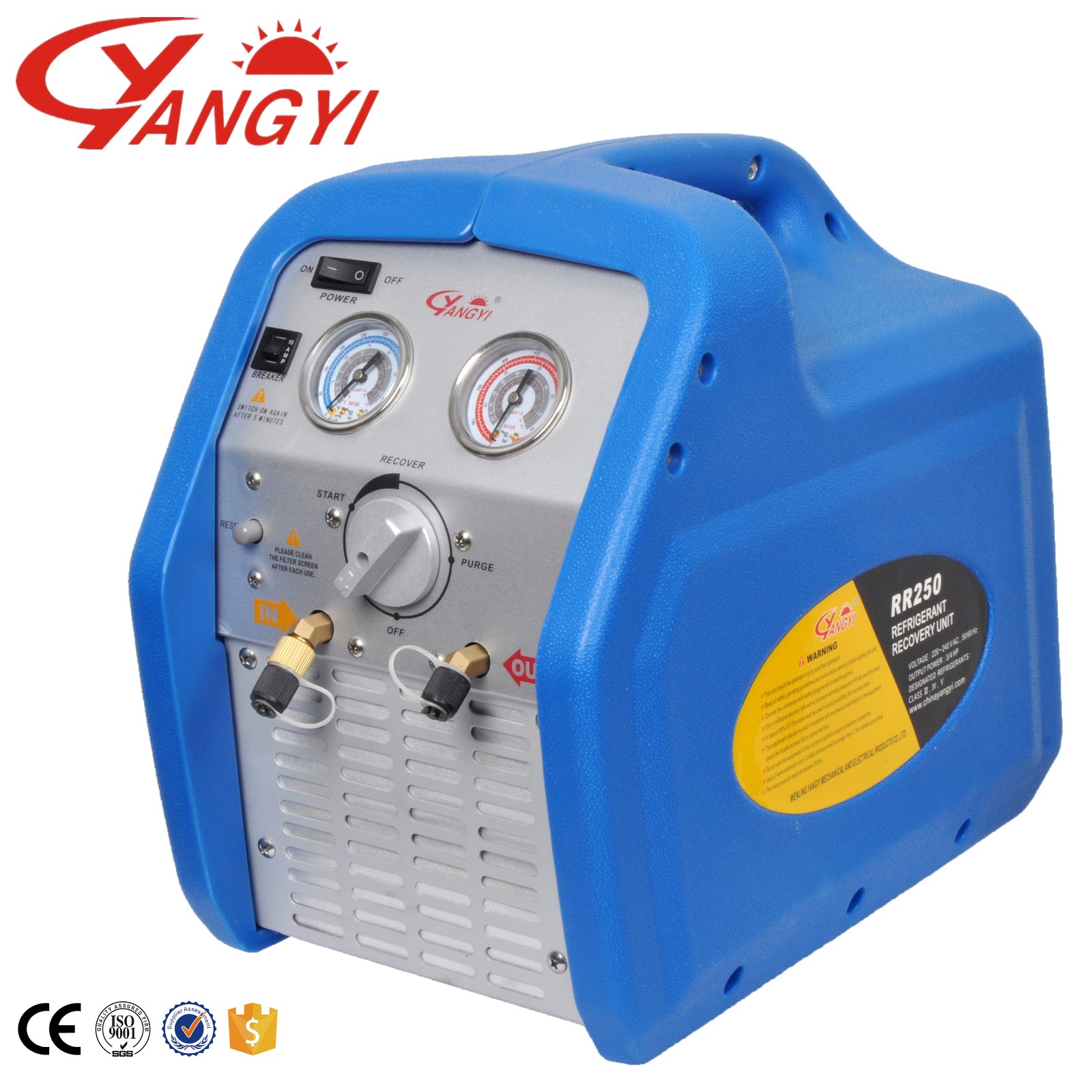

Refrigerant Recovery Unit
This refrigerant recovery unit is designed for the efficient removal of refrigerants from HVAC and refrigeration systems. It is suitable for use with R32 and other refrigerants.
Technical Specifications
Product Overview
High-Efficiency Refrigerant Recovery

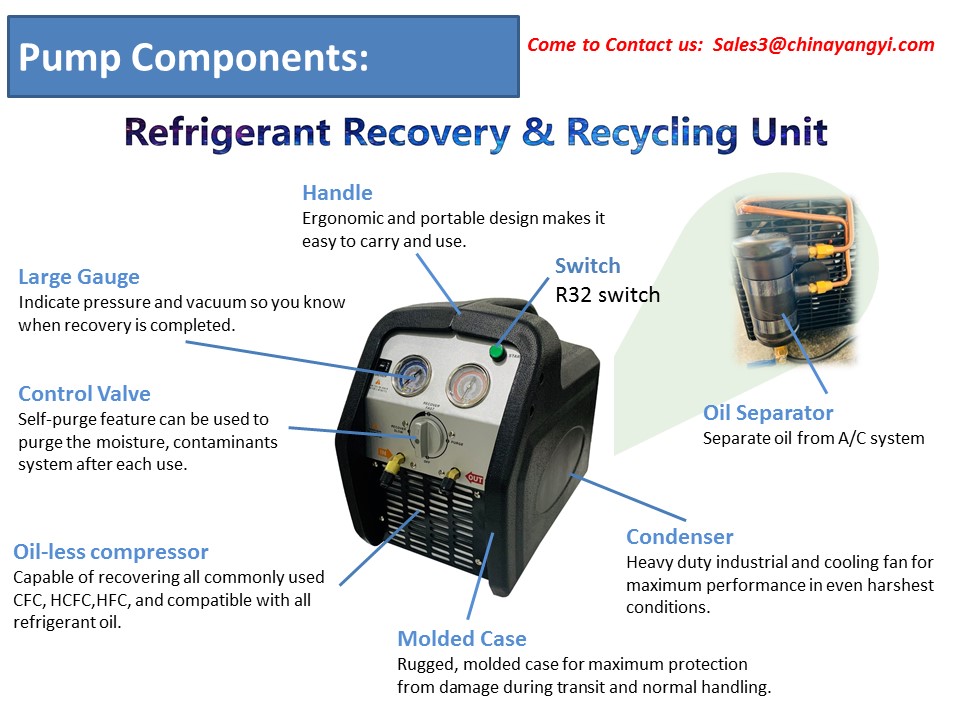

This professional-grade refrigerant recovery and recycling unit is engineered for versatile use in automotive air conditioning and HVAC&R systems. Equipped with a robust 3/4 HP oil-less compressor, it ensures long service life and high performance even in harsh conditions. The system features a one-button operation, self-purge capability for cross-contamination prevention, and comprehensive high/low-pressure safety protections to ensure reliable operation for technicians.
Technical Specifications
- Motor Power
- 0.75 HP
- Voltage Options
- 220-240V/50-60Hz110-120V/60Hz
- Compressor
- Oil-less, Air-cooled, Piston style
- High Pressure Shut-off
- 38.5 bar
Key Performance Metrics
Recovery Capacity
0.25 kg/min
Vapor Rate
1.8 kg/min
Liquid Rate
5.6 kg/min
Push/Pull Rate
Physical Attributes
Physical Specs
- Dimensions: 400 x 250 x 360 mm
- Net Weight: 13.5 kg
Compatibility
Supported Refrigerants
| Category | Refrigerants |
|---|---|
| Category III | R12, R134a, R401C, R406A, R500, R32, R1234YF |
| Category IV | R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509 |
| Category V | R402A, R404A, R407A, R407B, R410A, R507 |
Safety and Features
Integrated Protection

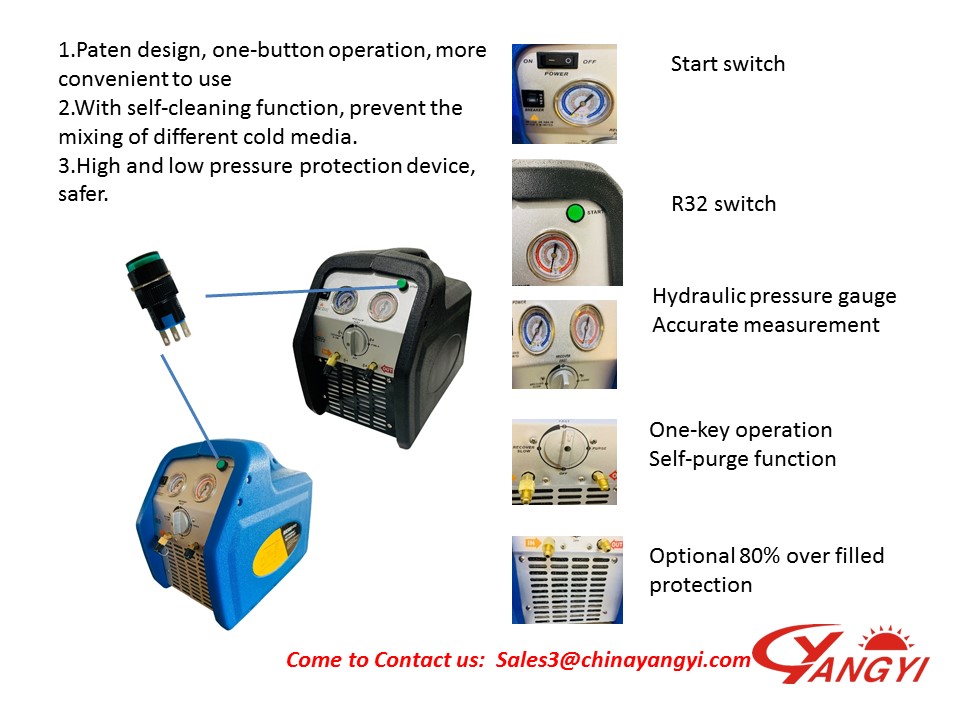

High/Low Pressure ProtectionSelf-Purge FunctionOil Separator80% Overfill ProtectionOne-Key Operation
