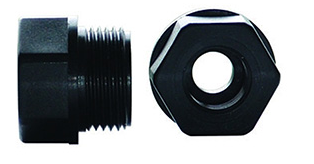

Reducing NPT Connector
This reducing NPT connector is designed to connect pipes of differing sizes. Constructed from durable ABS, it ensures a secure and leak-proof connection in fluid or gas systems.
Technical Specifications
Overview
Versatile NPT Reducing Connectors
These high-quality reducing connectors are designed for secure and leak-proof connections in various industrial fluid or gas systems. Constructed from durable ABS material, they offer excellent resistance to corrosion and long-lasting performance in demanding environments. The hexagonal body design facilitates easy installation and maintenance using standard wrenches, making them an ideal choice for machinery and piping applications.
Technical Specifications
Nominal Pressure
0.6 MPa
Nominal Size/Pressure
- Material
- ABS
- Water Temperature Range
- 1–55℃
Model Variants
Dimensions by Specification
| Specifications | Dimensions (L*W*H) |
|---|---|
| 3/4″F * 1″M | 32mm * 25mm * 31mm |
| 1/2″F * 1″M | 32mm * 20mm * 31mm |
| 3/4″M * 1/2″M | 20mm * 25mm * 38mm |
- Available NPT Types
- 1″M × 1″F/NPT1″F × 1″M/NPT3/4″F × 3/4″M/NPT2″M × 2″F/NPT2″F × 2″M/NPT
Design Features
Key Design Features
- Hexagonal body for easy wrenching
- Precision-engineered external and internal threading
- Leak-proof connection for fluid and gas systems
- Lightweight and corrosion-resistant construction
