Rebar Thread Rolling Machine
This rebar thread rolling machine is designed to process threads on rebar ends in construction. It can handle HRB335, HRB400, and HRB500 hot rolled ribbed bar with diameters from 12-50mm.
Technical Specifications
Overview
Industrial Rebar Threading Solution

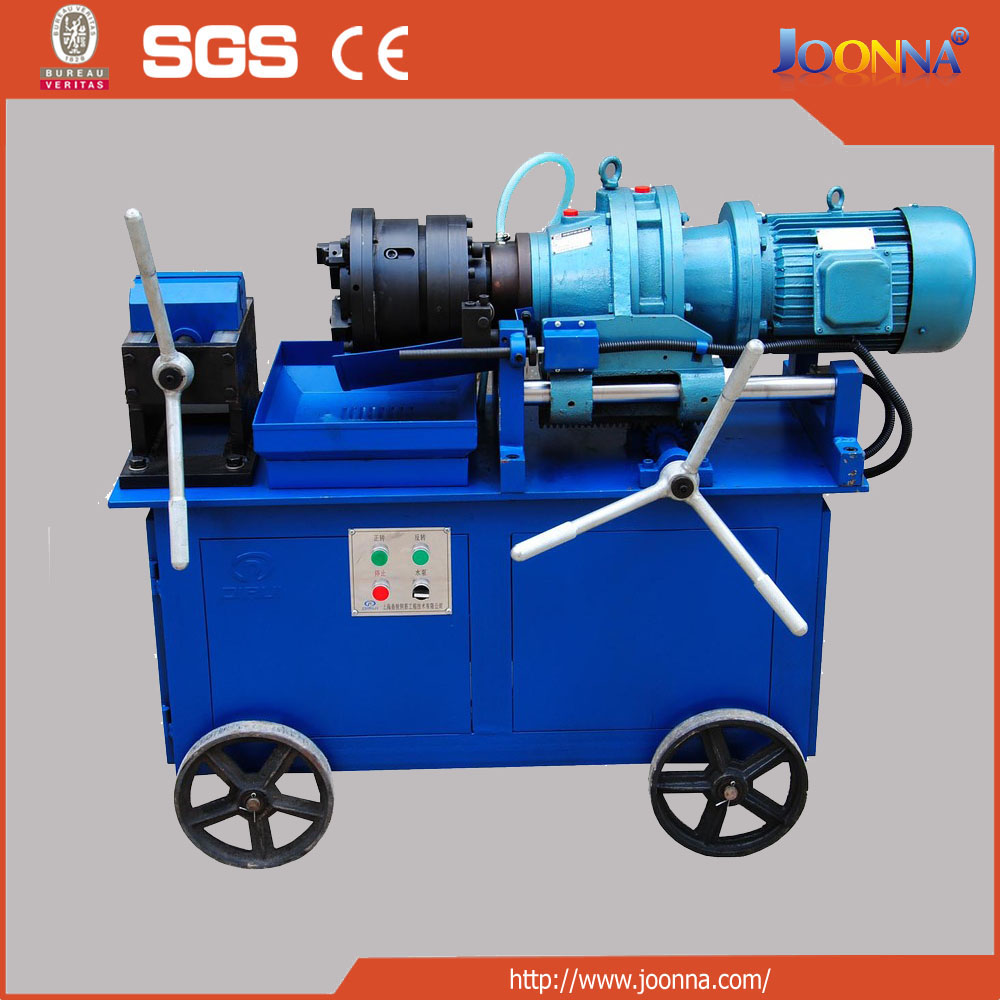

The JN/GQP50 Rebar Thread Rolling Machine is a high-performance tool engineered for construction projects requiring precise threading on hot-rolled ribbed bars. Designed for versatility, it supports a wide range of rebar diameters from 12mm to 50mm and is suitable for various steel grades including HRB335, HRB400, and HRB500. Its robust alloy steel blade and automated control system ensure reliable, high-quality threading for critical applications like bridge and tunnel construction.
Certifications
- Industry Standards
- SGSCEISOTUVBV
Performance
Operational Metrics
50 mm
Max Rebar Diameter
120 mm
Max Thread Length
5.5 kw
Motor Power
60 r/min
Max Spindle Speed
Technical Specifications
Machine Comparison
| Feature | JN/GQP40E | JN/GQP50 |
|---|---|---|
| Rebar Dia | 16-40mm | 12-50mm |
| Motor Power | 4kw | 5.5kw |
| Voltage | 380v/50hz | 380v/50hz |
| Spindle Speed | 49-60r/min | 49-60r/min |
| Max Thread Length | 200-300mm | 120mm |
Features
Key Features
- Automatic low voltage control for operator safety
- Patent-protected rib-stripping mechanism
- Adjustable positioning disc for range flexibility
- Supports both right-handed and left-handed threading
- Exclusive coaxial decelerator for enhanced parallelism
- High-strength clamp mechanism
