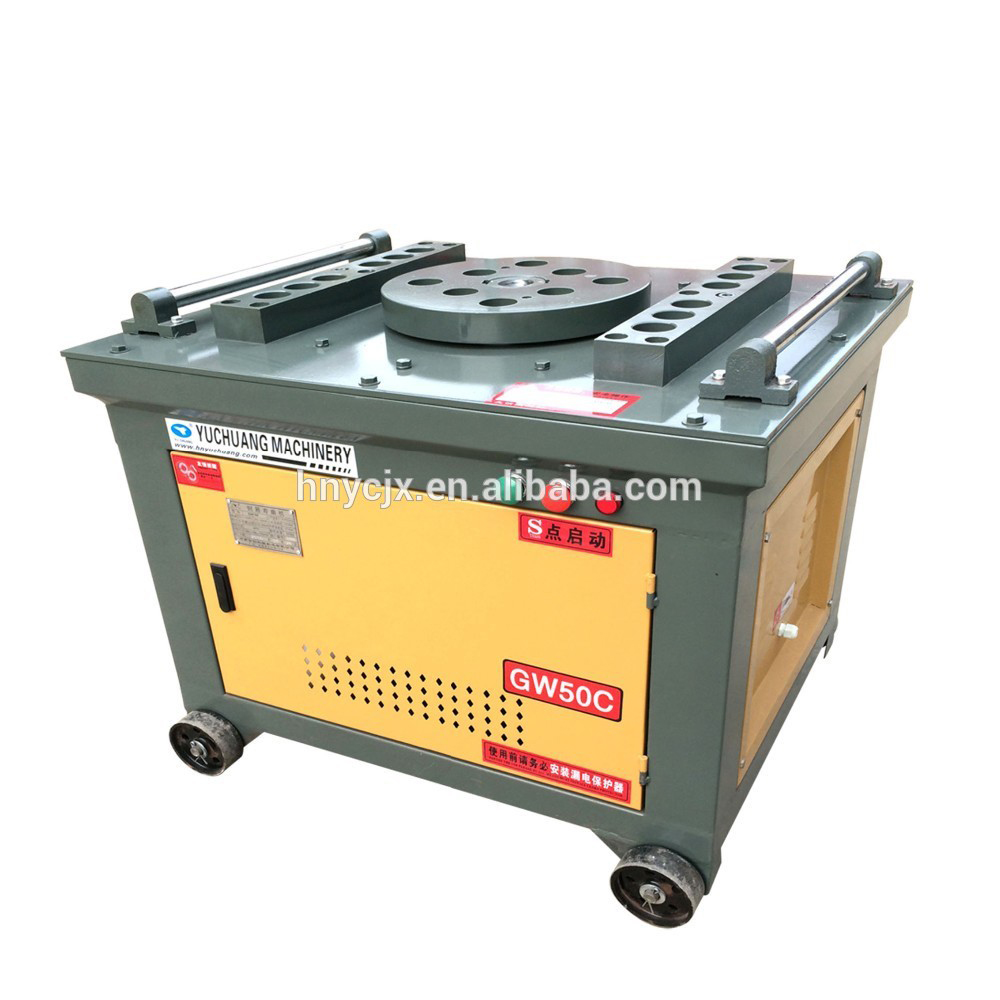

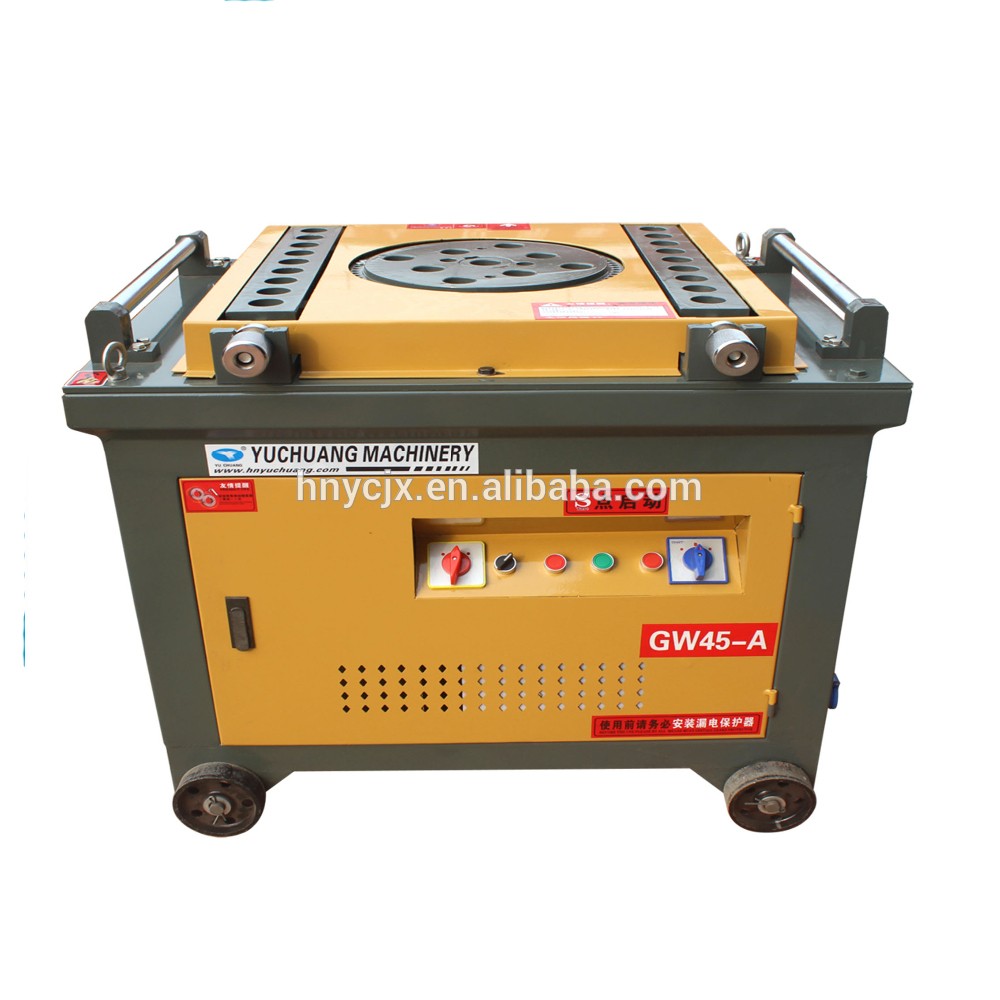

Rebar Stirrup Bending Machine
This rebar stirrup bending machine is engineered for durable and reliable steel processing. It is designed for active and stable operation with simple controls, enhancing work efficiency.
Technical Specifications
Product Overview
Industrial Rebar Processing
This rebar stirrup bending machine is engineered for high-performance steel processing in demanding construction environments. Featuring a high-torque design capable of handling bars up to 50 mm, it incorporates premium components like Schneider electronics and durable HT250 transmission housings. Designed for efficiency and operator safety, the unit offers low-noise operation and includes a foot-pedal control for streamlined, high-output production.
Technical Specifications
Model Specifications
| Feature | GW42 | GW50C | GW50E |
|---|---|---|---|
| Bending Range | 6-40mm | 6-50mm | 6-50mm |
| Bending Speed | 5-10/min | 10r/min | 10r/min |
| Motor Power | 3KW | 4KW | 4KW |
| Disk Diameter | 380mm | 410mm | 410mm |
| Net Weight | 350kg | 375kg | 395kg |
- Construction Materials
- HT250 TransmissionQT 500-7 Gears45 Carbon Steel ShaftCr12 Bending Mold
Features
Key Performance Metrics
50 mm
Max Bend Diameter
80 dB
Max Noise Level
Operational Highlights
- Foot-switch controlled operation for improved efficiency
- Schneider brand electrical components
- Active noise reduction technology
- Flexible and simple operation interface
