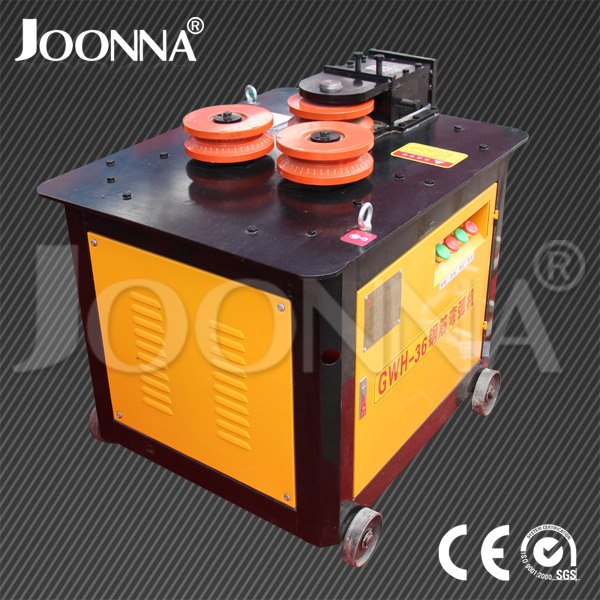

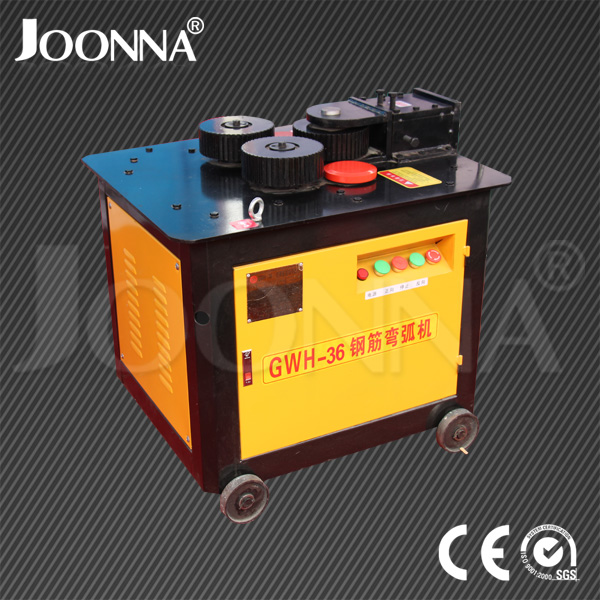

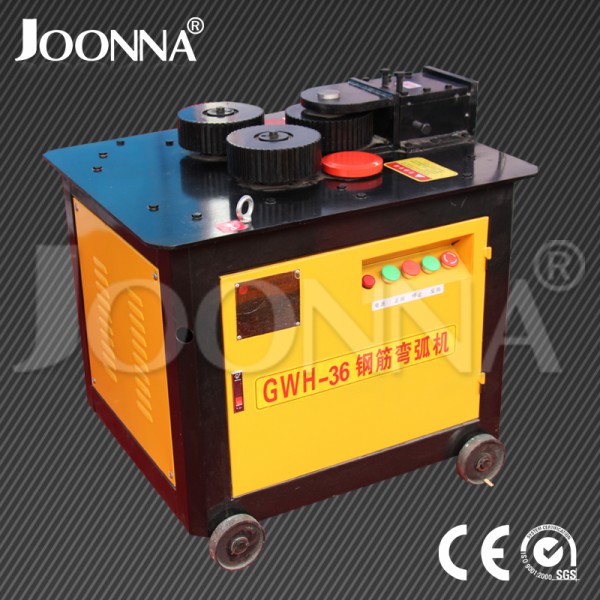

Rebar Arc Bending Machine
This rebar arc bending machine is designed for bending steel reinforcement bars into precise arcs. It features a durable construction and user-friendly controls for efficient operation.
Technical Specifications
Overview
Professional Arc Bending Solution
The Arc Rebar Bender is a high-performance equipment designed for creating precise 360-degree arcs in steel reinforcement bars. It is engineered for heavy-duty applications in large-scale construction projects, including bridge, tunnel, culvert, and hydro-electric station engineering. Featuring durable construction with high-duty steel components, this machine ensures consistent performance, high efficiency, and extended operational life on demanding job sites.
Technical Specifications
- Bending Speed
- 12 m/min
- Power Output
- 1.1 kW
- Engine Model
- Y90S-4
- Rotation Speed
- 1460 r/min
- Arc Bending Radius
- ≥ 60mm
Physical Attributes
- Dimensions
- 680 x 600 x 580 mm
- Weight
- 120 kg
Performance & Features
Bending Capacity
- Reinforced Rebar
- Φ4 - Φ10mm Steel
Key Features
- Double driving wheels transmission
- Clockwise and counterclockwise operation
- Calcium grease lubrication system
- Versatile: Bends angle rebar, flat rebar, round tube, and square tube
Compliance
Certifications
CESGSTUVISO 9001
Components
Material Specifications
- Cr12 bending wheel
- 55Mn gear
- High-duty steel running wheels and gearbox
- Copper wire motor
