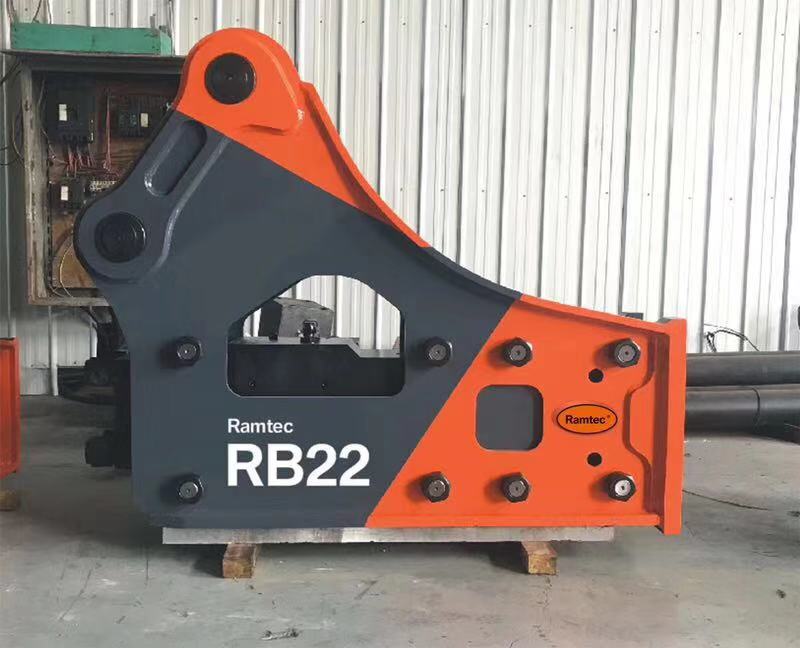

RB22 Hydraulic Breaker with 140mm Rod
This hydraulic breaker is an important working tool that uses pressure oil from an excavator or loader pump station. It is widely used in metallurgy, mining, railways, highways, construction and other fields for crushing hard objects.
Technical Specifications
Overview
High-Performance Hydraulic Breaker
The RB22 Hydraulic Breaker is a robust demolition tool designed for efficiency and safety in demanding environments like mining, construction, and infrastructure projects. With a 140mm chisel diameter and optimized hydraulic performance, it excels at breaking rocks, reinforced concrete, and heavy pavement. This versatile attachment integrates seamlessly with a wide range of excavators to replace large-scale blasting with selective, non-blasting excavation methods.
Technical Specifications
Dimensions & Weight
956 kg
Body Weight (incl. chisel)
1,809 kg
Total Weight
140 mm
Chisel Diameter
Performance Data
350 bmp
Blow Frequency (Min)
500 bmp
Blow Frequency (Max)
160 Kg/cm2
Operating Pressure (Min)
Compatibility
Compatible Carrier Models
- XCMG 220/240/250
- CAT 219/320/322/325/320C
- KOMATSU PC200/PC220
- HITACHI ZX210/ZX220/ZX230/ZX240/ZX270
- VOLVO EC210/EC240
- SANY SY185C-8/195/205/215/225/235
Commercial Information
- Compliance
- CE
