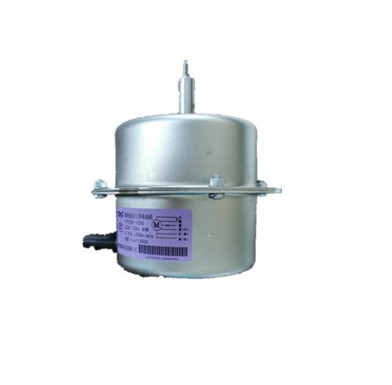

Range Hood Ventilation Motor
This high-performance motor is designed for range hoods. The motor ensures efficient ventilation and reliable operation in kitchen environments by removing smoke, odors, and grease.
Technical Specifications
Product Overview
High-Performance Ventilation Solution
This range hood ventilation motor is engineered for household oil smoke extraction, providing reliable and efficient performance. Designed for quiet operation and stability, it features low noise output and minimal vibration to maintain a comfortable kitchen environment. Customizable installation dimensions and performance profiles ensure suitability for a wide array of ventilation system requirements.
Key Features
- Product Highlights
- Low NoiseLow VibrationHigh EfficiencyHigh ReliabilityStable Speed
- Primary Application
- Household oil smoke extraction systems
Technical Specifications
Model Specifications
| Model | Voltage (V) | Power (W) | Capacitor (μF) | High Speed (RPM) | Low Speed (RPM) |
|---|---|---|---|---|---|
| YPY-58N | 220 | 58 | 3 | 1,000 | 760 |
| YPY-60N | 220 | 60 | 3 | 1,000 | 780 |
| YPY-45 | 220 | 45 | 4 | 870 | 600 |
| YPY-70 | 220 | 70 | 4.5 | 980 | 700 |
| ZWT-45 | DC 310 | 45 | 0 | 900 | 650 |
| ZWT-70 | DC 310 | 70 | 0 | 950 | 700 |
