Range Hood Air Chamber with Brushless Motor

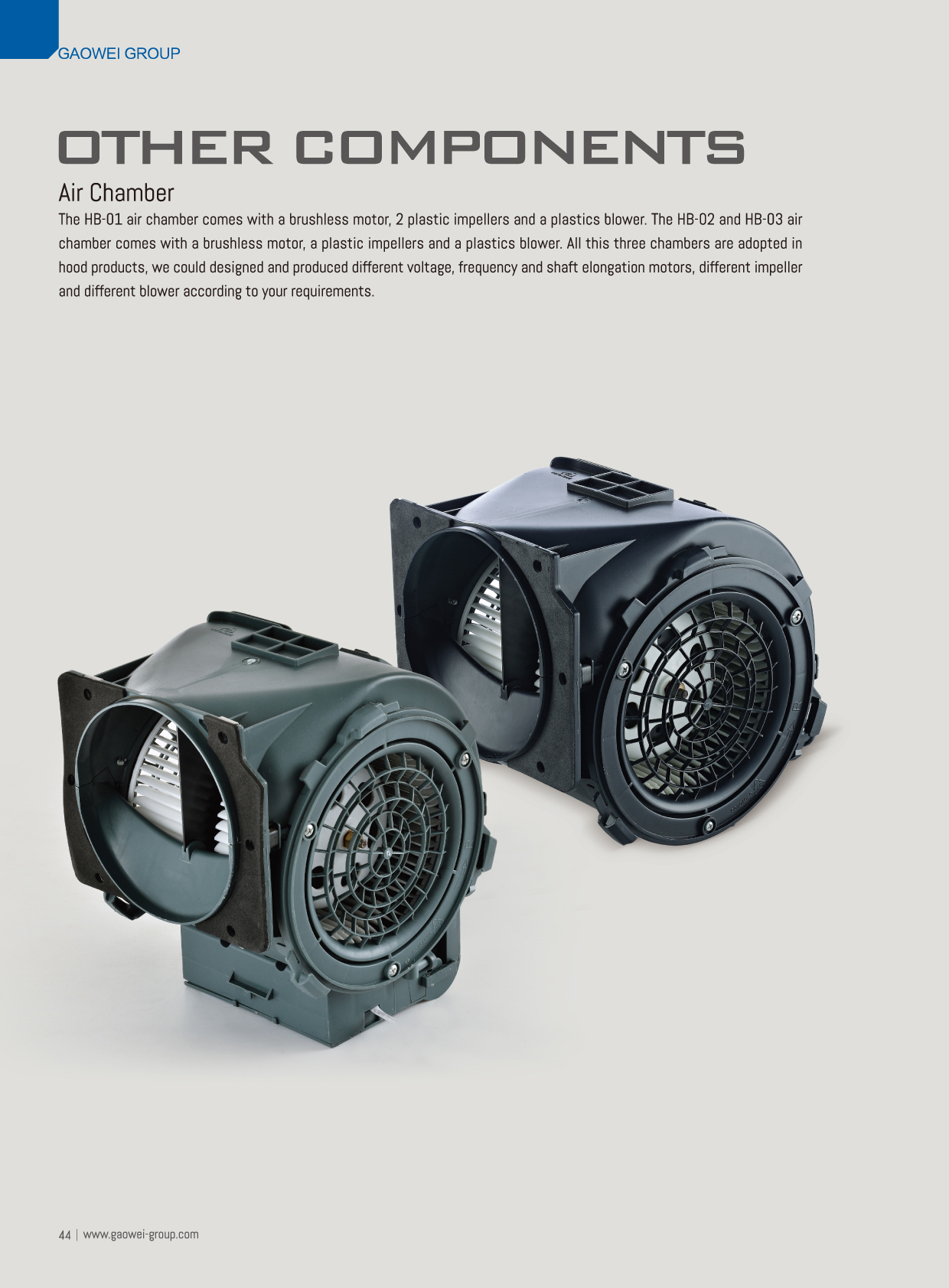

This air chamber is equipped with a brushless motor, two plastic impellers, and a plastic blower. It is designed for use in range hood products.
Technical Specifications
Product Overview
High-Performance Air Chamber Solutions
This range hood air chamber series features a robust brushless motor paired with high-efficiency plastic blowers and impellers. Designed for seamless integration into range hood products, these units offer reliable airflow and durability. We provide flexible customization options for voltage, frequency, and motor shaft elongation to meet specific application requirements.
Technical Specifications
Performance Data
| Model | Voltage (V) | Power (W) | Rotation (RPM) | Insulation |
|---|---|---|---|---|
| HB-01 | 220-240 | 185 | 2,119 | F |
| HB-02 (High) | 220-240 | 163 | 1,856 | F |
| HB-02 (Low) | 220-240 | 130 | 2,400 | F |
- Available Models
- HB-01HB-02HB-03
Customization
Customizable Features
- Voltage
- Frequency
- Shaft elongation
- Impeller design
- Blower configuration
