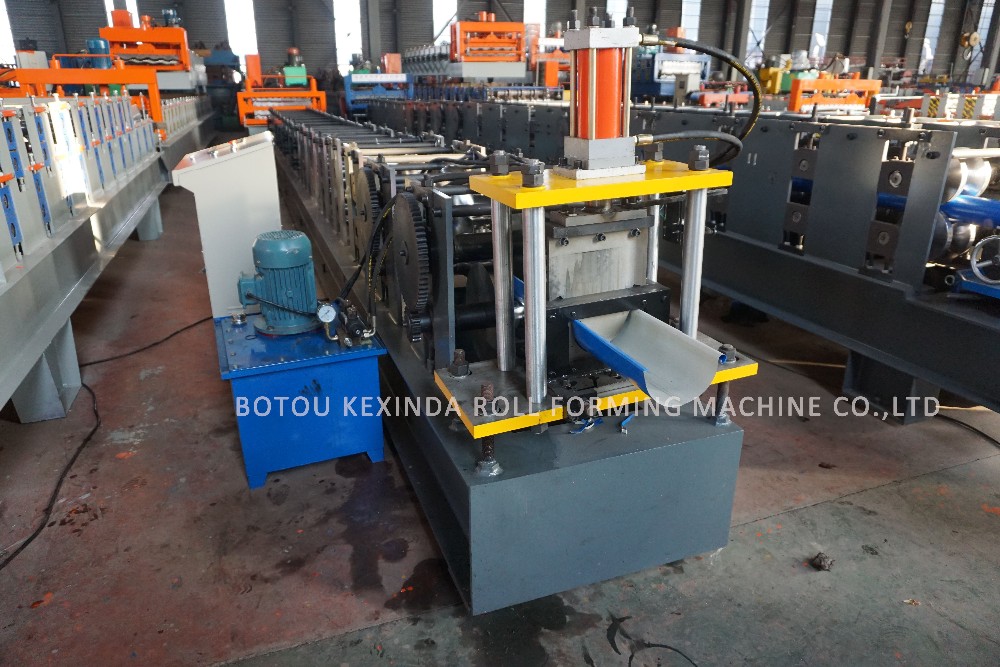

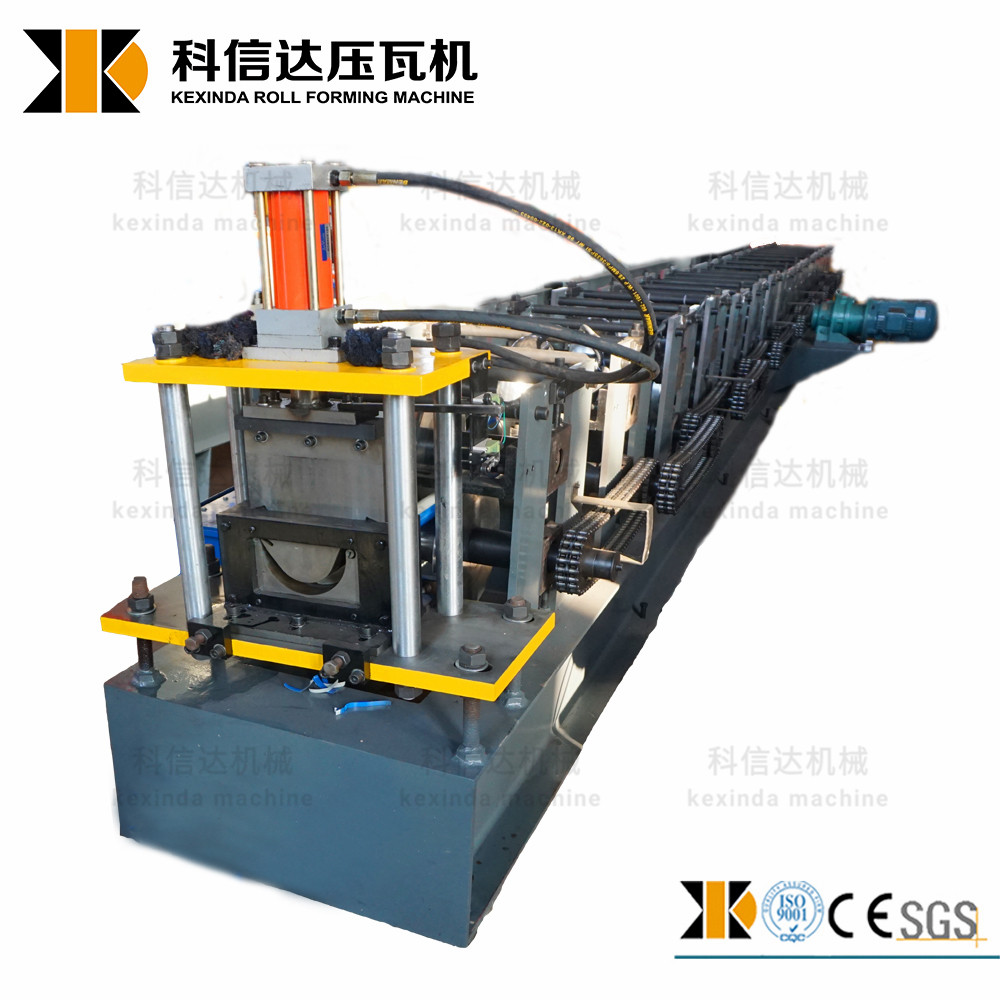

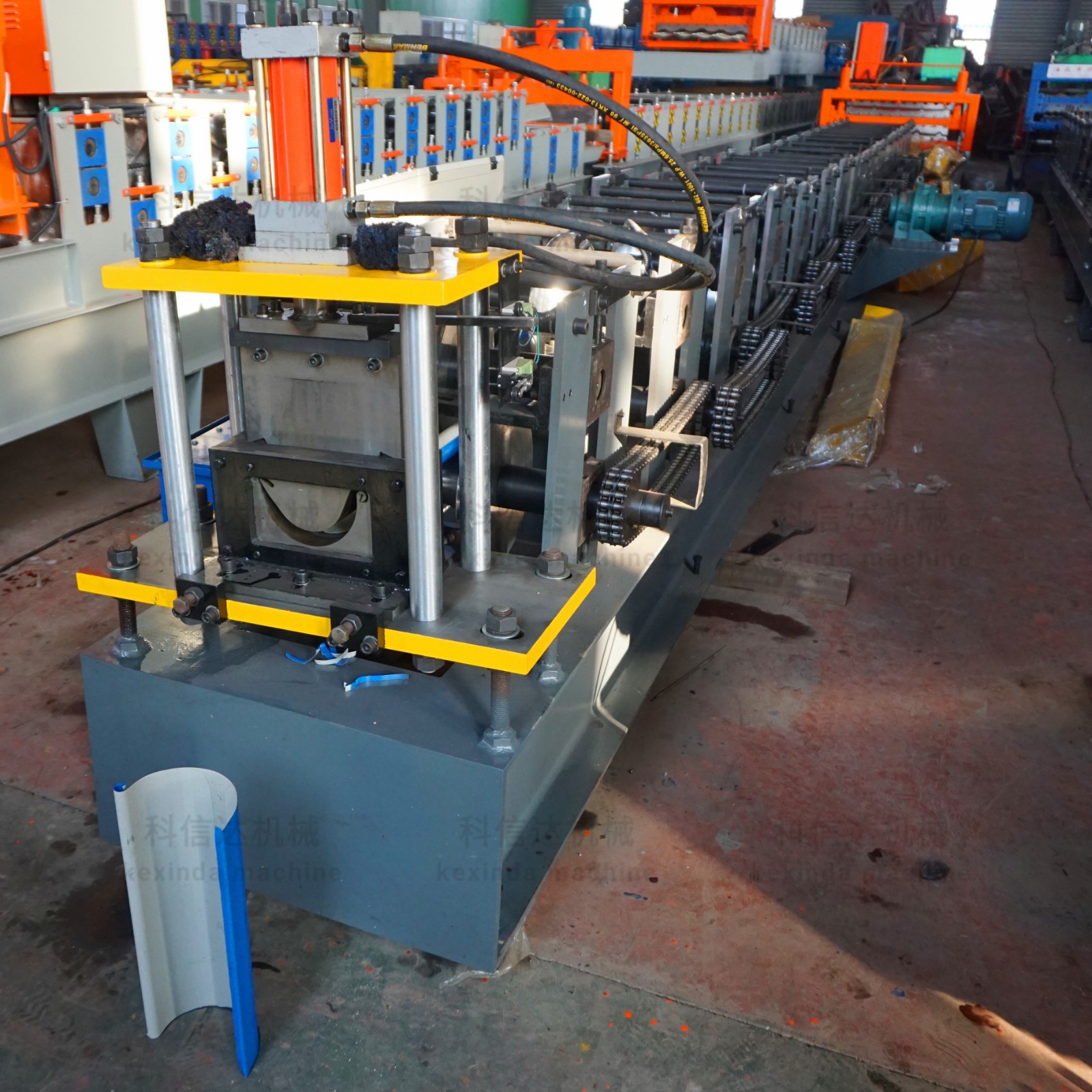

Rain Gutter Roll Forming Machine

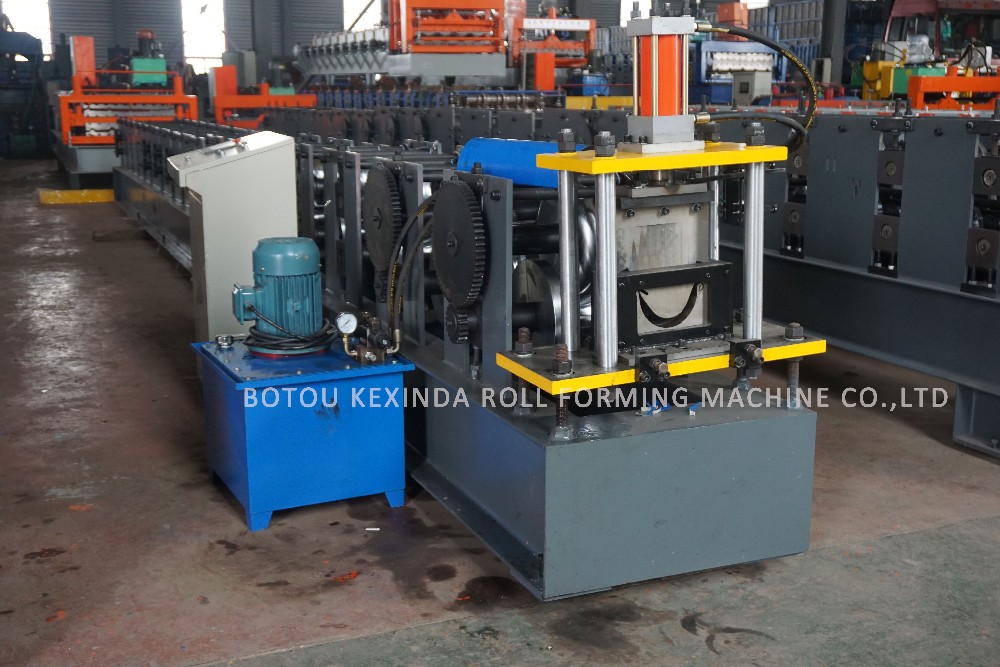

This rolling mill efficiently shapes metal sheets into the desired gutter profile. It features a hydraulic cutting system for accurate length control and clean cuts.
Technical Specifications
Overview
High-Efficiency Rain Gutter Production
This automated rain gutter roll forming machine is engineered for precision and high-volume manufacturing. It features a robust, multi-station forming system that transforms metal coils into accurate gutter profiles with consistency. Equipped with an advanced PLC control system and hydraulic cutting capabilities, this machine offers a reliable, cost-effective solution for industrial metal forming requirements.
Technical Specifications
Motor Power
4 KW
Main Motor
3 KW
Pump Power
- Power Supply
- 380V, 3 phases, 50 Hz (Adjustable)
Uncoiler Details
Uncoiler Specifications
| Parameter | Value |
|---|---|
| Inner Diameter | 500mm |
| Outer Diameter | 1100mm |
| Loading Capacity | 5t |
Forming Parameters
Forming Performance
| Feature | Specification |
|---|---|
| Feeding Thickness | 0.3-0.6mm |
| Feeding Width | 300-600mm |
| Forming Speed | 10-12m/min |
| Cutting Deviation | 10m ± 2mm |

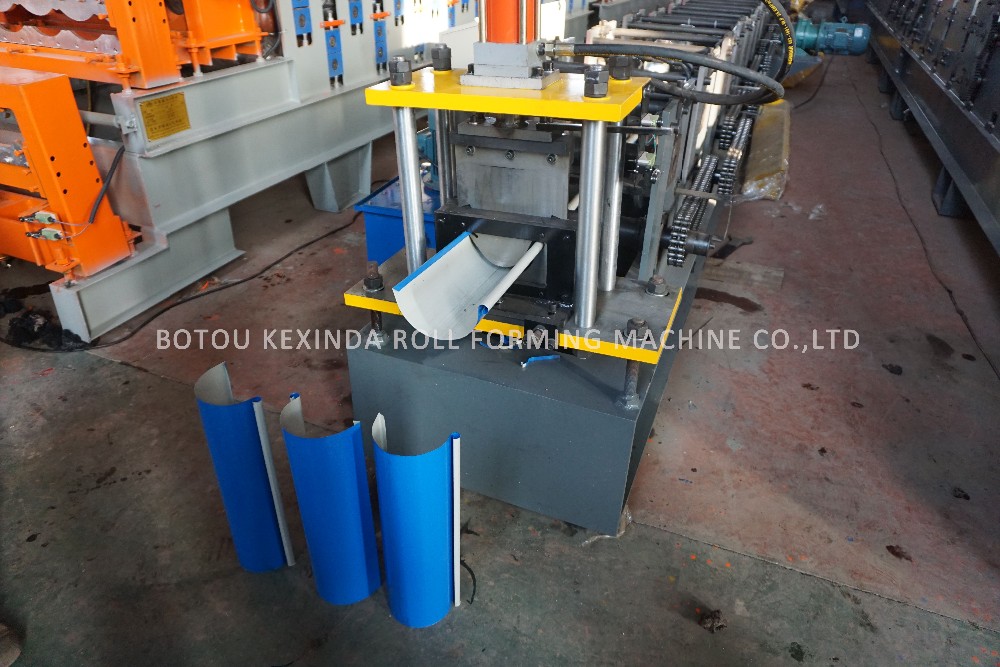

| Roller Stations | 16-18 groups |
Material Specifications
- Roller Material: Cr12
- Shaft Material: 45# steel with heat treatment
- Shaft Diameter: 52-70mm
- Cutter Material: Cr12
System Configuration
- Machine Components
- UncoilerPLC Control SystemHydraulic Cutting SystemCollection Table
- Hydraulic Pressure
- 12 Mpa
- Control Interface
- Full-automatic NC-PLC with colored touch screen
