PVC Shrink Film Blowing Machine

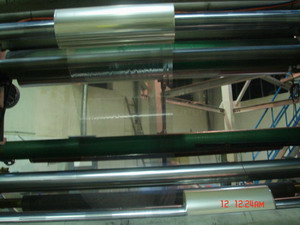

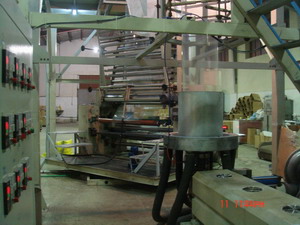

This PVC shrink film blowing machine is designed for producing high-quality PVC shrink film. It features a robust frame, multiple rollers, and a sophisticated control system for efficient film production.
Technical Specifications
Overview
High-Performance PVC Shrink Film Production
This PVC shrink film blowing machine is engineered for the efficient production of high-quality shrink films used in packaging and labeling applications. Featuring a specialized screw design and cycle water cooling, it ensures optimal material melting at lower temperatures. The system includes a precise die structure and remote infrared heating to maintain temperature uniformity, resulting in film with excellent clarity and consistent shrinkage properties.
Production Capacity
Production Output
120 kg/h
Max Output
1,400 mm
Max Film Width
60 m/min
Max Haul-off Speed
Technical Specifications
Extrusion System
| Parameter | Value |
|---|---|
| Screw Diameter | 100 mm |
| L/D Ratio | 25:1 |
| Screw Speed | 0-50 rpm |
| Die Diameter | 200 mm |
Power Requirements
- Driver Power: 55 kW
- Cylinder Heater: 32 kW
- Die Heater: 10 kW
- Total Power: ≤ 160 kW
Film Characteristics
Shrinkage Performance
45 %
Transverse Shrinkage
5 %
Vertical Shrinkage
Physical Dimensions
- Machine Size & Weight
- 13500 x 5500 x 7200 mm (18,000 kg)
Key Features
Design Highlights
Cycle Water Screw CoolingUniform Temperature ControlSilicon Rubber Tow RollersRotate WinderRemote Infrared Heater
