Technical Specifications
Product Overview

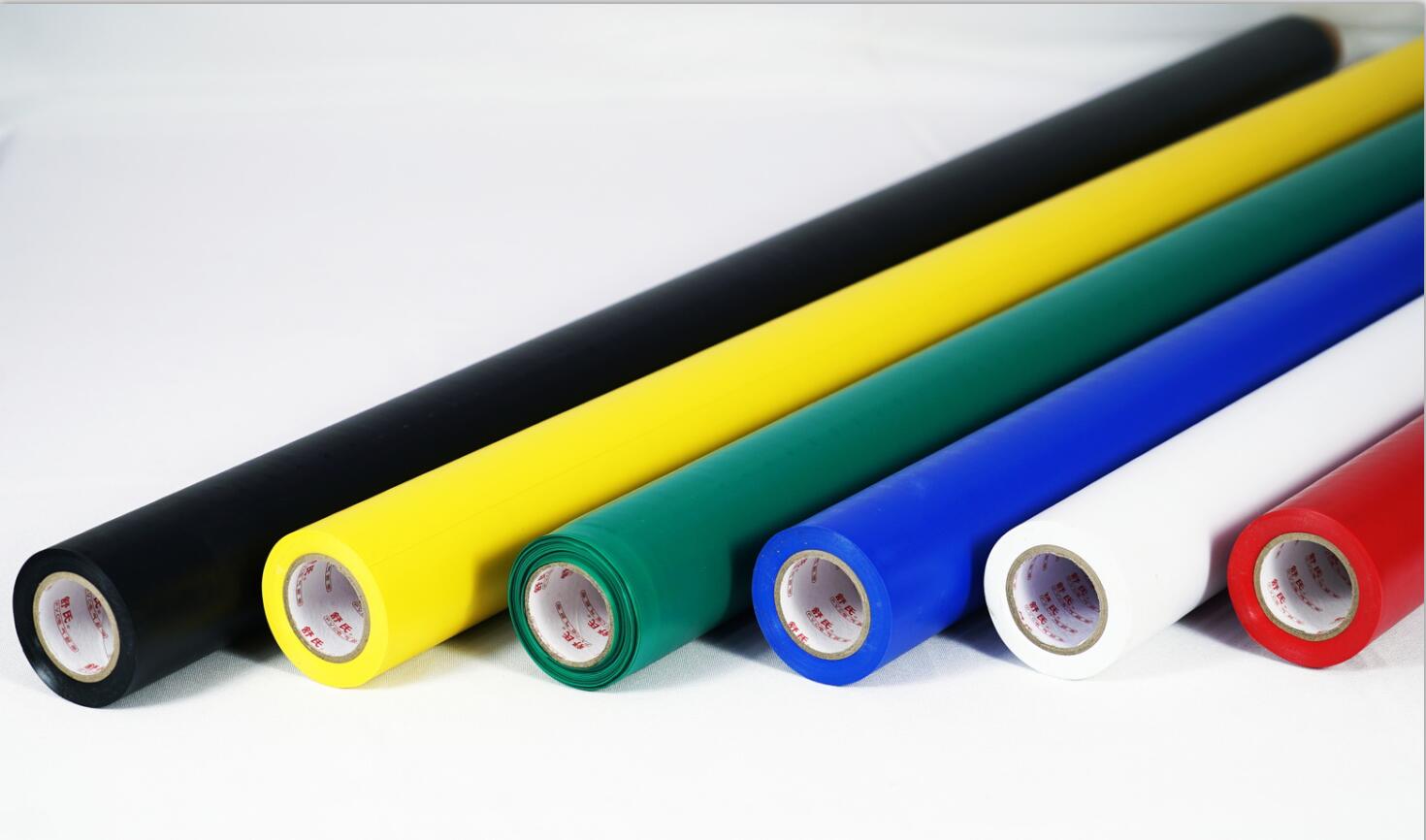

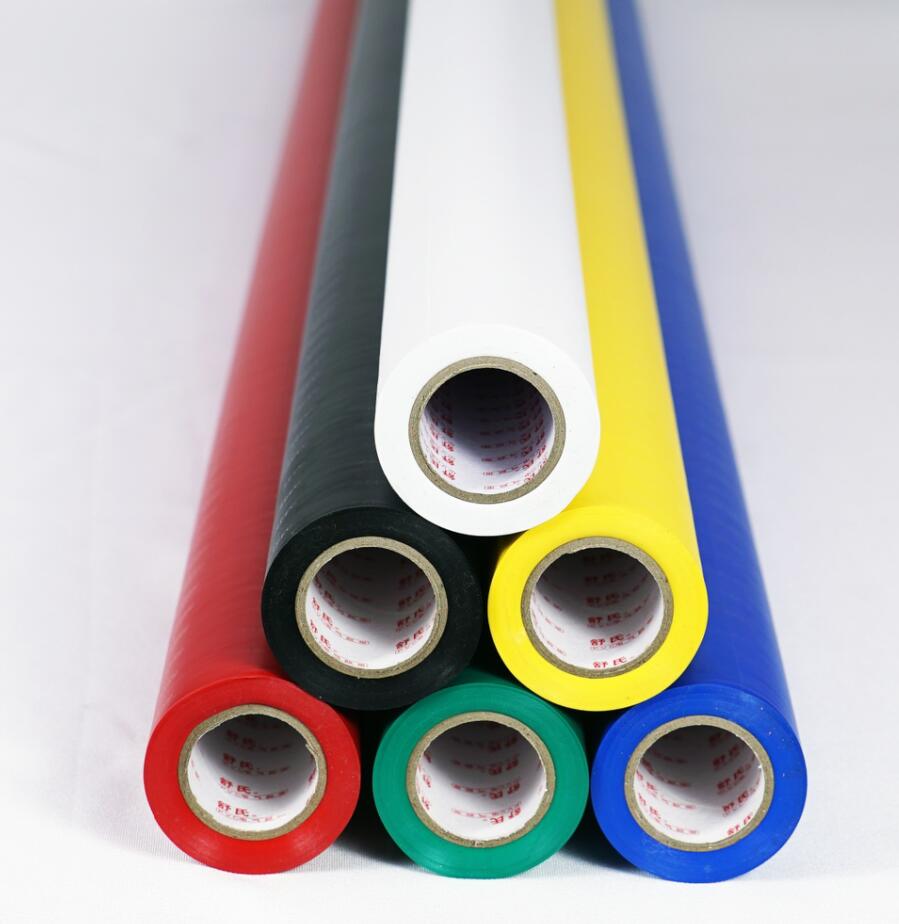

Industrial Grade PVC Jumbo Rolls
These professional-grade PVC electrical insulation tapes are designed for high-performance insulating, marking, and binding applications. Engineered for reliability, they offer superior flexibility, high mechanical strength, and excellent adhesion properties. With a rated voltage capacity up to 600V and flame retardant capabilities, these jumbo rolls provide essential protection in both electrical power transmission and general industrial environments.
Technical Specifications
Performance Parameters
| Property | 2110 | 2130 | 2150 | 2170 |
|---|---|---|---|---|
| Thickness (mm) | 0.11 | 0.13 | 0.15 | 0.17 |
| Tensile Strength (N/cm) | 18 | 20 | 22 | 24 |
| Elongation (%) | 140 | 150 | 160 | 170 |
| Peel Adhesion (N/cm) | 1.9 | 1.8 | 1.7 | 1.6 |
Key Features
Featured Metrics
600 V
Max Voltage
40 kV/mm
Electrical Strength
80 ℃
Max Operating Temp
Product Details
Core and Roll Specs
- Width: 1250mm
- Lengths: 5m, 10m, 15m, 20m, 33m
- Inner paper core diameter: 32mm, 38mm
- Color Variants
- BlackWhiteBlueGreenRedYellow
