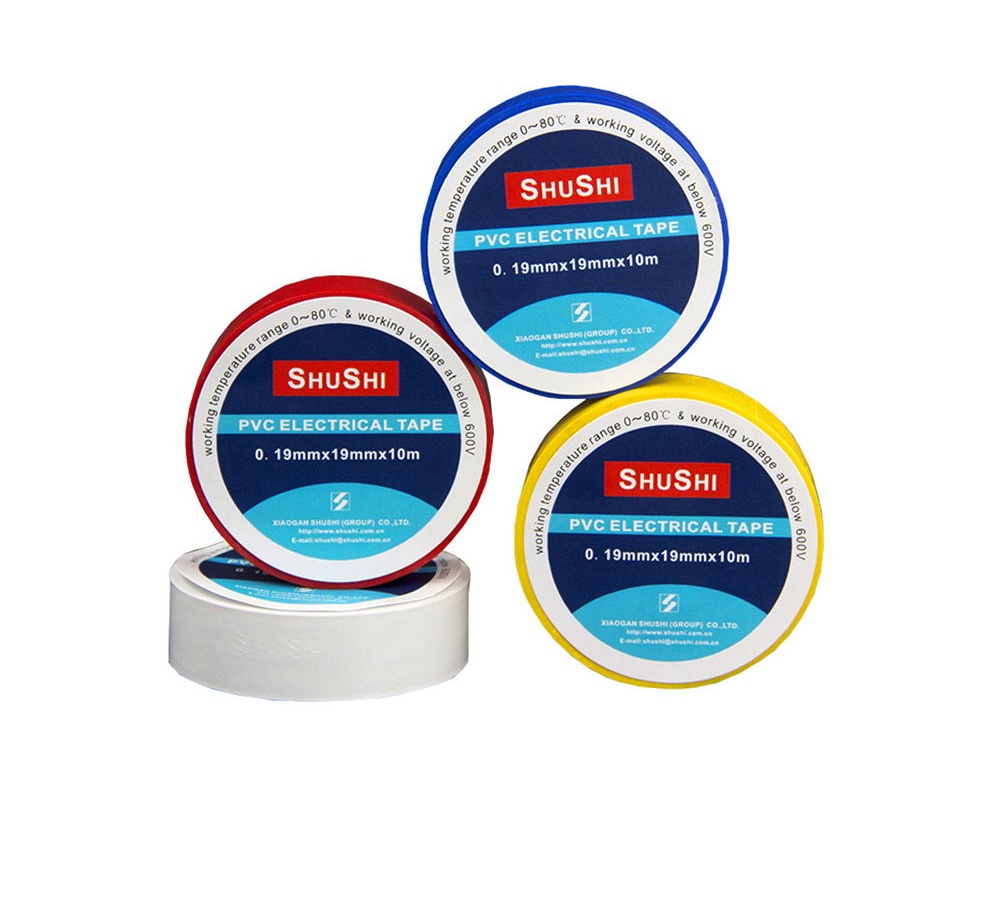

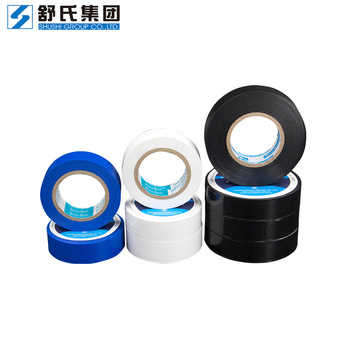

PVC Electrical Insulation Tape
This PVC electrical tape is designed for a wide range of applications, providing electrical insulation and mechanical protection. It is suitable for splicing wires, cable harnessing, and general insulation purposes.
Technical Specifications
Product Overview
Versatile Electrical Insulation
This premium PVC electrical tape provides excellent insulation, mechanical strength, and superior adhesion for professional wire and cable applications. Designed for safety and reliability, it is flame retardant and suitable for environments requiring strict fire prevention. With high flexibility and conformability, it ensures a secure, long-lasting bond in temperatures ranging from 0°C to 80°C.
Technical Specifications
Performance Metrics
20 N/cm
Tensile Strength
150 %
Elongation
40 kV/mm
Electrical Strength
Detailed Properties (Model 2130)
| Property | Value |
|---|---|
| Thickness | 0.13 mm |
| Tensile Strength | 20 N/cm |
| Elongation | 150% |
| Electrical Strength | 40 kV/mm |
| Peel Adhesion | 1.8 N/cm |
General Information
Operating Limits
- Max Voltage: 600V
- Temperature Range: 0°C to 80°C
- Optimal Installation Temperature: Above 10°C
Standard Lengths
- 5m
- 10m
- 15m
- 20m
- 33m
- Colors
- BlackWhiteBlueGreenRedYellow
