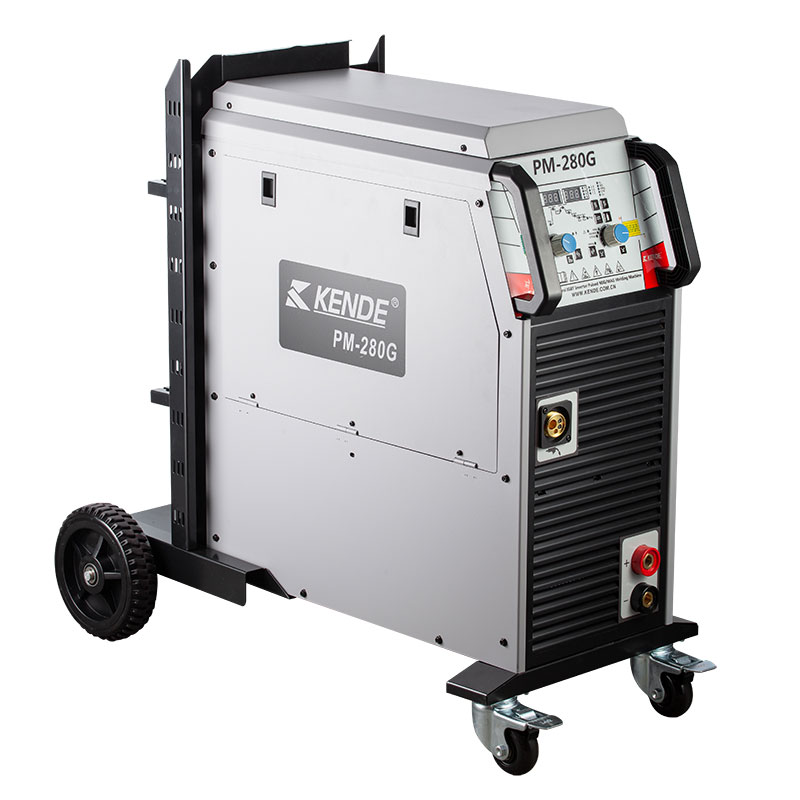

Pulse MIG Welding Machine
This pulse MIG welding machine uses IGBT switches and inverter control technology. It supports single pulse and DC MIG/MAG welding, with automatic protection against over-current and over-heating.
Technical Specifications
Product Overview
Industrial Pulse MIG/MAG Welding Solution
This advanced pulse MIG welding machine utilizes powerful IGBT and inverter control technology alongside precise PWM modulation. It is designed for high-quality welding across various metals including carbon steel, stainless steel, and aluminum alloys, offering excellent arc characteristics and reduced heat input. With integrated synergetic control and energy-saving capabilities, it provides professional-grade results while maintaining high efficiency in industrial environments.

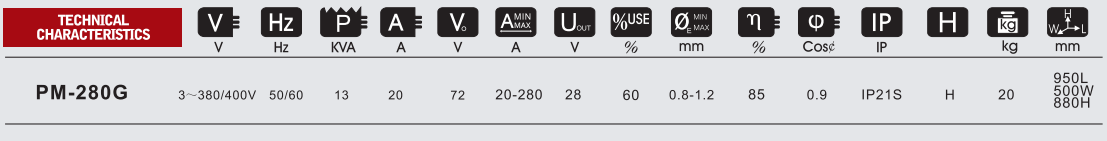

Technical Specifications
Performance Metrics
280 A
Max Welding Current
60 %
Duty Cycle
13 KVA
Input Power
85 %
Efficiency
Electrical Characteristics
| Parameter | Value |
|---|---|
| Input Voltage | 3~380/400V |
| Frequency | 50/60 Hz |
| Open Circuit Voltage | 72 V |
| Power Factor | 0.9 |
Capabilities
Compatible Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Aluminum
- Aluminum Alloy
- Welding Modes
- Pulse MIGDC MIGMAGMMA2T/4TSpot Welding
Operational Features
Safety & Protection
Over-current ProtectionOver-heat ProtectionMoisture-proofAnti-corrosionAnti-vibrationAnti-conductive dust
Physical Specifications
Dimensions & Weight
- Weight: 20 kg
- Dimensions: 950 x 500 x 880 mm
- Max Wire Capacity: 15 kg
