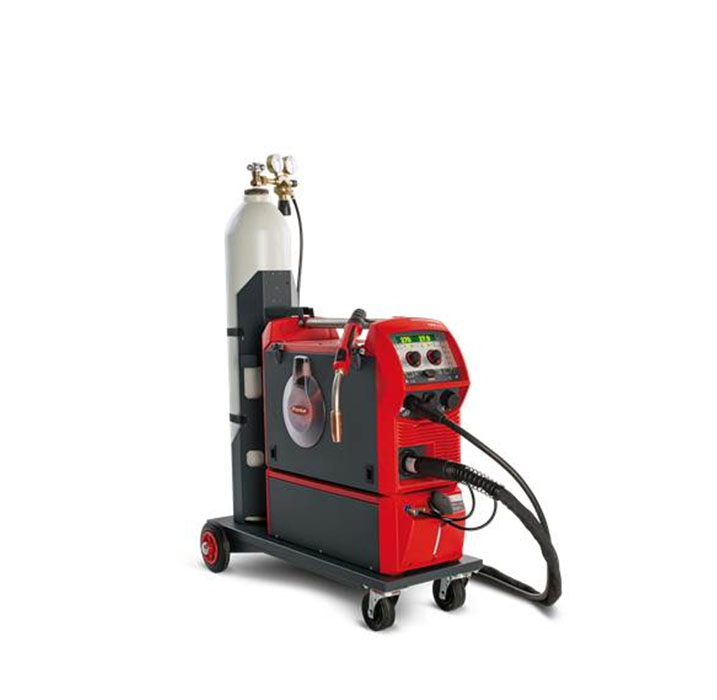

Automatic Arc MIG MAG Welding Machine
This automatic welding machine supports arc, MIG, and MAG welding processes. It is designed for industrial applications, offering precise control and reliable performance.
Technical Specifications
Overview
High-Performance Intelligent Welding System
The TPS/i is a versatile, all-round automatic welding solution designed for professional MIG/MAG, TIG, and manual electrode welding. It offers a range of current options from 320A up to 600A, featuring a completely redesigned architecture to optimize welding performance and human-machine interaction. This system is built for the future of industrial welding, ensuring fast integration with robotic systems and flexible process adjustments to meet individual production needs.
- Supported Processes
- MIGMAGTIGArc WeldingManual Electrode
Key Performance Metrics
Available Current Ratings
320 A
Standard
400 A
Heavy Duty
500 A
Industrial
600 A
High Power
Technical Specifications
Electrical Input Data
| Parameter | Value |
|---|---|
| Input Voltage | 3 x 400V |
| Voltage Tolerance | +15% / -15% |
| Power Frequency | 50 / 60 Hz |
| Power Fuse Protection | 16 A |
| Power Factor | 0.99 |
Working Voltage Ranges
| Process | Voltage Range |
|---|---|
| MIG/MAG | 14.2 - 27.5 V |
| TIG | 14.1 - 20.8 V |
| Manual Electrode | 20.4 - 30.8 V |
| Open Circuit Voltage | 57 V |
Input Current
- Maximum Effective: 9.7 A
- Rated Maximum: 15.3 A
Smart Features
Advanced System Capabilities
- WELDCUBE: Central server for linking and monitoring all power supplies
- Live Update: Centralized software upgrades without hardware changes
- Intelligent Identification: Automatic recognition of torch and connection components
- Communication Programming: Graphical UI for intuitive robot-welder interaction
- Robotic Compatibility: Fast integration with various robot manufacturers
Protection & Cooling
Ingress Protection
IP 23
- Cooling Type
- AF (Forced Air)
