Puffed Snack Extrusion Machine
This machine is designed for the automated production of puffed snacks. It utilizes an extrusion system to shape and process ingredients into various snack forms.
Technical Specifications
Overview

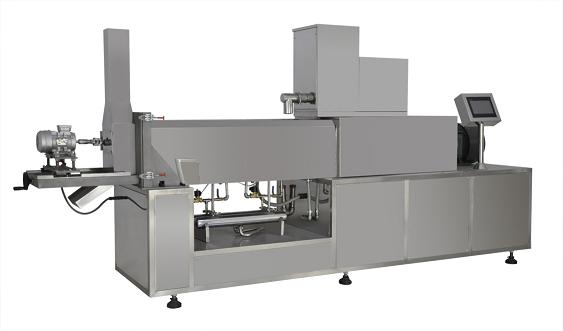

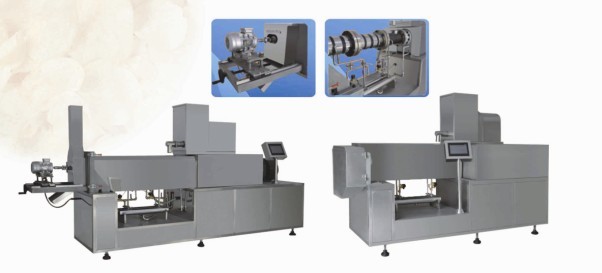

Industrial Puffed Snack Extrusion System
This high-capacity double screw extrusion machine is engineered for the professional manufacturing of various puffed snacks. Built with durable stainless steel, it ensures high hygiene standards and longevity for continuous operation in food processing facilities. The integrated system combines material feeding, precise extrusion, and thermal control to produce snacks with consistent texture and quality.
Technical Specifications
Production Capacity
500 kg/h
Max Output
120 kW
Max Power

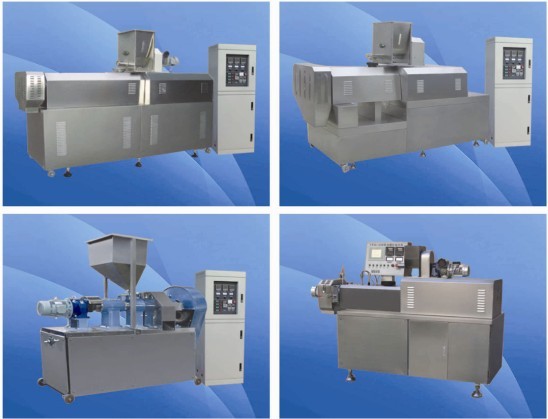

Model Comparison Table
| Model | Installed Power (kW) | Main Motor (kW) | Output (kg/h) |
|---|---|---|---|
| LD85-II | 120 | 90 | 300-500 |
| LD70-IV | 65 | 30 | 150-200 |
| LD65-II | 35 | 22 | 120-150 |
| LD600-I | 20 | 11.25 | 100 |
| LD32 | 12 | 5.5 | 10-15 |
Features
System Highlights
- Double screw extrusion technology
- Stainless steel construction for hygiene
- Adjustable feet for industrial stability
- Integrated rotary cutting and heating systems
- Advanced control panel for parameter adjustments
Application
- Suitable Applications
- Pet FoodProtein SnacksFrying ProductsNon-Frying Snacks
