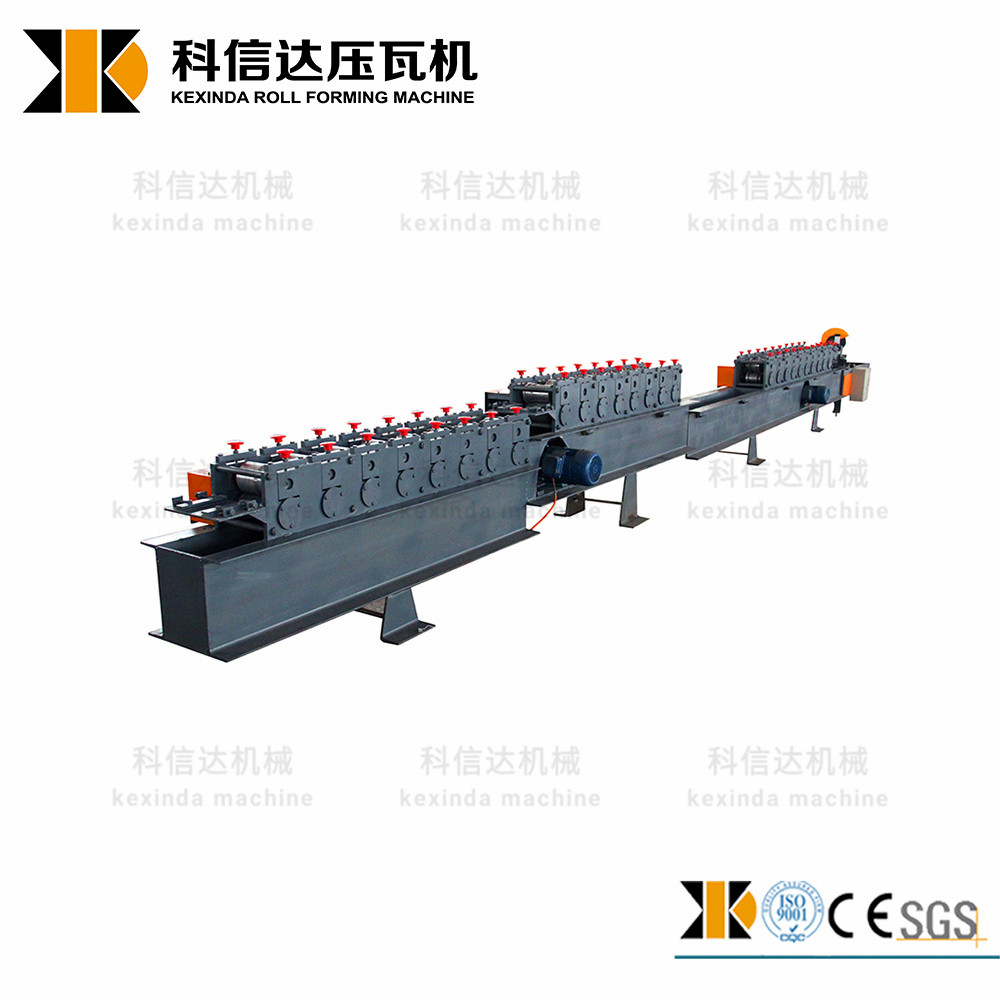

PU Foam Rolling Shutter Slat Forming Machine

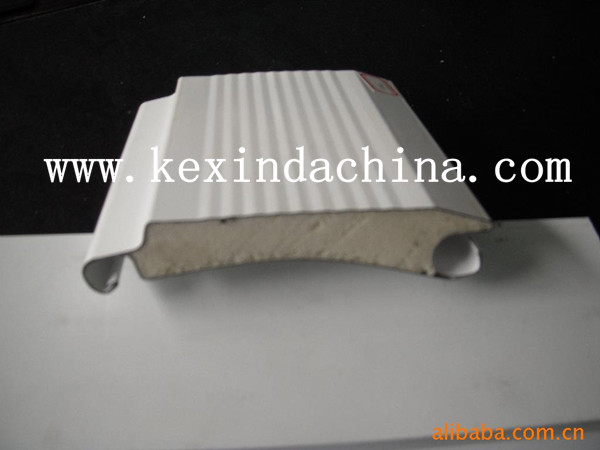

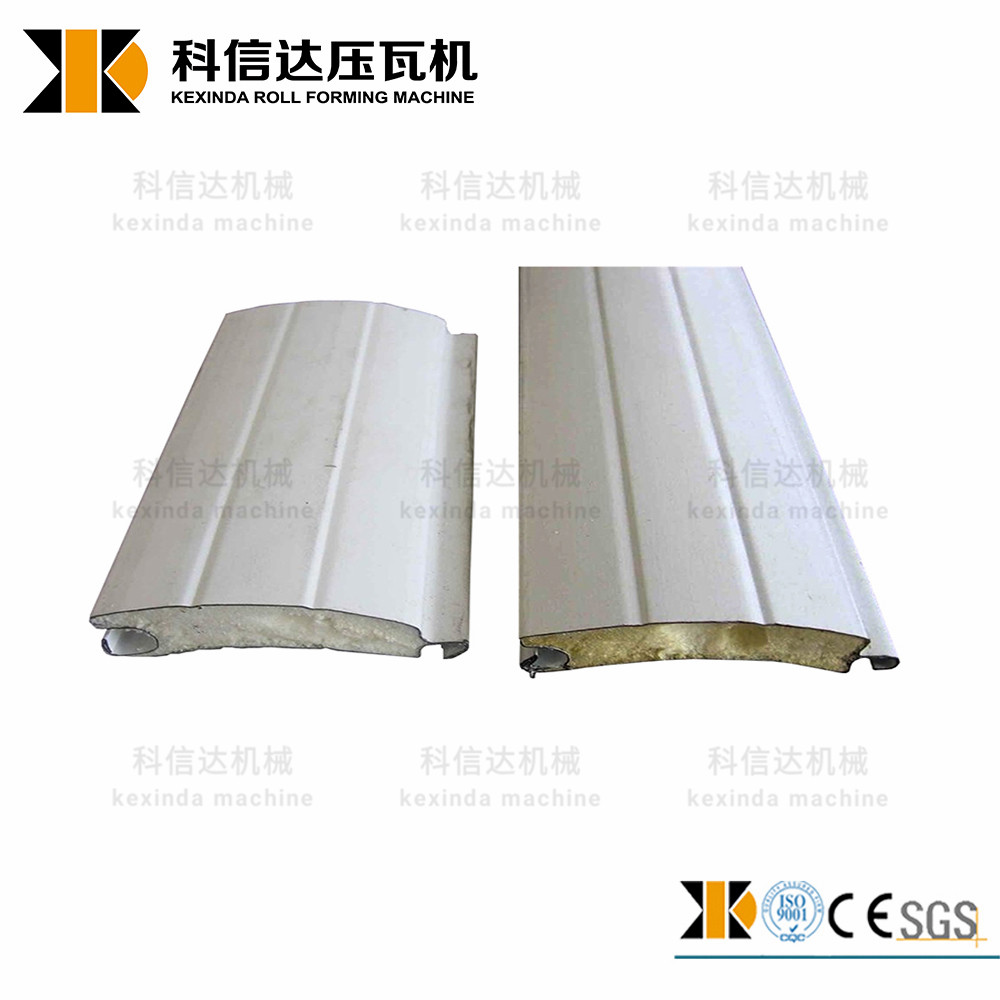

This machine produces rolling shutter slats with integrated PU foam filling. It shapes metal strips into the desired profile while injecting polyurethane foam for enhanced insulation and structural integrity.
Technical Specifications
Overview
Professional PU Foam Shutter Slat Production
This automated rolling shutter slat forming machine is engineered for the high-volume production of insulated door components. By integrating metal roll forming with a precision PU foam injection system, the line ensures structural integrity and enhanced thermal efficiency. Designed for durability and stability, this equipment provides a reliable solution for manufacturers aiming to deliver high-quality, professional-grade rolling shutter slats.
Technical Parameters
Production Speed
12 m/min
Maximum Output
Material Specifications
- Aluzinc
- Galvanized steel
- Colored coil
- Plate Thickness
- 0.3-0.8mm
- Roller Steps
- 10
Mechanical Components
- Main Reducer Power
- 4 kW
- Hydraulic System Power
- 3 kW
- Active Shaft Diameter
- 50 mm
Control & Features
Control System
PLC ControlHigh PrecisionNoise Reduction
Support & Warranty
- Warranty Coverage
- 12 Months
