PTO Tractor Flail Mower with 3-Point Linkage
This PTO tractor flail mower utilizes sturdy toothed belts for efficient transmission. It features a 3-point linkage and requires 15-35hp tractors.
Technical Specifications
Overview
Versatile PTO Tractor Flail Mower

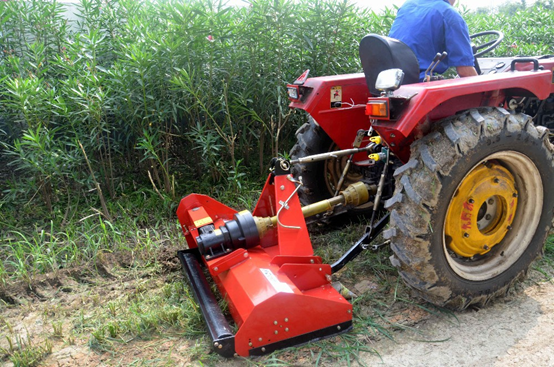

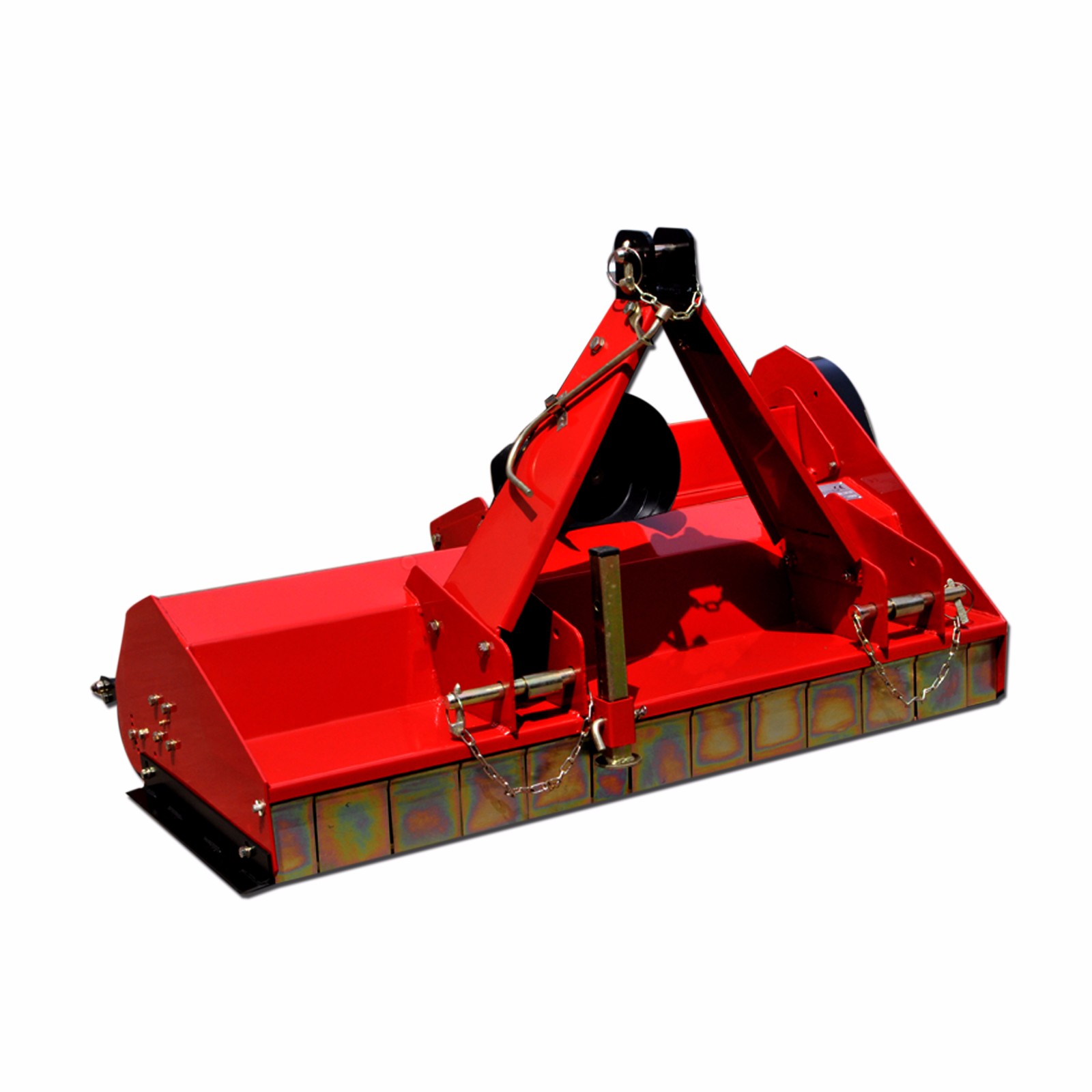

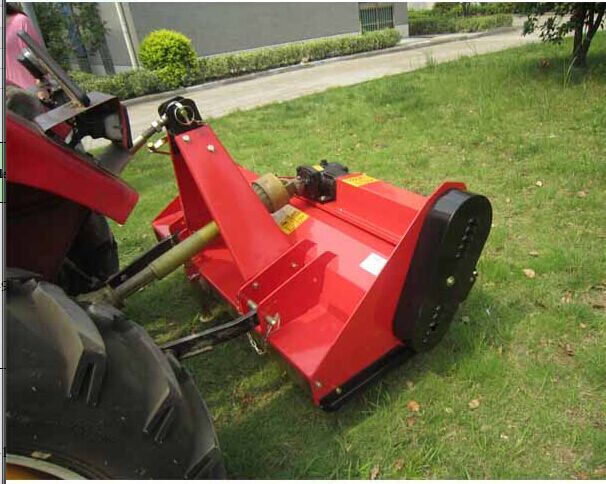

This heavy-duty flail mower is designed for tractors with a Category I 3-point linkage, making it ideal for maintaining fields, orchards, and roadside verges. It features a robust gravity-cast iron gearbox and sturdy toothed belt transmission for reliable power delivery. Equipped with versatile Y-shape blades, it efficiently cuts and mulches grass, weeds, and light brush while providing a clean, even distribution of mulch.
Performance & Power
Performance Metrics
540 r/min
PTO Input Speed
15 HP
Min Power
35 HP
Max Power
Technical Specifications
Model Specifications Comparison
| Model | Cutting Width (mm) | Weight (kg) | Y-Blades (qty) | Power Req. (HP) |
|---|---|---|---|---|
| EFD-95 | 950 | 130 | 60 | 16-20 |
| EFD-105 | 1,050 | 145 | 72 | 20-25 |
| EFD-115 | 1,150 | 155 | 78 | 20-30 |
| EFD-125 | 1,250 | 170 | 84 | 20-30 |
| EFD-135 | 1,350 | 175 | 84 | 20-30 |
Construction & Design
Key Features
- Transmission via sturdy toothed belts
- Gravity casting iron gearbox for enhanced durability
- Adjustable rear roller for variable mowing height
- Firm and stable frame structure
- High-quality welding processes
- Front protection guards to prevent debris splashing
- Blade Options
- Y-shape bladesHammer bladesVertical bladesDouble blades
Compatibility
Hitch System
Cat. I Universal3-Point Linkage
