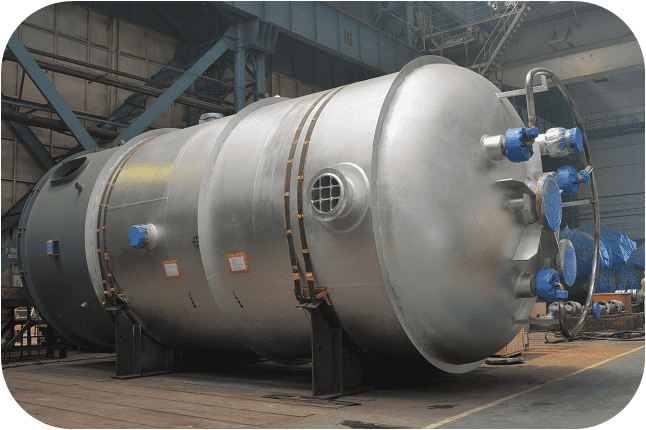

PTA Crystallization Reactor
This large-scale reactor is designed for PTA (Purified Terephthalic Acid) crystallization processes. It facilitates controlled cooling and crystallization of PTA slurry with its multi-compartment design.
Technical Specifications
Product Overview
Industrial PTA Crystallization Reactor
This large-scale crystallization reactor is engineered for the demanding requirements of Purified Terephthalic Acid (PTA) production. Designed to handle extreme thermal and pressure conditions, it features a multi-compartment internal structure that facilitates controlled cooling and efficient crystallization of PTA slurry. Its high-grade construction and corrosion-resistant materials ensure longevity and reliability in complex petrochemical processing environments.
Technical Specifications
Operating Temperatures
- 225°C
- 245°C
- 269°C
Available Dimensions
| Size Specification |
|---|
| Ф4400×11250×98+3 |
| Ф4200×10000×58+3 |
| Ф3800×9890×34+3 |
Equipment Weight
132 T
Max Weight
70 T
Medium Weight
40.9 T
Min Weight
- Material Composition
- 16MnR + 00Gr19Ni10
- Design Pressure
- 5.2 MPa3.47 MPa2.21 MPaFull Vacuum
