Pressure Relief Safety Valve
This pressure relief safety valve protects plumbing systems from overpressure. It is designed to automatically release pressure when it exceeds a set limit, preventing damage to pipes and equipment.
Technical Specifications
Product Overview
Professional Pressure Relief Solutions
This pressure relief safety valve is engineered for optimal performance in pressure-bearing containers such as water heaters and commercial water dispensers. Featuring a durable brass construction with a corrosion-resistant nickel-plated finish, it ensures long-term reliability and safety. Its unique patented design allows for easy, tape-free installation, significantly reducing maintenance time and preventing pipe blockages.

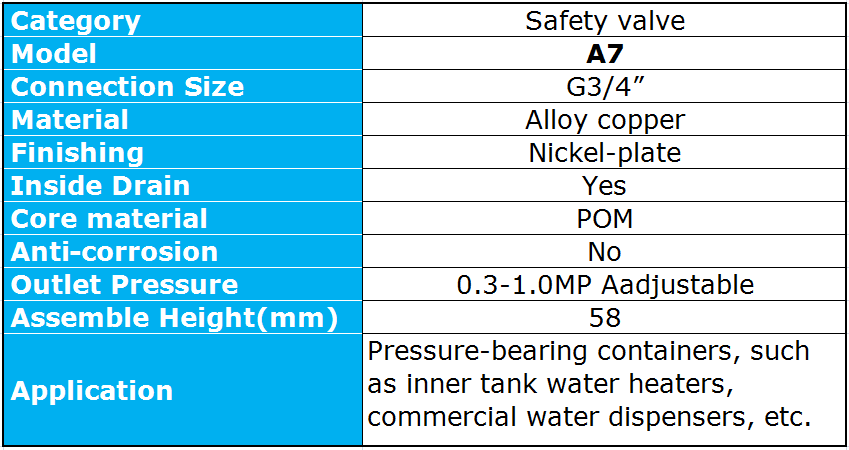

Technical Specifications
- Connection Size
- G3/4"
- Adjustable Outlet Pressure
- 0.3 - 1.0 MPa
- Assemble Height
- 58 mm
- Core Material
- POM
Material and Build
- Body Material
- Forged Brass (Alloy Copper)
- Surface Finishing
- Electroplated Nickel
Features
Core Functions
- Automatic pressure release
- Internal drainage system
- Manual testing lever for maintenance
- Key Features
- Pressure-proofExplosion-proofTape-free installationAnti-corrosionEasy to install
