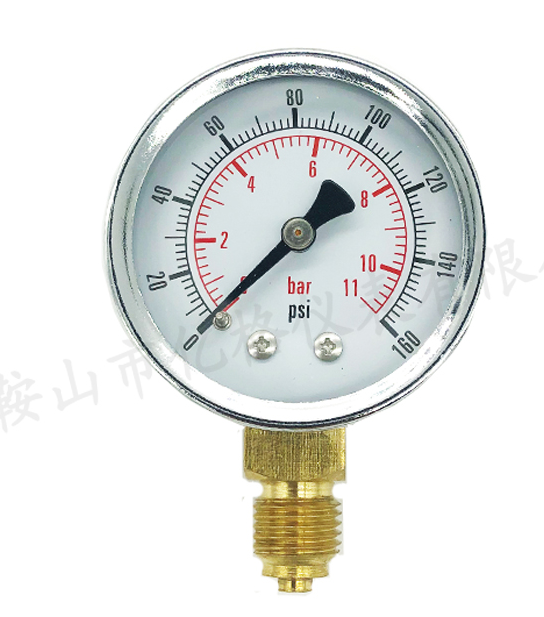

Pressure Gauge 0-11 bar / 0-160 psi
This pressure gauge measures pressure from 0 to 11 bar and 0 to 160 psi. It features a circular dial with clear markings and is suitable for pneumatic, hydraulic, and other pressure-sensitive systems.
Technical Specifications
Overview
Professional Pressure Gauge
This 63mm pressure gauge provides accurate and reliable measurement for pneumatic and hydraulic systems. Featuring a durable stainless steel, non-magnetic case and robust brass internals, it is designed for consistent performance in various industrial environments. The dual-scale display allows for simultaneous readings in both bar and psi, ensuring compatibility with international standards.
Technical Specifications
Pressure Range
11 bar
Max Pressure
160 psi
Max Pressure
Gauge Details
| Feature | Specification |
|---|---|
| Dial Size | 63mm |
| Accuracy | 2% |
| Lens Material | Acrylic |
| Connection Thread | 1/4'' BSPP |
| Connection Location | Back |
Construction & Materials
Case Features
- Non-magnetic housing
- Glycerine-ready design (not pre-filled)
- Build Materials
- Stainless Steel CaseBrass InternalsBrass ConnectionAcrylic Lens
