Product Overview

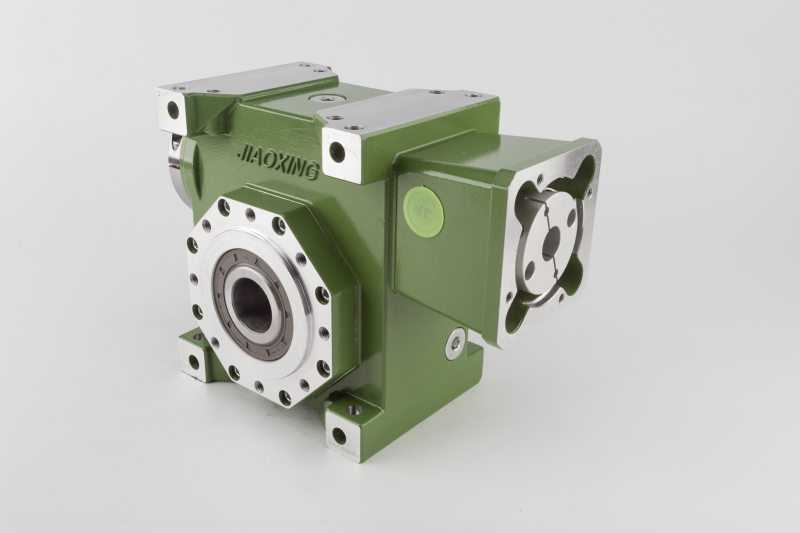

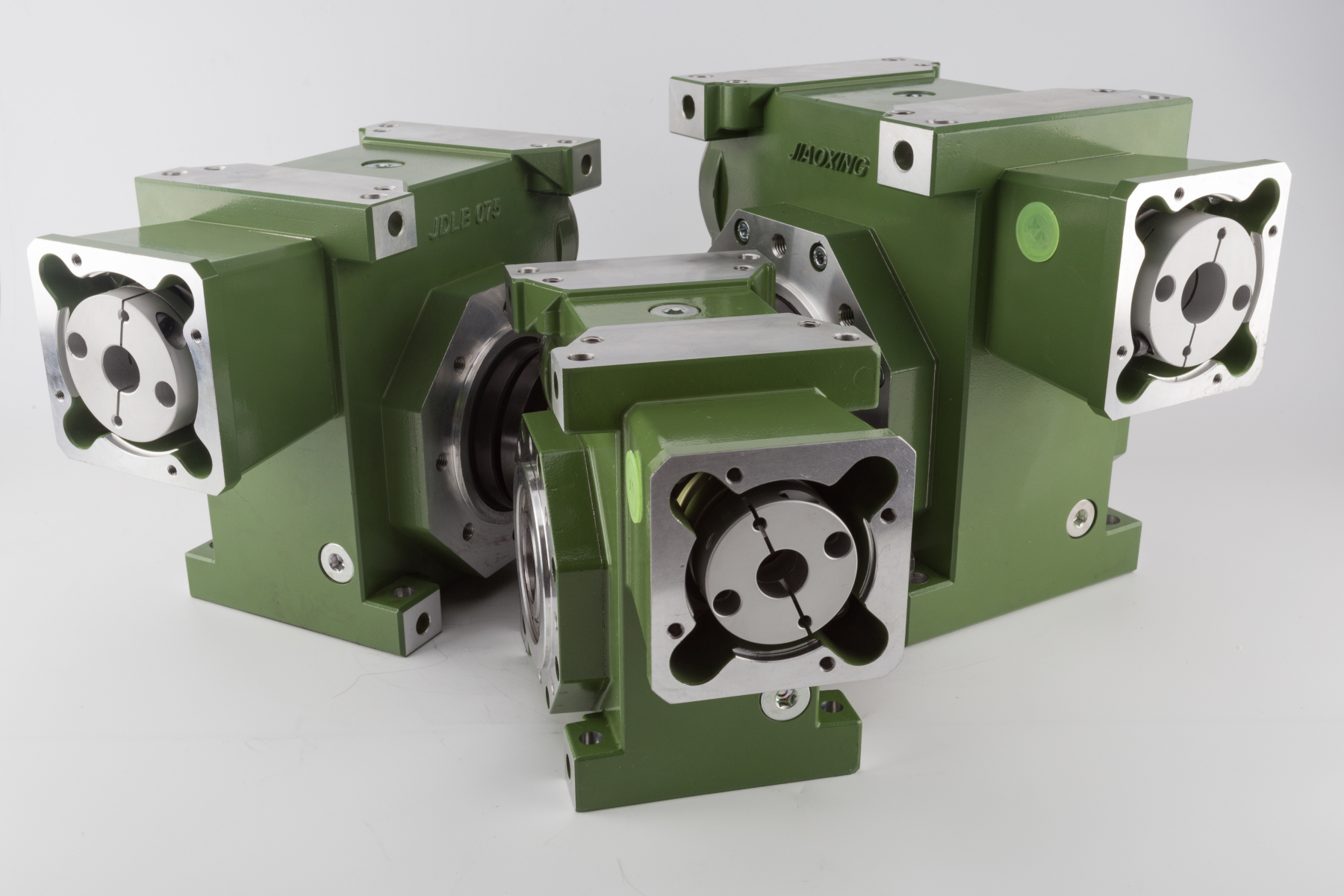

High Precision Worm Gear Reducer
The JDLB series high precision worm gear reducer is engineered as an ideal, cost-effective substitute for precision planetary gearboxes. Designed for demanding industrial applications, these units feature robust construction and precise gear meshing to ensure exceptional torque transmission. With a modular design that supports flexible mounting, these gearboxes are perfectly suited for integration into automation systems, robotics, and high-performance machinery.
Technical Specifications
Key Performance Features
- Minimal backlash for high precision
- Robust housing construction
- Precision-engineered worm and wheel gearing
- High-quality bearings for extended service life
- Flexible mounting options
Suitable Applications
Automation SystemsRoboticsMachine ToolsMotion Control Systems
Specific Model Identifiers
| Model Code | Configuration |
|---|---|
| JDLB 063 | JDLB63-30-C2 |
| JDLB 075 | Standard |
- Available Series Models
- JDLB 063JDLB 075
