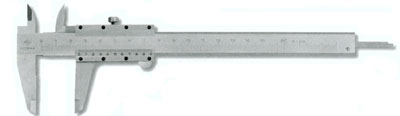

Precision Vernier Caliper for Dimensional Measurement
This precision measuring instrument accurately determines linear dimensions. It features a main scale and a sliding vernier scale, allowing for measurements with high resolution and accuracy.
Technical Specifications
Product Overview
Precision Dimensional Measurement
This versatile 4-way vernier caliper is designed for high-precision measurement of internal dimensions, external dimensions, and depth. Constructed from high-quality materials to ensure long-term durability, it serves as an essential tool for engineering, manufacturing, and quality control processes. Available in multiple size ranges and graduation options, it provides reliable accuracy for professional workshop environments.
Technical Specifications
Model Range Table
| Range | Graduation | Stainless Art. No. | Carbon Art. No. |
|---|---|---|---|
| 100mm | 0.02mm | V02-1011 | V02-1011C |
| 125mm | 0.02mm | V02-1021 | V02-1021C |
| 150mm | 0.02mm | V02-1031 | V02-1031C |
| 200mm | 0.02mm | V02-1041 | V02-1041C |
| 300mm | 0.02mm | V02-1051 | V02-1051C |
| 100mm | 0.02mm/0.001" | V02-1012 | V02-1012C |
| 125mm | 0.02mm/0.001" | V02-1022 | V02-1022C |
| 150mm | 0.02mm/0.001" | V02-1032 | V02-1032C |
| 200mm | 0.02mm/0.001" | V02-1042 | V02-1042C |
| 300mm | 0.02mm/0.001" | V02-1052 | V02-1052C |
Custom Graduation Options
- 0.05mm
- 0.05mm/1/128"
- Available Materials
- Stainless SteelCarbon Steel
