Precision Gear Motor with Metal Gearbox
This precision gear motor features a compact design and a robust metal gearbox. It is suited for applications requiring precise motion control and high torque at low speeds.

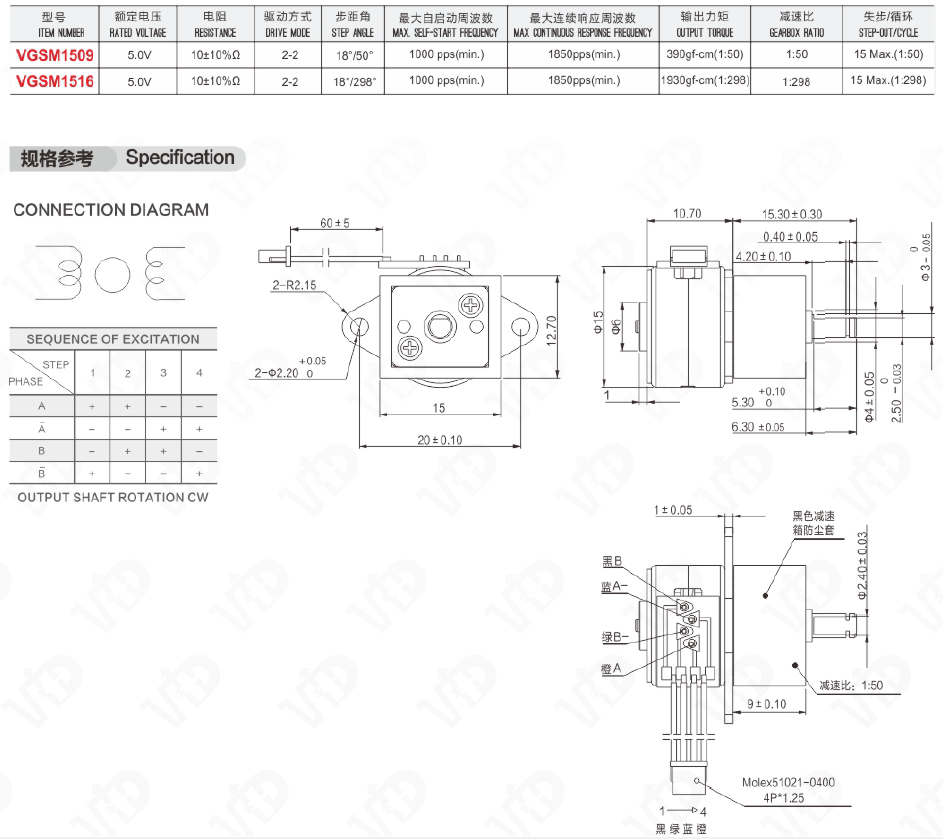

Technical Specifications
Product Overview
Precision Gear Motor Series
The VGSM015 series gear motors are engineered for applications requiring precise motion control and reliable performance. Featuring a robust metal gearbox and a compact design, these motors are ideal for systems demanding high torque at low speeds. Each unit comes equipped with a multi-colored wire harness and a standard Molex connector for seamless integration into electronic control circuits.
Electrical Specifications
- Rated Voltage
- 5 V
- Resistance
- 10 ± 10% Ω
- Drive Mode
- 2-2
Performance Metrics
Key Performance Metrics
1,000 pps
Max Self-Start Frequency
1,850 pps
Max Continuous Response
Model Comparison
Model Specifications
| Feature | VGSM1509 | VGSM1516 |
|---|---|---|
| Gearbox Ratio | 1:50 | 1:298 |
| Step Angle | 18°/50° | 18°/298" |
| Output Torque | 390 gf-cm | 1930 gf-cm |
| Step-out/Cycle | 15 Max. | 15 Max. |
Mechanical & Connectivity
- Connector Type
- Molex 51021-0400 (4P*1.25)
- Output Shaft Rotation
- Clockwise (CW)
- Key Features
- Metal GearboxCompact DesignHigh TorquePrecision Control
