Precision Gear Motor with Cylindrical Body
This precision gear motor features a compact design with a cylindrical motor body and integrated gearbox. It is suitable for applications requiring controlled rotational motion and torque.
Technical Specifications
Product Overview

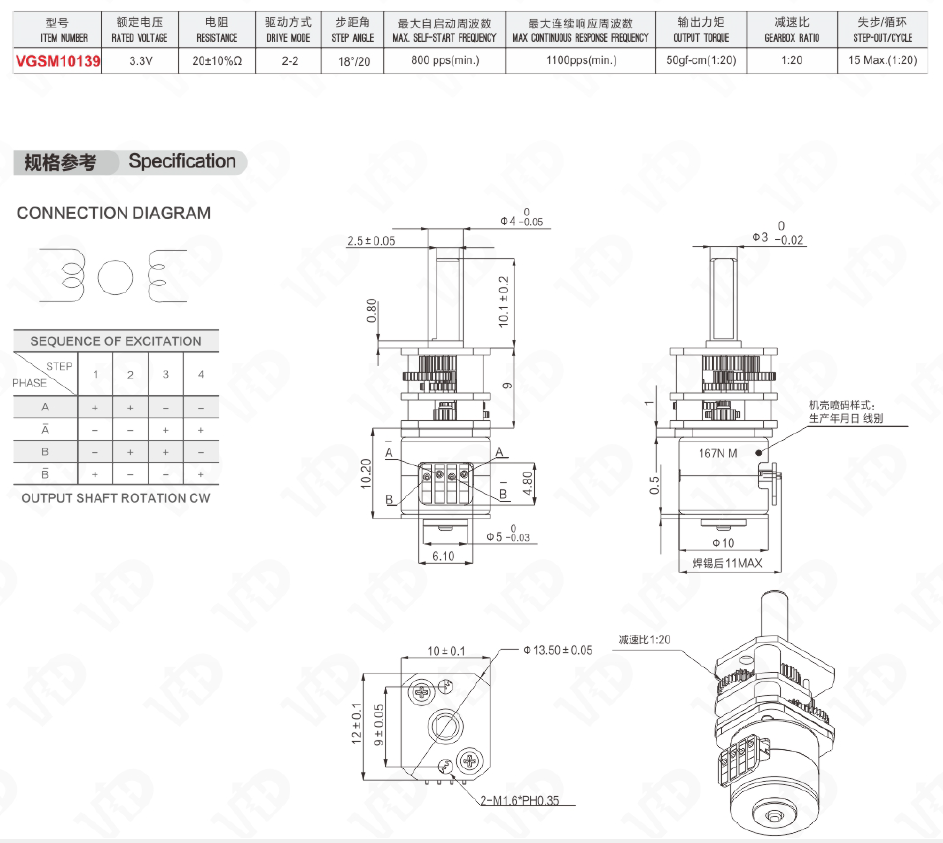

Precision Gear Motor VGSM10
This precision gear motor features a compact, cylindrical design with an integrated gearbox, making it an ideal solution for applications requiring controlled rotational motion and torque. Built with a robust metallic housing and durable brass gear components, it ensures reliable performance in demanding environments. The unit includes a standard shaft output for mechanical power transmission and an electrical connector on top for seamless integration into electronic circuits.
Electrical Specifications
Key Electrical Metrics
3.3 V
Rated Voltage
20 Ω
Resistance
800 pps
Max Self-Start Frequency
1,100 pps
Max Continuous Response Frequency
Performance & Mechanical
Performance Parameters
| Parameter | Value |
|---|---|
| Gearbox Ratio | 1:20 |
| Output Torque | 50 gf-cm |
| Step Angle | 18°/20 |
| Drive Mode | 2-2 |
| Step-out/Cycle | 15 Max. |
Construction
- Build Materials
- Metallic HousingBrass GearsCylindrical Body
