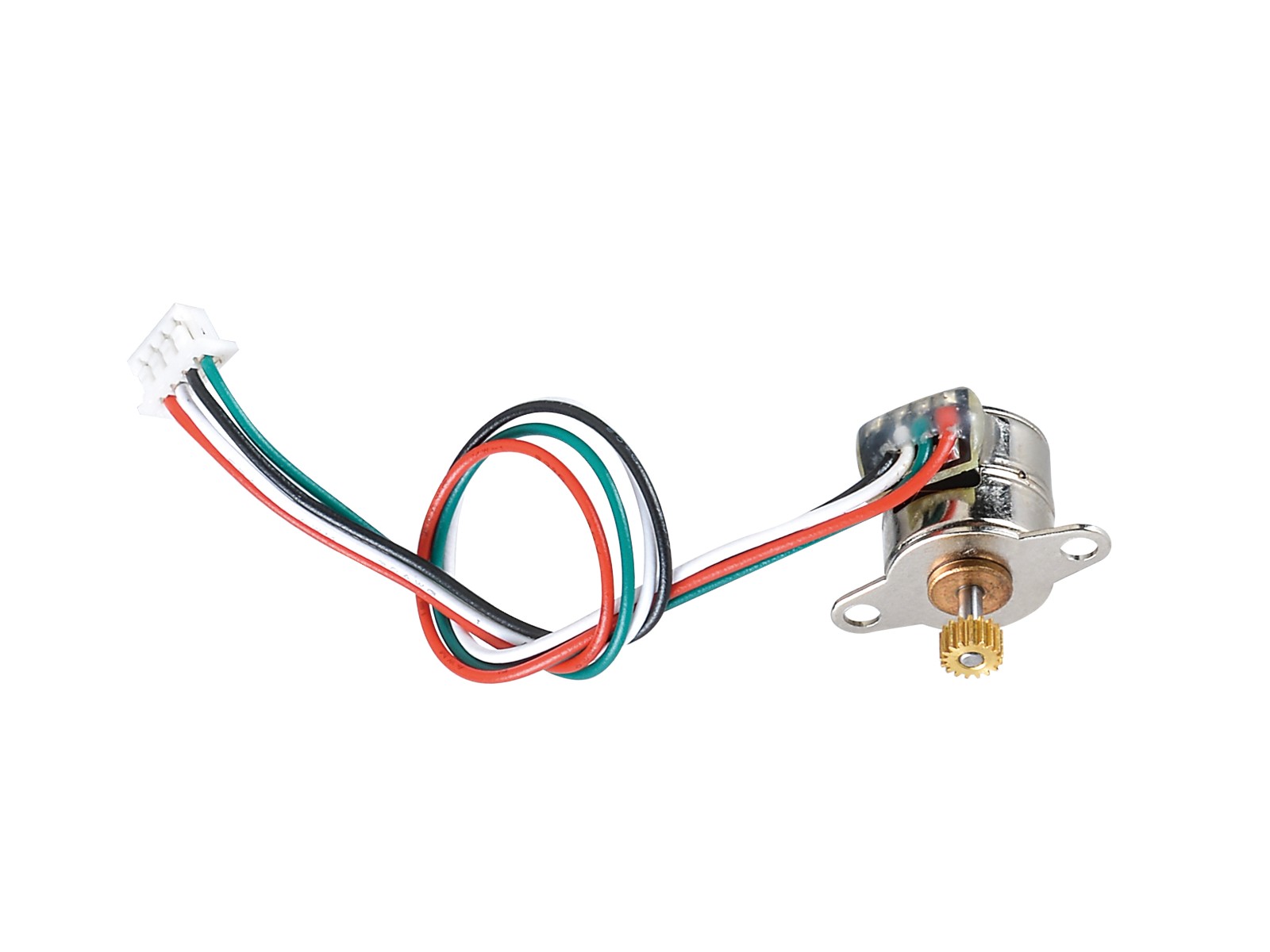

Miniature Stepper Motor with Connector
This miniature stepper motor is designed for precise control in automation applications. It includes a JST connector for easy integration and color-coded wires for simplified installation.
Technical Specifications
Overview
VSM10 Miniature Stepper Motor Series
The VSM10 series comprises compact, high-precision stepper motors engineered for demanding applications in robotics, automation, and small-scale mechanical systems. Available in multiple variants, these motors offer reliable performance with 18-degree step angles and 2-2 drive mode support. Designed for versatility, they feature integrated wiring harnesses with standard connectors and are optimized for stable motion control in constrained spaces.
Technical Specifications
Performance Matrix

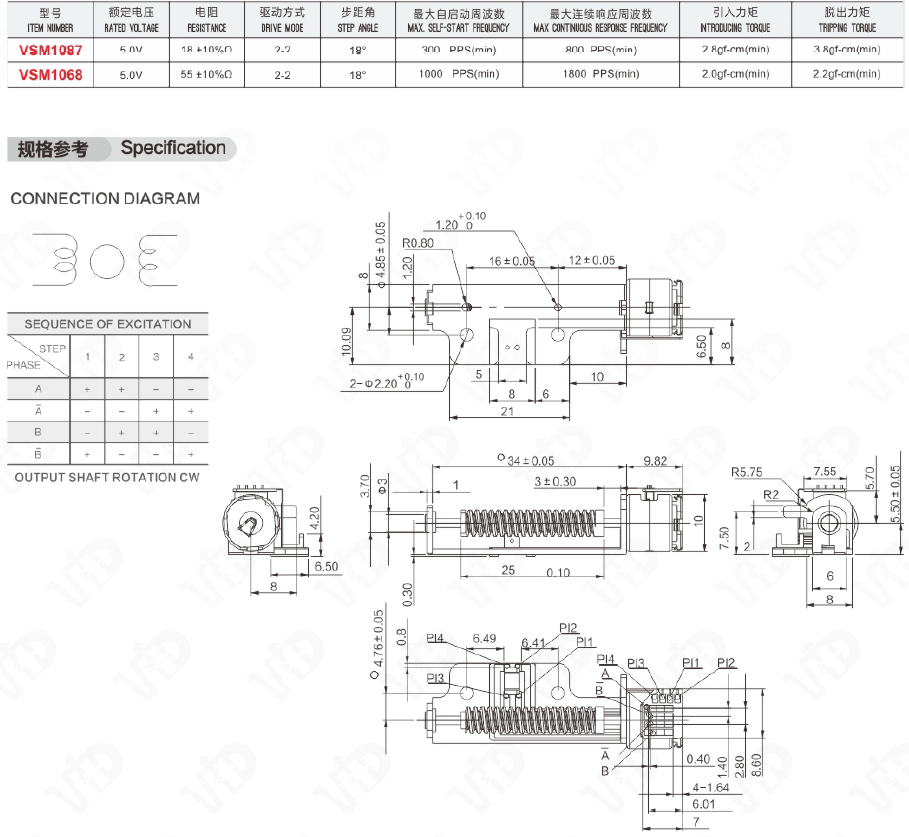

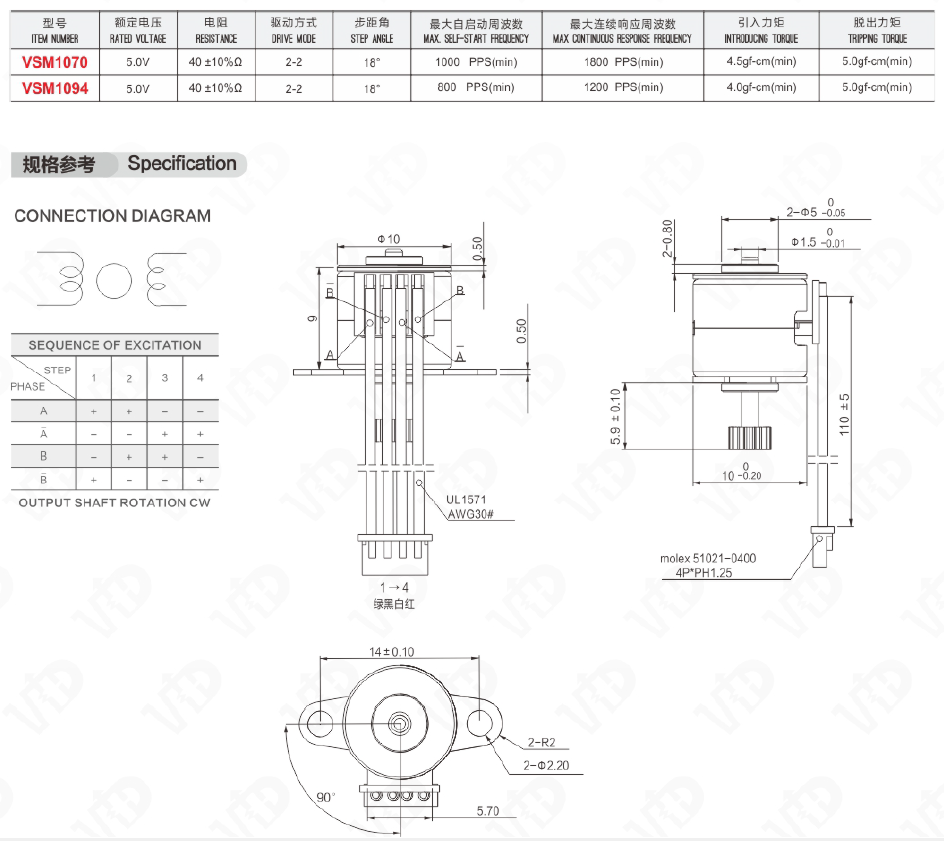

| Model | Resistance | Max Self-Start Freq | Max Response Freq |
|---|---|---|---|
| VSM1087 | 18 ±10%Ω | 300 PPS | 800 PPS |
| VSM1068 | 55 ±10%Ω | 1000 PPS | 1800 PPS |
| VSM1070 | 40 ±10%Ω | 1000 PPS | 1800 PPS |
| VSM1094 | 40 ±10%Ω | 800 PPS | 1200 PPS |
- Rated Voltage
- 5 V
- Step Angle
- 18 deg
Connectivity
Phase Excitation
- Phase A
- Phase Ā
- Phase B
- Phase B̄
- Wiring Standards
- UL1571 AWG30#4-Pin ConnectorMolex 51021-0400
