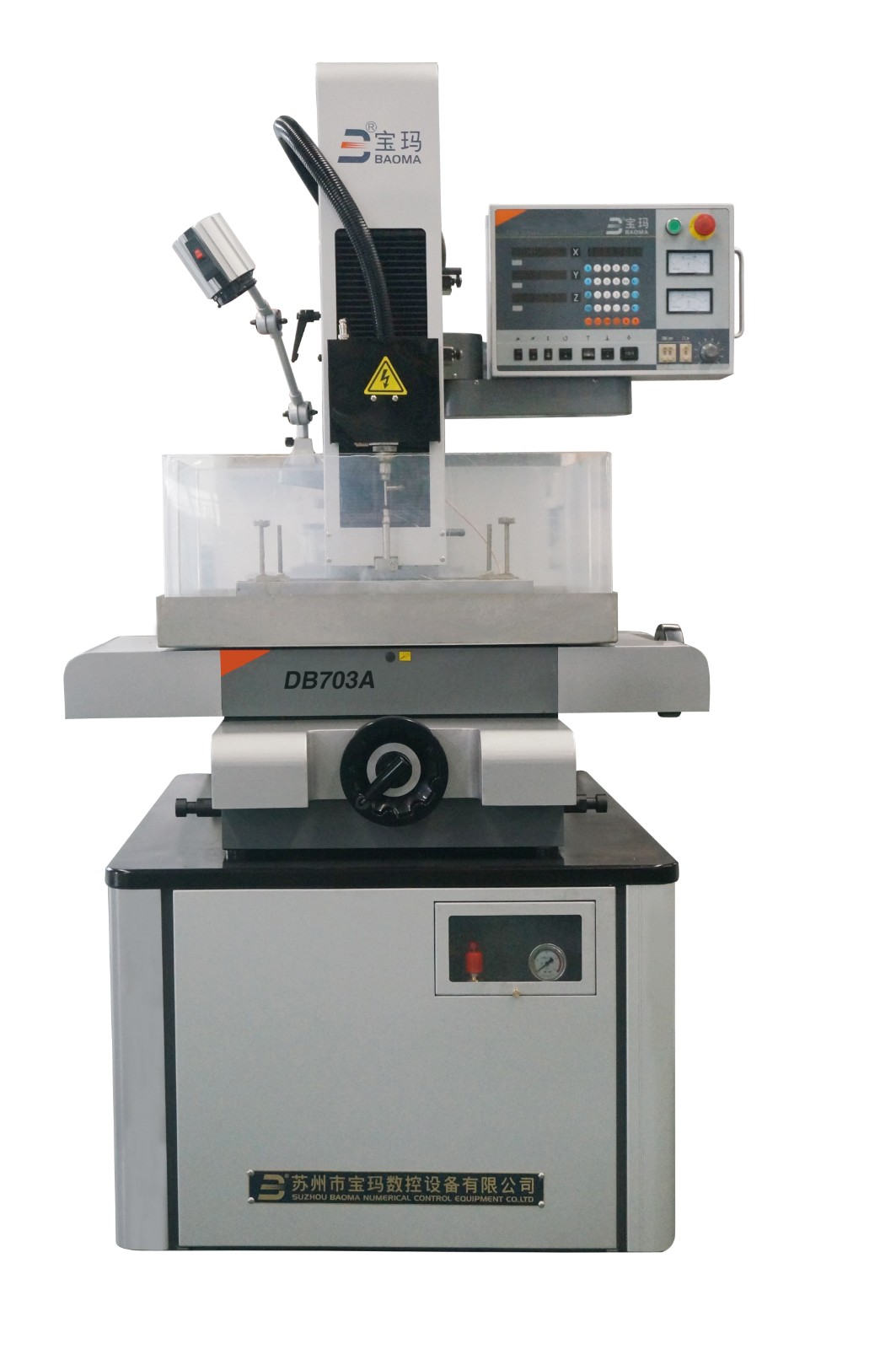

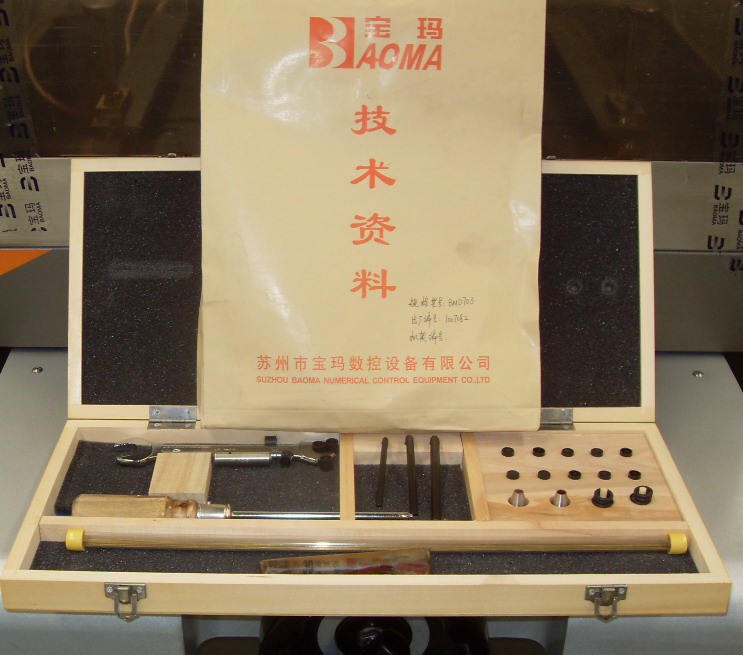

Precision EDM Drilling Machine
The EDM drilling machine is designed for precision electrical discharge machining. It creates small, accurate holes in various conductive materials, making it ideal for tool and die making, aerospace, and medical applications.
Technical Specifications
Overview
High-Precision EDM Drilling
This high-speed small hole drilling machine utilizes electrical discharge technology to create precise holes ranging from 0.2mm to 3.0mm in diameter. It is engineered for versatility, capable of machining stainless steel, hardened steel, copper, aluminum, and hard alloy steel with a depth-to-diameter ratio of up to 300:1. The system features advanced ZNC control and is ideal for complex applications including engine blades, spinneret plates, and hydraulic valves.
Technical Specifications
- Work Table Dimensions
- 310 x 486 mm
- Work Table Travel
- 300 x 400 mm
- Z-Axis Travel
- 300 + 320 mm
- Max Table Load
- 300 Kg
Performance Metrics
Performance Highlights
30 A
Max Current
60 mm²/min
Max Drilling Speed
300 mm
Max Depth
- Electrode Diameter Range
- 0.3 - 3.0 mm
System Requirements
- Max Power Consumption
- 3.5 KVA
- Voltage
- 220-415V / 50HZ
- Working Solution
- WaterSaponification
Physical Dimensions
- Machine Weight
- 700 Kg
- Machine Dimensions
- 1236 x 1025 x 1934 mm
- Packing Dimensions
- 1430 x 1340 x 2000 mm
Features
Key Capabilities
- Drill directly into bevel or curve surfaces
- Erode broken drill bits or taps without damaging original holes
- ZNC Control (Z-axis NC Control)
- Adjustable control box
- Marble working table
- Stainless steel fixtures
