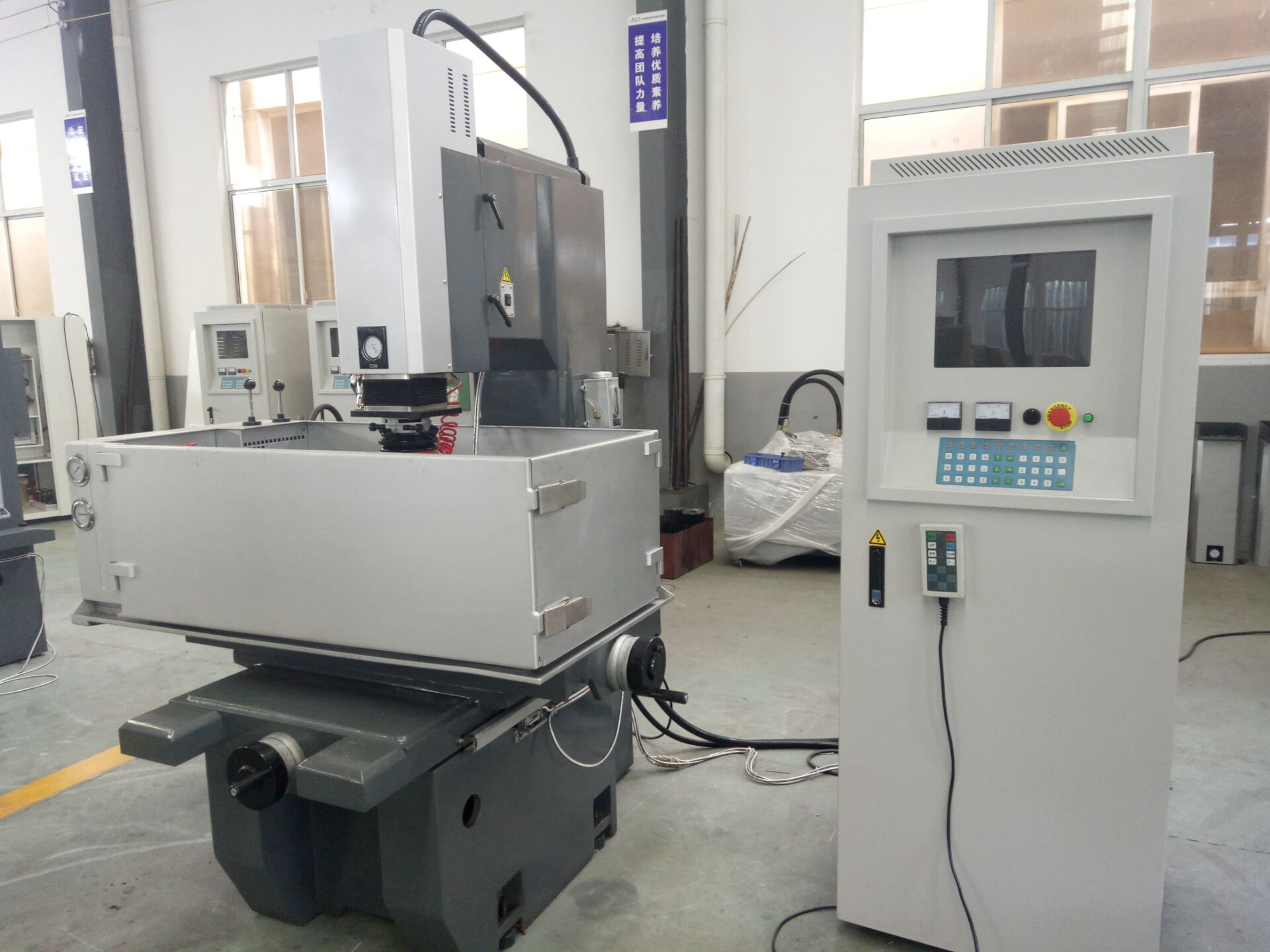

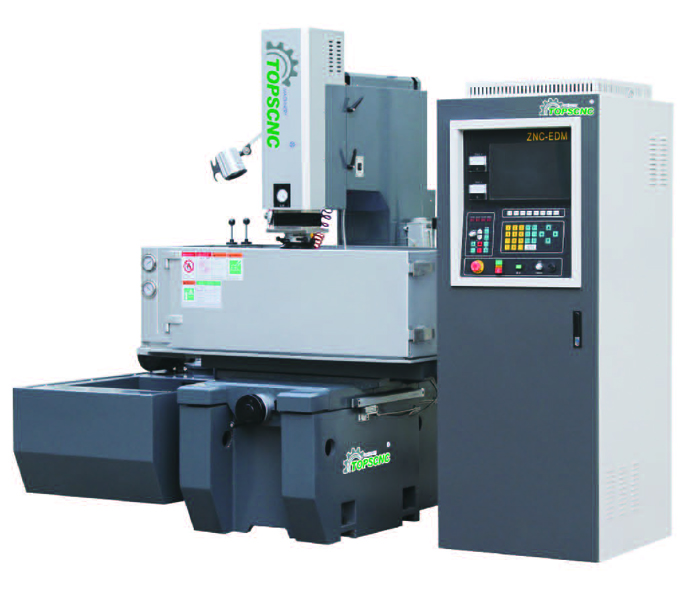

ZNC Die Sinking EDM Machine
The ZNC Die Sinking EDM is a precision machine tool that creates complex shapes and cavities in conductive materials. It utilizes electrical discharge machining to erode material through controlled sparks, providing high accuracy and fine surface finishes.
Technical Specifications
Product Overview
High-Precision Die Sinking EDM
This ZNC Die Sinking EDM machine is engineered for high-accuracy material erosion in conductive components. Utilizing advanced spark erosion technology, it provides superior control over complex cavity creation with surface roughness down to Ra 0.3 μm. The system is designed to streamline mold and die manufacturing workflows through programmable Z-axis control and high-efficiency pulse management.
Operational Performance
Performance Metrics
680 mm3/min
Max Work Efficiency
0.3 μm
Min Surface Roughness
0.2 %
Max Electrode Loss
Electrical Parameters
- Max working current: 50A (ZNC-50) / 75A (ZNC-75)
- Max power consumption: 6KVA (ZNC-50) / 12KVA (ZNC-75)
Capacity Specifications
Model Range Comparison
| Model | Worktable (mm) | X-Travel (mm) | Y-Travel (mm) | Z-Travel (mm) |
|---|---|---|---|---|
| DK7130 | 600*350 | 350 | 250 | 180 |
| DK7140 | 700*420 | 450 | 350 | 200 |
| DK7150 | 800*500 | 500 | 400 | 250 |
| DK7160 | 1000*600 | 650 | 550 | 250 |
Physical Attributes
Max Loading Weight
- Electrode: 50-250 kg
- Worktable: 350-3500 kg
