Technical Specifications
Product Overview
Precision Linear Motion Solutions

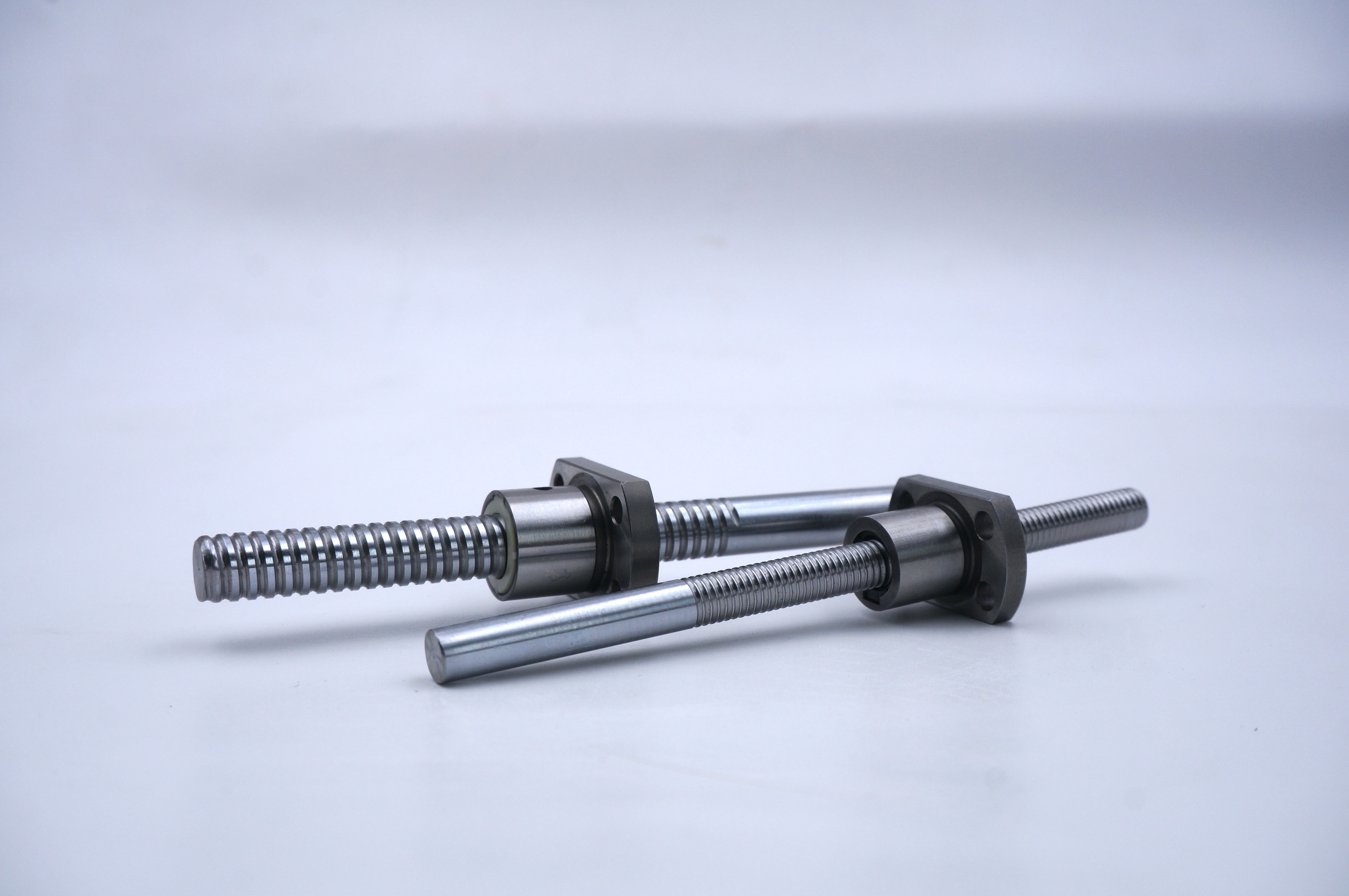

These high-precision ball screws are engineered to efficiently convert rotary motion into linear motion, making them essential components for industrial and precision machinery. Featuring a robust recirculating ball design, they ensure smooth operation and high load capacity for demanding applications. Our range supports diverse configurations, including JIS C0 grade ground screws and DIN 5 precision standards, to meet specific engineering requirements.
Technical Specifications
- Outer Diameter Range
- 4mm to 120mm
- Dm-N Value
- 220000
Standards & Precision
- Precision Standards
- JIS C0 GradeDIN 5 Grade
- Maximum Tolerance
- 23 μm
Key Features
Performance Highlights
220,000
Max Dm-N Value
120 mm
Max Diameter
4 mm
Min Diameter
Primary Applications
- Industrial Machinery
- Precision Machinery
- CNC Machines
- Automation Systems
- Robotics
