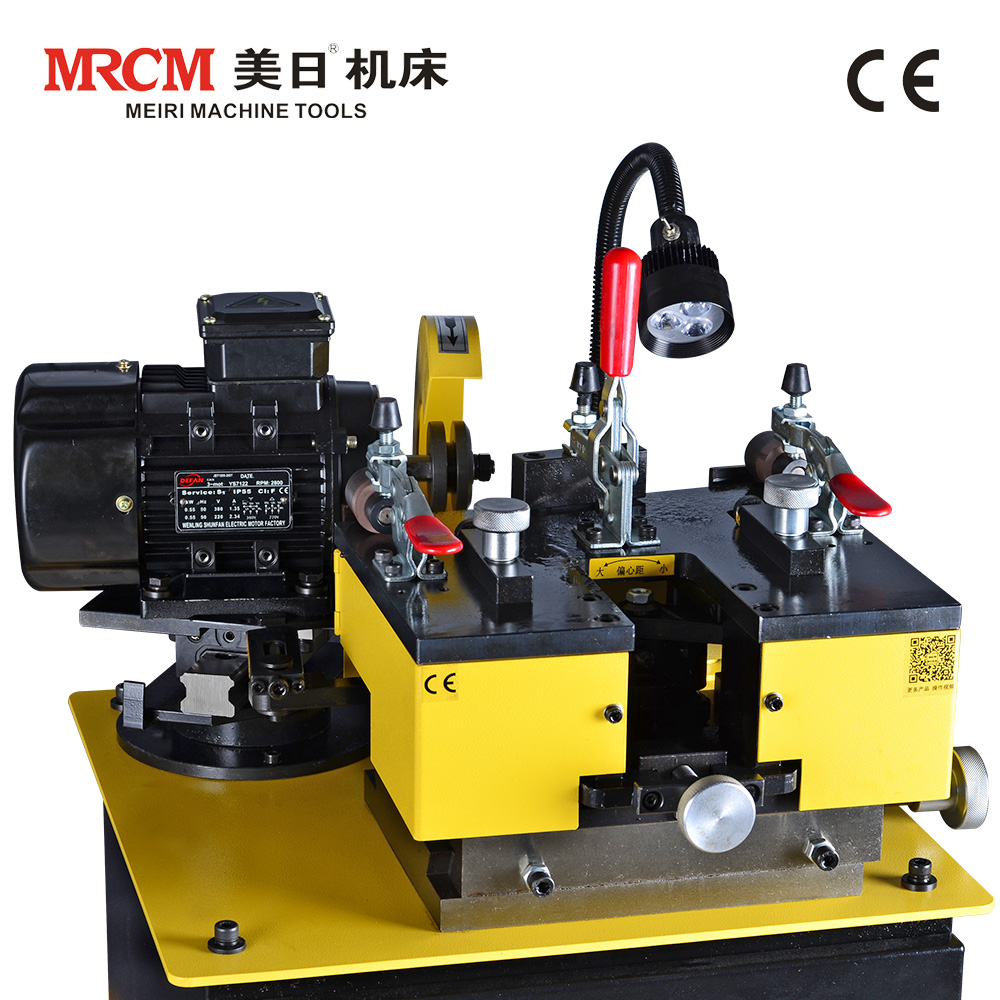

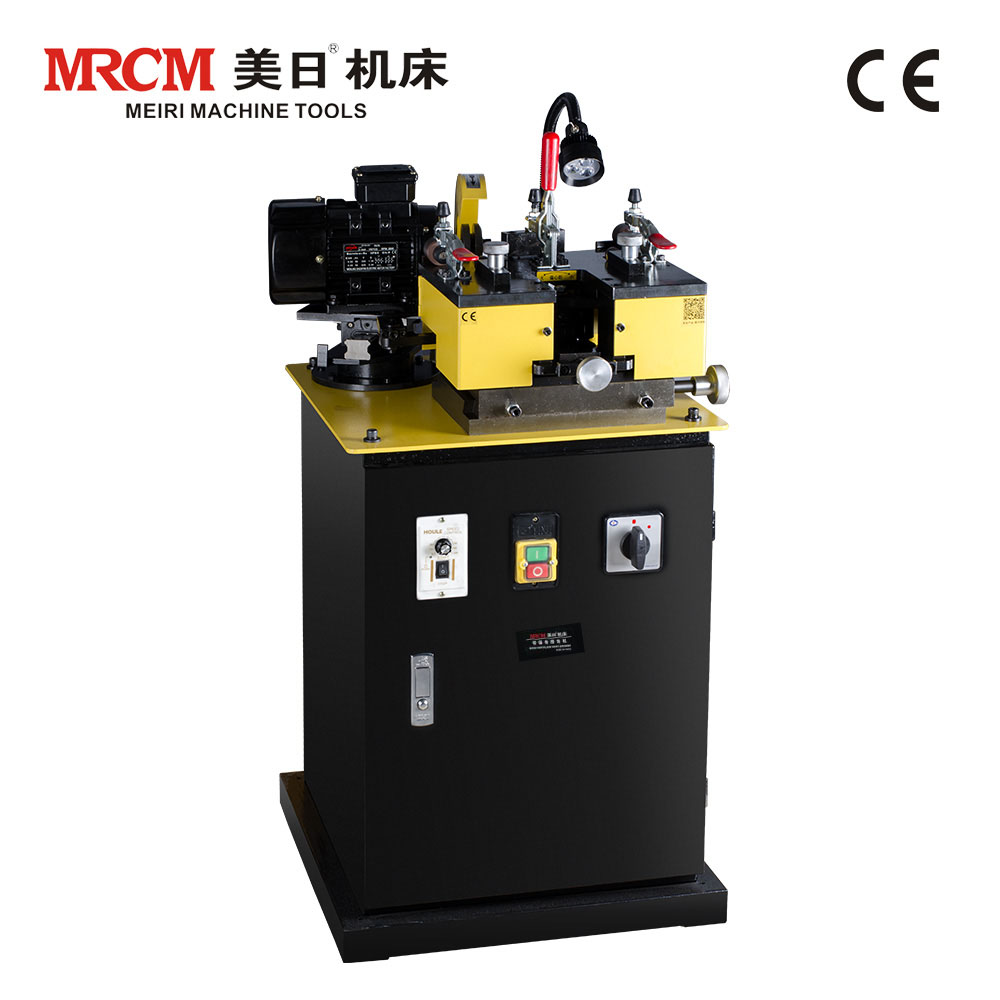

CNC Band Saw Blade Sharpener
This CNC band saw blade sharpener is designed for the precise sharpening of band saw blades. It utilizes a CNC control system to automate the sharpening process, ensuring accuracy and consistency.
Technical Specifications
Overview
Precision Band Saw Blade Maintenance
This automatic sharpening machine is engineered for the efficient processing of bi-metal and woodworking saw blades. It is designed to rapidly sharpen the front face of teeth, while also polishing the tooth flank, back, and throat for optimal cutting performance. With its compact footprint and simple adjustment structure, it provides a reliable solution for maintaining saw blades with variable tooth configurations.
Technical Specifications
Machine Specifications
| Parameter | Value |
|---|---|
| Model | MR-S380 |
| Grinding Wheel Diameter | 150 mm |
| Motor Power | 550 W |
| Spindle Speed | 2800 rpm |
| Motor Adjustment Range | 0°-360° |
| Dimensions | 60 x 50 x 110 cm |
| Weight | 110 kg |
Performance & Compatibility
Key Performance Metrics
60 mm
Max Blade Width
30 mm
Max Teeth Space
60 teeth/min
Max Feed Speed
- Supported Tooth Patterns
- 2/33/44/6
Electrical Requirements
Power Configuration
- 380V/220V
- 50Hz
- 3 Phase
Standard Equipment
Included Accessories
- Grinding wheel (2 pcs)
- Diamond pen (1 pc)
Compliance
Certifications
CEISO 9001
