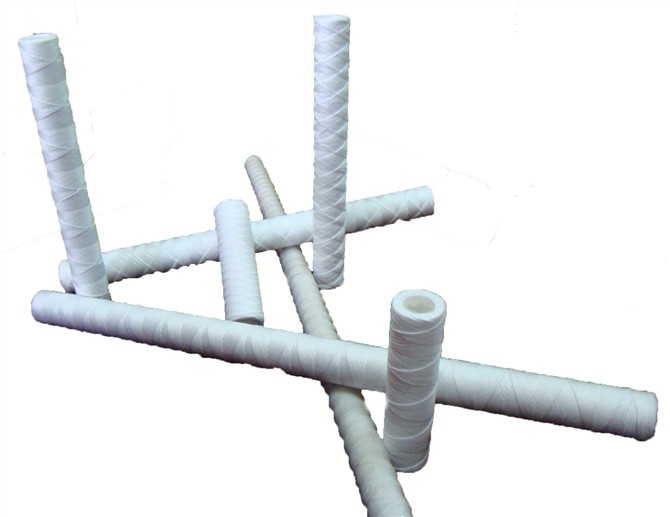

PP Spun String Wound Filter Cartridge

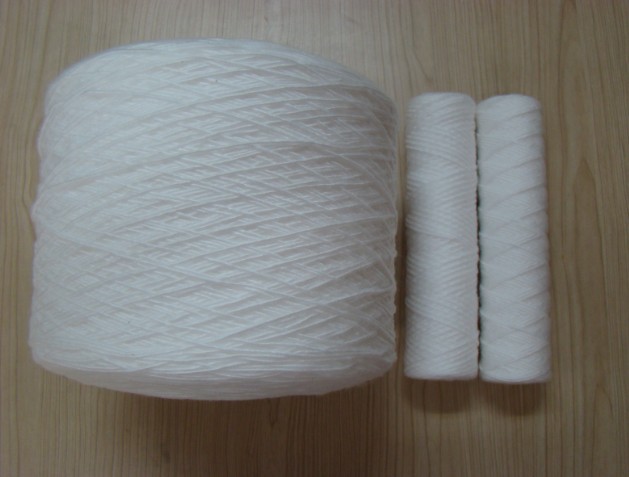

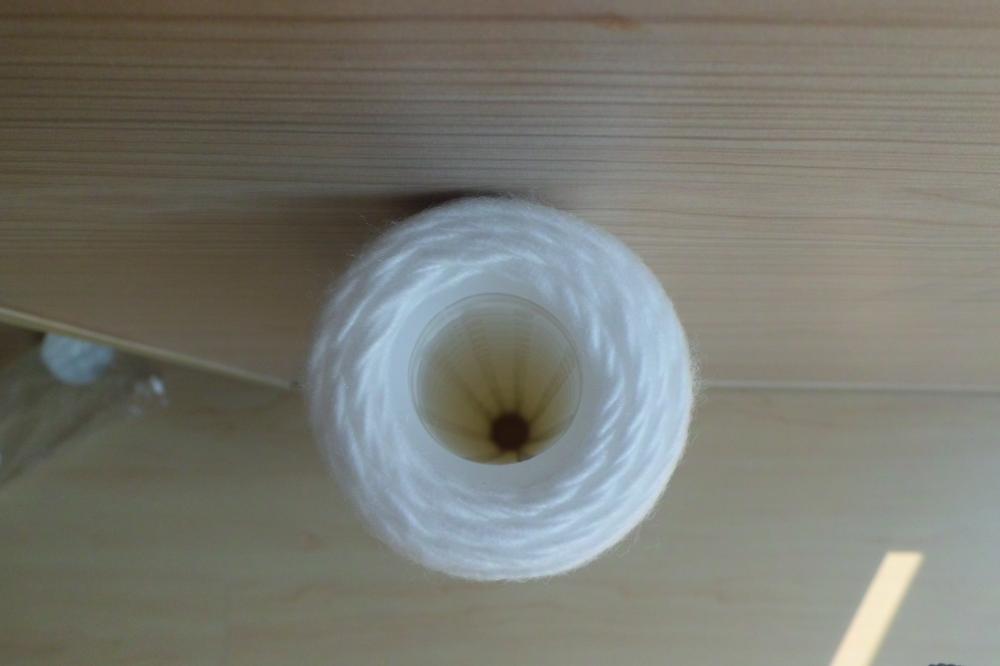

This filter cartridge features a honeycomb-like structure for effective removal of suspended solids, particulates, and rust from liquids. The polypropylene string wound design ensures high-quality filtration.
Technical Specifications
Overview
High-Efficiency Depth Filtration
The PP String Wound filter cartridge is an industrial-grade depth filter engineered for the high-capacity removal of sediments, rust, dirt, and sand. Constructed with a robust polypropylene core and precision-wound fibers, it provides exceptional dirt-holding capacity and consistent flow rates. Its versatile material compatibility and wide range of configurations make it an ideal choice for protecting sensitive processes across the microelectronics, beverage, and petrochemical industries.
Technical Specifications
Dimensions
| Parameter | Range/Value |
|---|---|
| Outer Diameter | 50-120 mm |
| Inner Diameter | 28/30 mm |
| Length | 5/10/20/30/40 inch |
Key Performance Indicators
4.2 bar
Max Differential Pressure
0.6 m2
Filtration Area (10 inch)
- Pore Size Range
- 0.5 - 100 μm
Materials and Compatibility
- Construction Materials
- PolypropyleneCottonGlass FiberSiliconeVitonEPDM
- PH Resistance
- 1 - 13
Operating Conditions
Maximum Operating Temperatures
- Polypropylene: 80°C (172°F)
- Cotton: 130°C (280°F)
- Glass Fiber: 300°C (645°F)
Application
- Compatible Industries
- Water PurificationBeverage & WineMicroelectronicsMedicineSewage TreatmentElectroplatingOpticalPetrochemical
