Technical Specifications
Overview
High-Efficiency PP Sediment Filtration

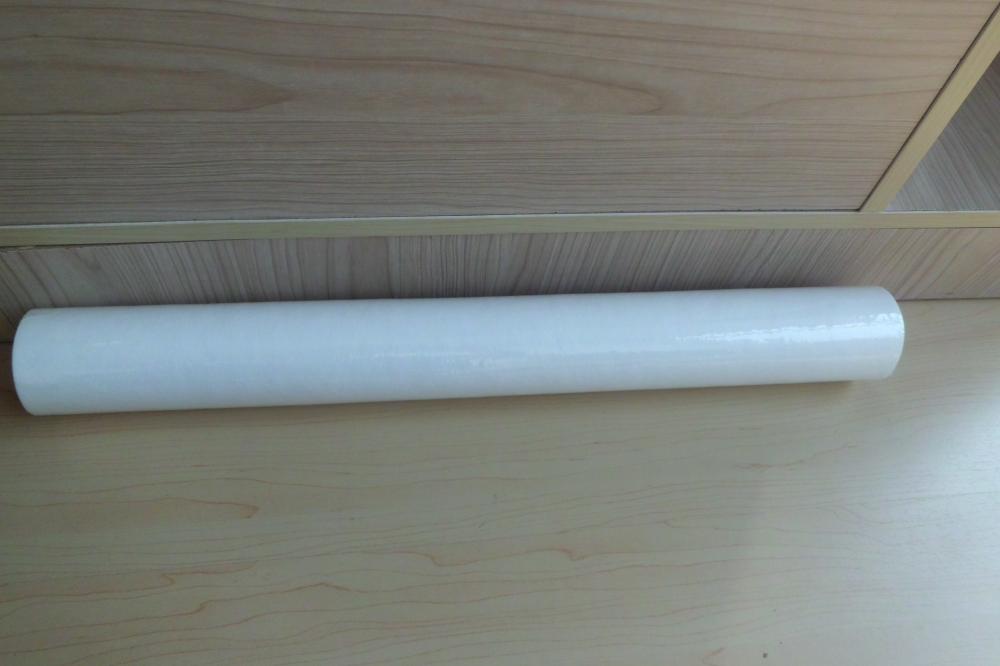

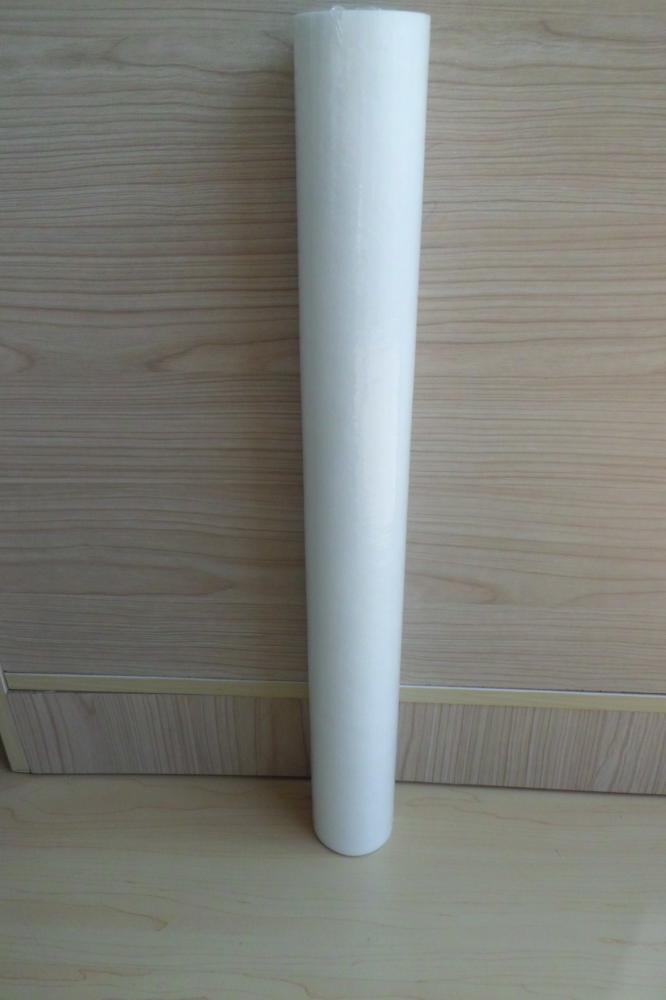

The XJF-SPA series is a professional-grade melt-blown polypropylene filter cartridge designed for exceptional sediment removal. Utilizing advanced thermal spray technology, it features a graded density structure that captures finer particles at the inner core and coarser debris at the surface for maximum dirt-holding capacity. This versatile cartridge is ideal for residential purification, industrial applications, and demanding microelectronic or pharmaceutical pre-filtration.
Physical Properties
Dimensions
| Parameter | Range/Value |
|---|---|
| Outer Diameter | 60-120 mm |
| Inner Diameter | 25-35 mm |
| Available Lengths | 5 to 50 inch |
- Material
- 100% Pure Polypropylene (PP) fiber
- Filtration Rating
- 1 μm100 μm
Performance
Operational Limits
90 °C
Max Temperature
4.2 bar
Max Differential Pressure
13 PH
Max PH Value
Main Features
- High flow rates
- Excellent dirt-holding capacity
- Easy installation and maintenance
- Chemically inert
- One-step melt-blown forming
Application
- Primary Applications
- Water PurificationBeverage & WineMicroelectronicsPharmaceuticalSewage Processing
