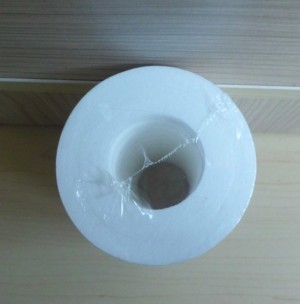

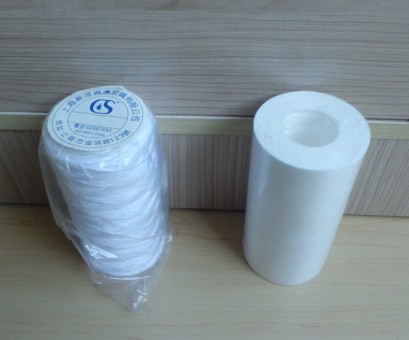

PP Sediment Water Filter Cartridge
This PP sediment filter cartridge utilizes melt-blown technology to remove particulate matter from water. Its polypropylene construction provides chemical resistance and a high dirt-holding capacity.
Technical Specifications
Product Overview
High-Performance Melt-Blown Filtration
This PP sediment filter cartridge is manufactured using an advanced one-step melt-blown process that creates a graded density structure, offering a denser inner layer for fine filtration and a coarser outer layer for extended service life. Engineered for reliability in both residential and industrial settings, it provides high flow rates and exceptional dirt-holding capacity. Its robust polypropylene construction ensures superior chemical compatibility and effective removal of particulates like rust, sand, and silt.
Technical Specifications
- Material
- Polypropylene (PP) fibre
- Pore Size
- 1-100 μm
- PH Value Range
- 1-13
Performance Metrics
Operating Limits
50 ℃
Normal Working Temperature
90 ℃
Max Working Temperature
4.2 bar
Max Differential Pressure
Compatibility & Options
Customization Options
| Parameter | Available Range |
|---|---|
| Outer Diameter | 60-120 mm |
| Inner Diameter | 25/28/30/34/50 mm |
| Length | 5/10/20/30/40/50 inch |
| Endcaps | DOE / SOE |
- Primary Applications
- Water PurificationBeverage & WineMicroelectronicsPharmaceuticalsSewage Processing
