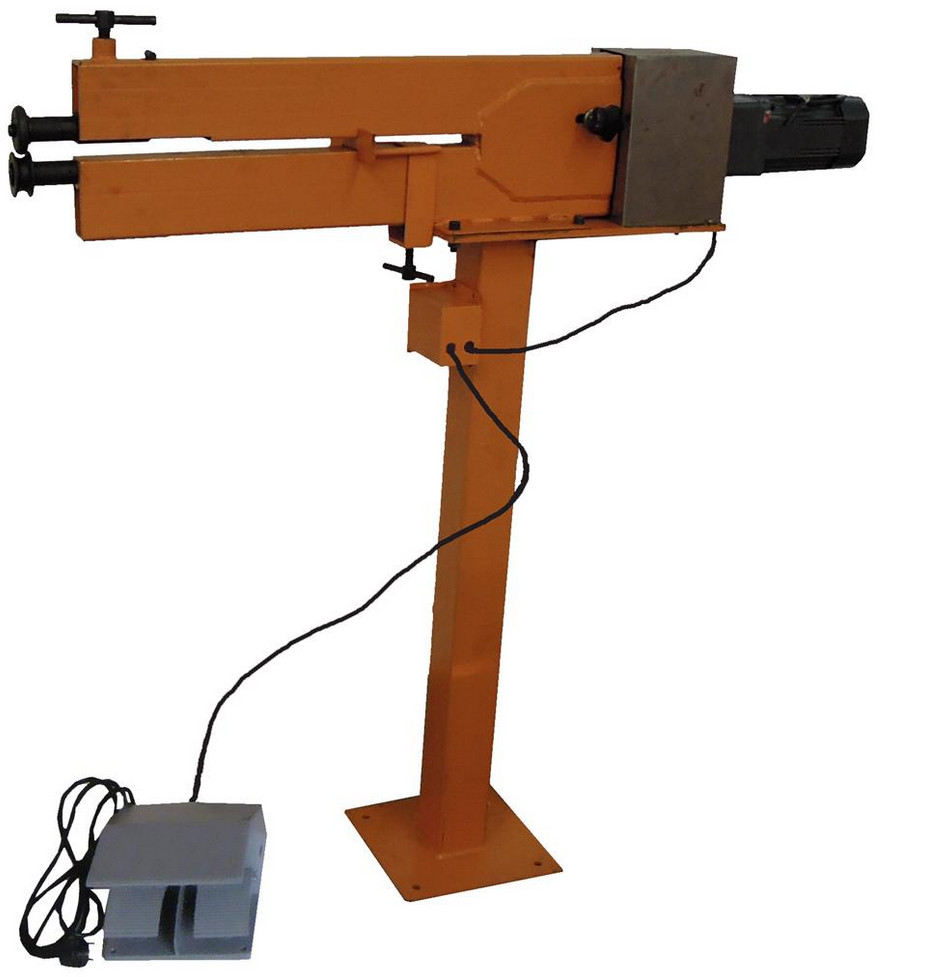

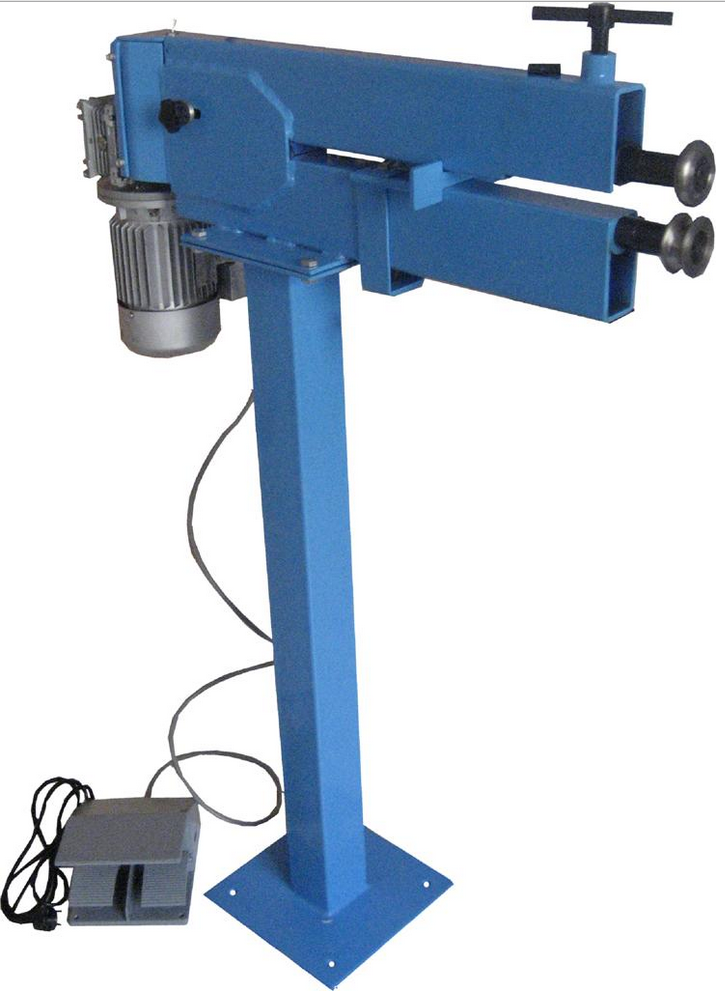

Powered Sheet Metal Rotary Forming Machine
This powered rotary machine is designed for shaping and forming sheet metal. It features a foot pedal for hands-free control, allowing for precise and efficient metalworking.
Technical Specifications
Overview
Professional Powered Rotary Forming Machine
This industrial-grade powered sheet metal rotary forming machine is engineered for high-precision shaping, beading, and curving. It features a heavy-gauge steel construction and a robust electric motor, controlled via a convenient foot pedal to allow for hands-free operation and maximum control. With its adjustable throat and included die sets, it is an essential tool for efficient metal fabrication in professional workshop environments.
Technical Specifications
Motor Power
180 W
Power
220 V
Voltage
50 Hz
Frequency
- Roller Speed
- 14 RPM
- Throat Depth
- 395 mm
- Capacity
- 1 mm / 20 ga
Dimensions and Weight
- Machine Dimensions (LxWxH)
- 880 x 260 x 1280 mm
- Net Weight
- 48 kg
Features
Included Die Sets
- 4 mm / 5/32"
- 6 mm / 1/4"
- 9 mm / 3/8"
- 12 mm / 15/32"
- 15 mm / 19/32"
- Wiring Mandrel Set
- Product Highlights
- Heavy Gauge SteelAdjustable Guide FenceFoot Pedal ControlMicro-Adjustment PrecisionSturdy Floor Stand
