Powder Grinding Mill
This ring medium speed micro powder mill is designed for fine and superfine powder processing. It is suitable for non-explosive brittle materials with medium and low hardness, capable of adjusting finished product granularity between 325-2500 mesh.
Technical Specifications
Overview

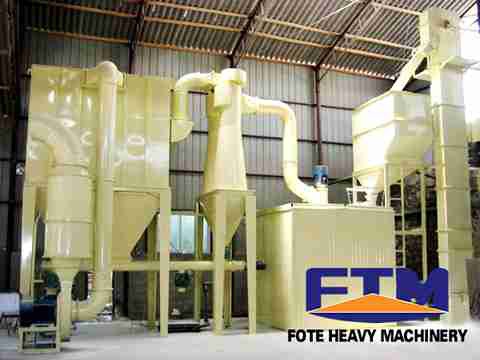

Industrial Micro Powder Grinding Mill
This ring medium speed micro powder mill is a specialized industrial solution designed for fine and superfine powder processing. It is engineered for non-explosive, brittle materials with low to medium hardness, such as calcite and chalk. The system offers high efficiency, energy savings, and superior environmental protection through integrated dust collection and noise reduction features.
Performance Metrics
Key Performance Indicators
2,500 kg/h
Max Output
5 μm
Min Fineness
10 mm
Max Feed Size
Technical Specifications
Model Specifications (FTMM-1021)
| Model | Output (kg/h) | Power (c°/t) |
|---|---|---|
| 400 | 600-7000 | 22 |
| 800 | 3000-3500 | 45 |
| 1250 | 2000-2500 | 70 |
| 1500 | 1800-2000 | 73 |
| 1800 | 1500-1800 | 90 |
| 2500 | 1200-1300 | 120 |
| 3000 | 900-1100 | 145 |
Features
Core Advantages
- High efficiency and energy saving design
- Extended working life for grinding rollers and rings
- High product fineness capability (up to D97 ≤ 5μm)
- Environmental protection with pulse dust collector and silencer
- Adjustable granularity between 325-2500 mesh
- Suitable Materials
- CalciteChalkNon-explosive Brittle MaterialsMedium Hardness MaterialsLow Hardness Materials
