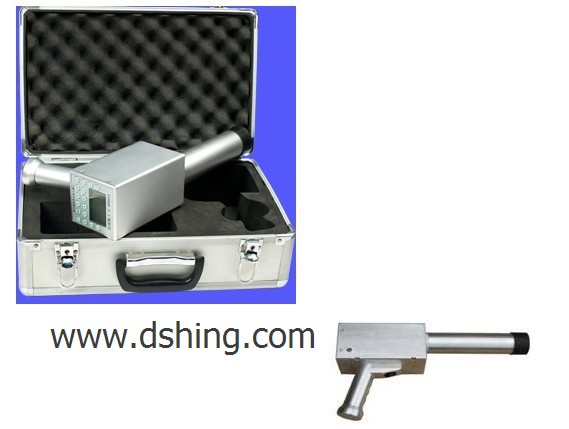

Portable X-Gamma Radiation Detector
This portable detector accurately measures X-gamma radiation levels. It features timing X-gamma spectra measurement to recognize nuclide and quantitative calculation of radionuclide content, as supplying dose rate.
Technical Specifications
Overview
Portable X-Gamma Radiation Detection
This portable X-Gamma radiation detector is a high-precision instrument designed for comprehensive radiation analysis and environmental monitoring. It utilizes advanced crystal detection technology to provide reliable quantitative analysis of radionuclides and accurate dose rate measurements. Built for durability and ease of use, it is an essential tool for geological prospecting, industrial safety, and environmental assessment.
Key Performance Metrics
Measurement Range
9,999 μsv/h
Dose Rate Range
9,999 γ
Gamma Range
- Sensitive Thresholds
- 350 cps/μsv/h
Technical Specifications
- Detector Type
- 30mm x 30mm NaI(TI) crystal
- Energy Range
- < 4 Mev
- Detector Resolution
- > 8%
- Accuracy
- ±10% (deviation between measured and calculated)
- Stability Error
- ≤±7% (8-hour operation)
Physical Characteristics
- Dimensions
- 360mm x 90mm x 220mm
- Weight
- 2 kg
Operating Environment
Working Conditions
| Parameter | Range |
|---|---|
| Temperature | -10℃ to +50℃ |
| Relative Humidity | < 95% |
Applications
Primary Applications
- X-gamma radiation total amount measurement
- U, Th, K quantitative analysis
- Radionuclide recognition
- Environmental and building material radiation detection
- Underground water search and density determination
- Uranium, thorium, and kalium prospecting
- Large area gamma abnormity census
