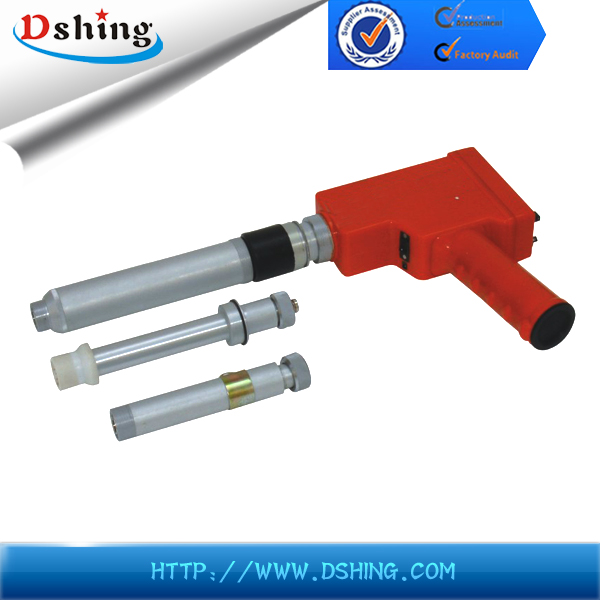

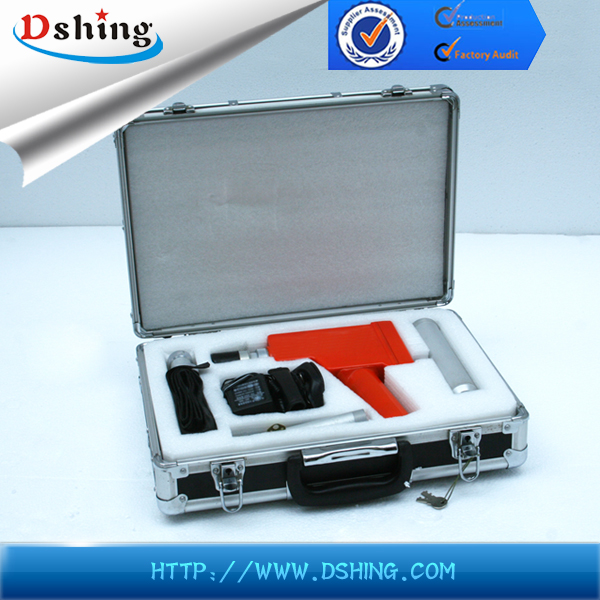

Portable Gamma Ray Detector
This portable gamma ray detector is designed for detecting gamma radiation in various environments. It can be used for semi-quantitative analysis of uranium ore samples, radioactivity detection in building materials, and large area gamma abnormity census.
Technical Specifications
Overview
High-Precision Radiation Detection
This portable gamma ray detector is engineered for accurate and reliable radiation monitoring in demanding field and laboratory environments. Utilizing a high-sensitivity NaI (TL) crystal sensor, it provides precise measurements with an overflow alarm feature to extend the effective reading range. The device is built for durability and ease of use, featuring a compact, ergonomic design suitable for professionals in environmental monitoring, industrial radiography, and research.
Technical Specifications
- Sensitivity
- 4ppmeu (1ppmeu average uranium content is equal to 0.52γ)
- Measurement Range
- 0~9999 (x1 shift, with overflow alarm)
- Detector Type
- NaI (TL) crystal, φ30*25mm
Performance Metrics
Key Performance Indicators
1 kg
Weight
85 %
Max Humidity
Power and Environment
- Power Supply
- Chargeable batteries with included charger
- Operating Temperature
- 10℃ to +50℃
Dimensions
- Dimensions
- 204 x 200 x 46 mm
