Technical Specifications
Product Overview
Professional Thermal Imaging

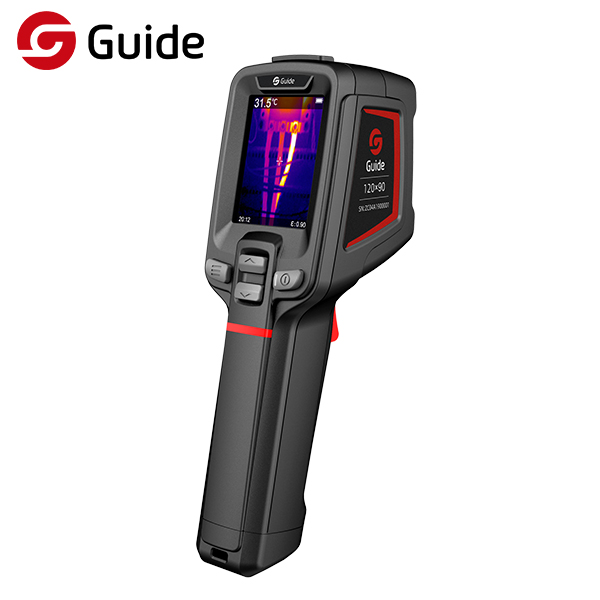

The T120 series is an affordable, entry-level thermal imaging camera designed for building diagnostics, HVAC inspections, and electrical system analysis. It overcomes the limitations of single-spot infrared thermometers by providing a 120x90 resolution display, allowing for rapid detection of large areas and precise fault pinpointing. With a rugged, portable design, it offers a user-friendly interface, fast boot-up times, and comprehensive data analysis capabilities for professional efficiency.
- Key Features
- Radiometric ImagingFocus-free1-Second Boot-upRugged DesignPocket-sized
Imaging Performance
Color Palettes
Iron Oxide RedHot IronArcticRainbow 1Rainbow 2White Heat
- IR Resolution
- 120x90 pixels
- Field of View (FOV)
- 50° x 38°
- Thermal Sensitivity
- 0.06 °C
Measurement Capabilities
Measurement Tools
- Hot spot display
- Cold spot display
- Center spot display
- Full-screen max/min temperature warning
- Auto-tracking
- Temperature Range
- -20°C to 400°C (Auto switching)
Durability and Physical
- Encapsulation
- IP54
- Drop Test Rating
- 2 meters
- Dimensions
- 194mm x 61.5mm x 76mm
- Weight
- 350 g
Connectivity and Power
- Battery Life (T120)
- 8 hours
- Battery Life (T120V)
- 5 hours
- Connectivity
- USBType-CRemovable TF CardWiFi (T120V only)
Model Comparison
Comparison Table
| Feature | T120 | T120V |
|---|---|---|
| WiFi | N/A | Yes |
| Battery Life | > 8 hours | > 5 hours |
