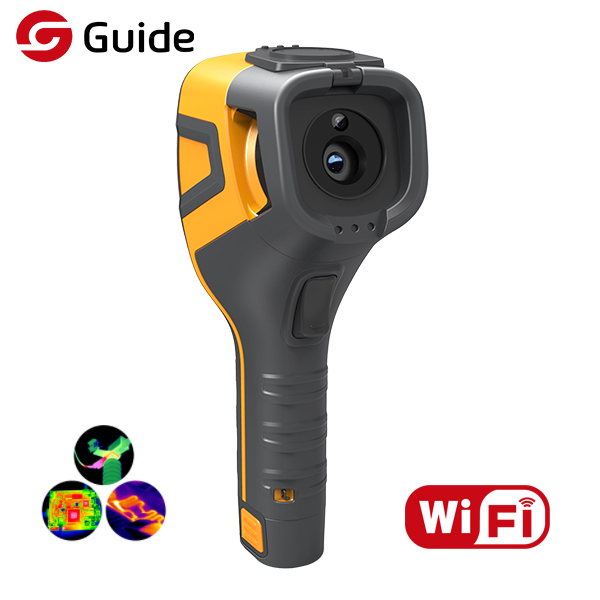

Infrared Thermal Imaging Camera
This infrared thermal imaging camera is an efficient and fully equipped system for various applications. Its intuitive handling and user-friendly single-hand operation make it ideal for troubleshooting electrical installations, mechanical components, buildings, process equipment, and HVAC/R equipment.
Technical Specifications
Overview
Professional Thermal Imaging Solution
This high-performance thermal imaging camera is designed for efficient troubleshooting across electrical, mechanical, and HVAC systems. Featuring an intuitive, ergonomic single-hand operation, the device provides clear thermal visualization to identify hidden problems instantly. With multiple resolution options and advanced image modes like MIF and PIP, it offers the flexibility needed for precise building diagnostics and predictive maintenance.
Imaging Performance
Model Specifications
| Model | Resolution | FOV |
|---|---|---|
| B160V | 160x120 | 30°x22° |
| B256V | 256x192 | 35°x26° |
| B320V | 320x240 | 42.5°x32.5° |
Focus
- Detector Type
- VOx/7.5~14μm
- Frame Rate
- 25Hz/9Hz
Image Presentation
- Display
- 3.5" highlight LCD screen, 320x240 resolution
- Image Modes
- IRVisibleMIFPIP
Measurement
Key Measurement Metrics
Measurement Features
- Center spotmeter
- Area Tmax/Tmin tracking
- Area Tmax/Tmin alarms
- Auto/Semi-automatic/Manual level span
Connectivity & Power
- Connectivity
- WiFiMicro USB
- Battery Life
- 4 hours

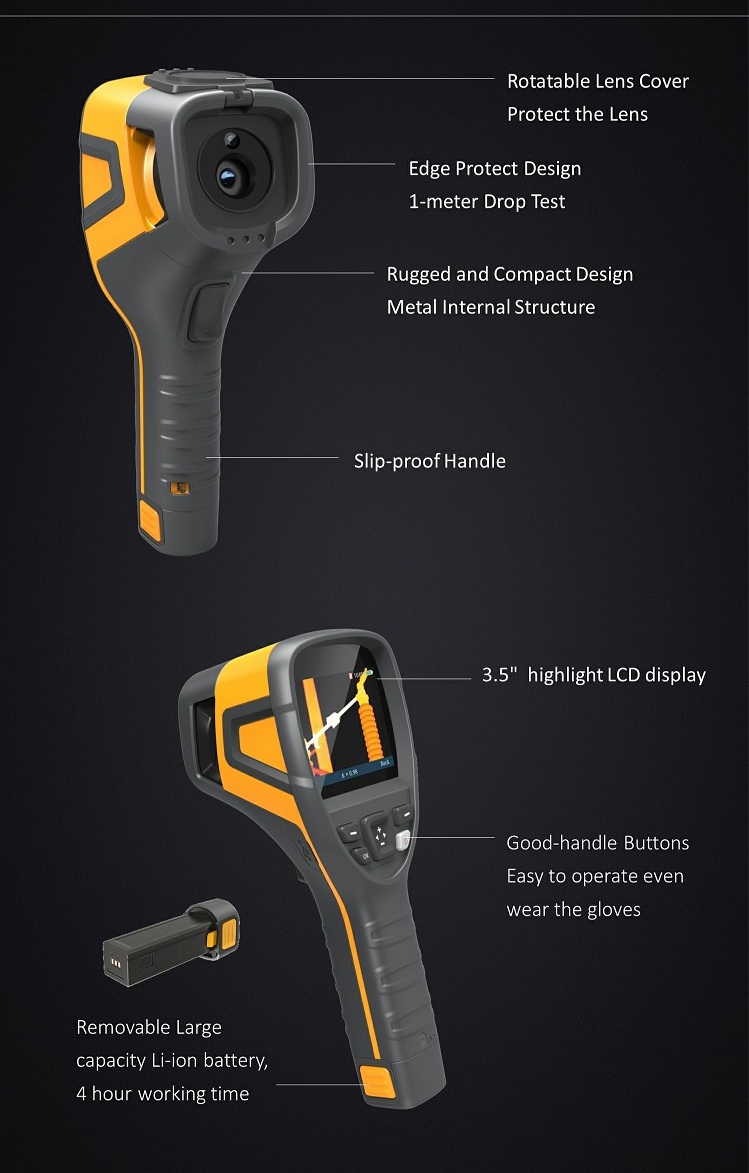

Environmental & Physical
Durability Ratings
- Physical Dimensions
- 258mm x 98mm x 90mm
- Weight
- 740 g
