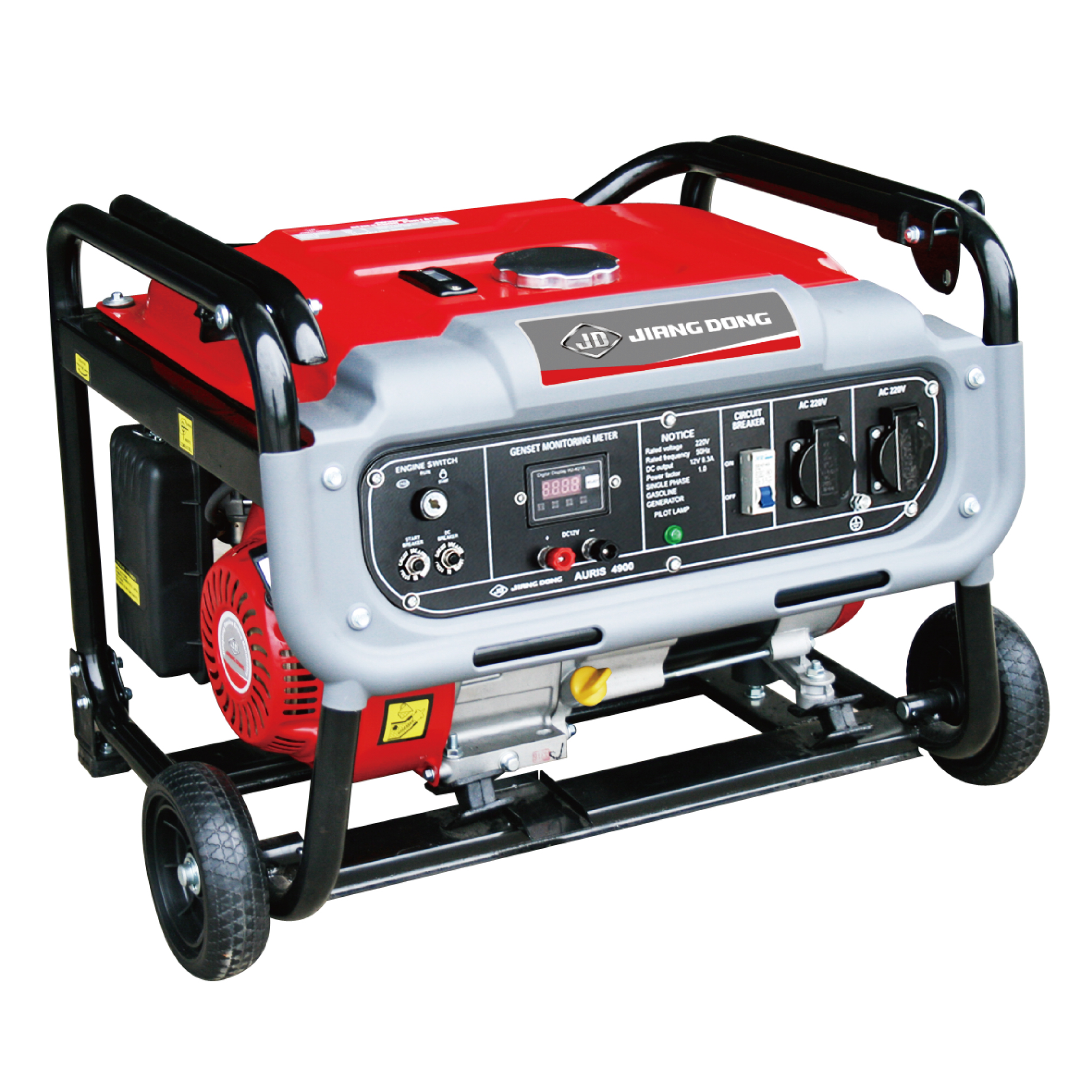

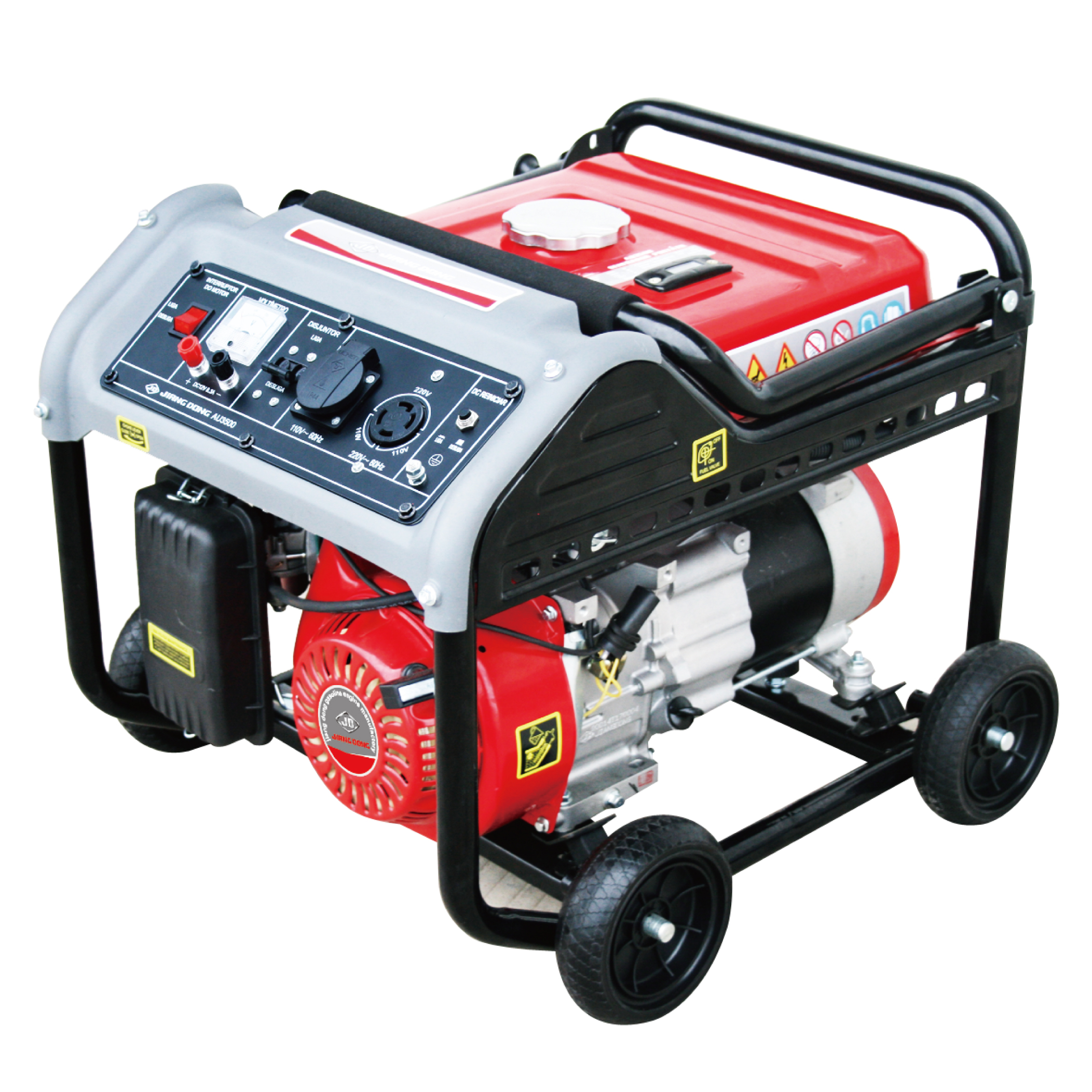

Portable Gasoline Generator with 220V Output
This gasoline generator is a portable power source suitable for locations without grid power or during outages. It features multiple voltage outputs and a DC output, with safety features and a durable frame with wheels for easy transport.
Technical Specifications
Overview
Portable Gasoline Generator
This series of portable gasoline generators provides reliable single-phase power for a variety of applications, from job sites to home backup. Equipped with forced air-cooled 4-stroke OHV engines, these units offer consistent performance and multiple voltage output options to suit international requirements. Built for durability and ease of use, they feature robust frames, recoil or electric starting systems, and essential safety components like circuit breakers and voltage regulation.
Performance Specifications
Performance Comparison
| Feature | JD2000 | JD2500 | JD3000 |
|---|---|---|---|
| Rated AC Output (KVA) | 1.5/1.8 | 2.0/2.2 | 2.5/3.0 |
| Peak AC Output (KVA) | 1.7/2.0 | 2.2/2.5 | 2.8/3.5 |
| Engine Displacement (ml) | 163 | 163 | 196 |
| Max. Output (HP/rpm) | 5.5/3600 | 5.5/3600 | 6.5/3600 |
| Continuous Operating Hours | 13 | 13 | 11 |
| Gross Weight (kg) | 41 | 42 | 52 |
Technical Details
- Engine Type
- OHV Forced Air-cooled 4-stroke
- Voltage Regulation
- AVR
- Fuel Tank Capacity
- 15 L
- Operating Noise Level (7m)
- 67 dB(A)
- Starting System
- RecoilHand-operatedElectric start
- Power Factor
- 1
Features
Standard Features
Fuel gaugeEngine SwitchVoltmeterAC Circuit BreakerAC Socket
Optional Features
Pilot LightWheel & handleHours meterDC OutputDC Circuit Breaker
