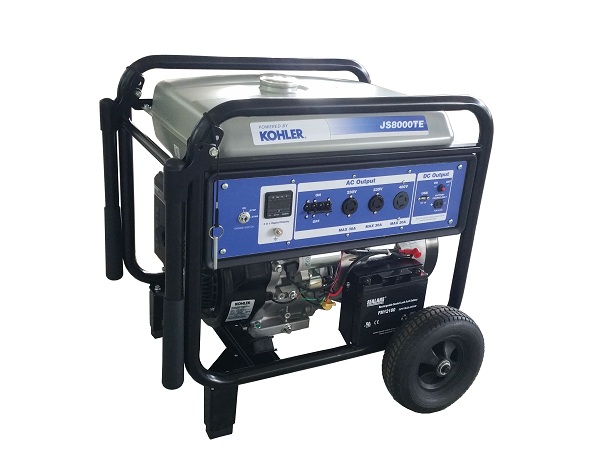

Portable Gasoline Generator Set with Kohler Engine
This portable generator set is powered by a Kohler CH440 engine. It features both AC and DC output options and a digital display for monitoring voltage, frequency, and operating hours.
Technical Specifications
Product Overview
Industrial-Grade Portable Power
This portable gasoline generator set offers reliable power output utilizing a high-performance engine for consistent operation. Designed with a sturdy 32mm pipe frame and large capacity fuel tank, it is built for extended running times in demanding environments. The unit features integrated digital monitoring, multiple AC/DC output options, and optional mobility kits to suit professional site requirements.
Engine & Performance
- Displacement
- 429 ml
- Engine Configuration
- 4-strokeOHVForced air-cooled
Electrical Specifications
Key Performance Metrics
3 %
Voltage Regulation
6 %
THD Limit
Available Outputs
- DC Output: 12V/8.3A
- USB Output: 5V/1000mA
- AC Voltage Options: 110/120/220/230/240V (Single Phase) or 230/400V (Three Phase)
Design & Build
Construction Details
| Feature | Specification |
|---|---|
| Frame Diameter | 32mm |
| Fuel Tank Capacity | 30L |
| Dimensions (L*W*H) | 702x522x599mm |
Safety & Protection
Waterproof receptaclesAC/DC Circuit protection3-in-1 Digital displayFuel gauge
