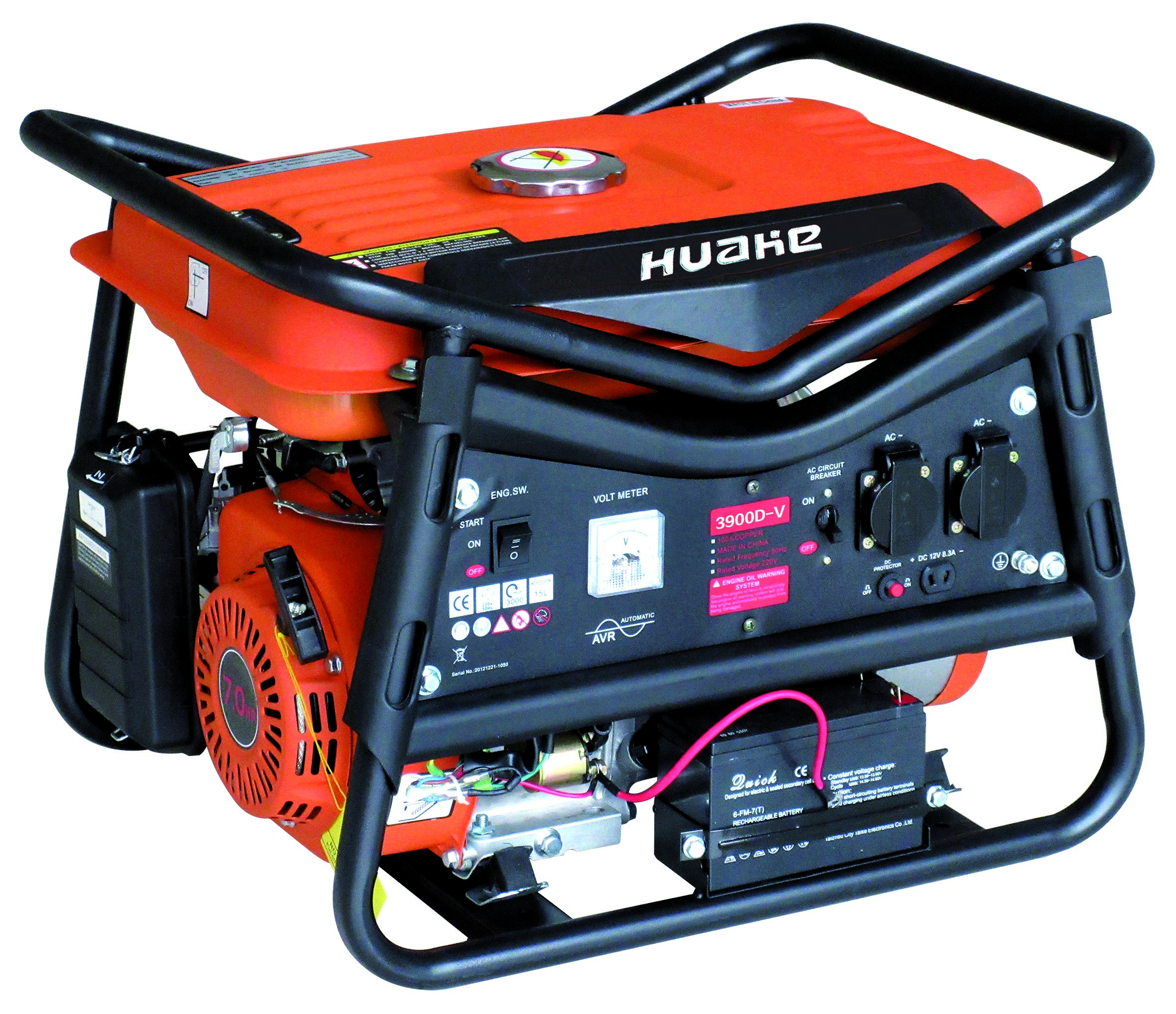

Portable Gasoline Generator Set with 220V Output
This gasoline generator set delivers 220V/50Hz power for a variety of uses. It includes overload protection and automatic voltage regulation to ensure a consistent power supply.
Technical Specifications
Product Overview
Reliable Portable Power
This portable gasoline generator set is engineered for consistent performance, featuring an overhead valve engine with an automatic decompression device for easy starting. Equipped with an automatic voltage regulator (AVR), it ensures stable power output suitable for sensitive electrical equipment. The unit includes advanced safety features like an oil alert system and a large-capacity silencer to minimize operational noise.
Performance Metrics
Key Performance Indicators
2,000 W
Rated Power Output
2,200 W
Max Power Output
5.5 HP
Max Engine Output
65 dB
Noise Level (at 7m)
Technical Specifications
Electrical Data
| Parameter | Value |
|---|---|
| Rated Voltage | 220 V |
| Rated Current | 9.1 A |
| Frequency | 50 Hz |
| DC Output | 12V 8.3A |
Engine Specifications
- Model: 168F
- Type: Single cylinder, 4-Stroke
- Displacement: 163cc
- Starting System: Recoil start / Key start
Physical Characteristics
Dimensions and Capacity
- Fuel Tank Capacity: 15 L
- Net Weight: 38 kg
- Dimensions: 605 x 480 x 475 mm
Features
- Safety and Protection
- Oil Alert SystemAutomatic Voltage Regulator (AVR)Overload ProtectionLow Vibration Aluminum Connecting RodTransistor Ignition System
