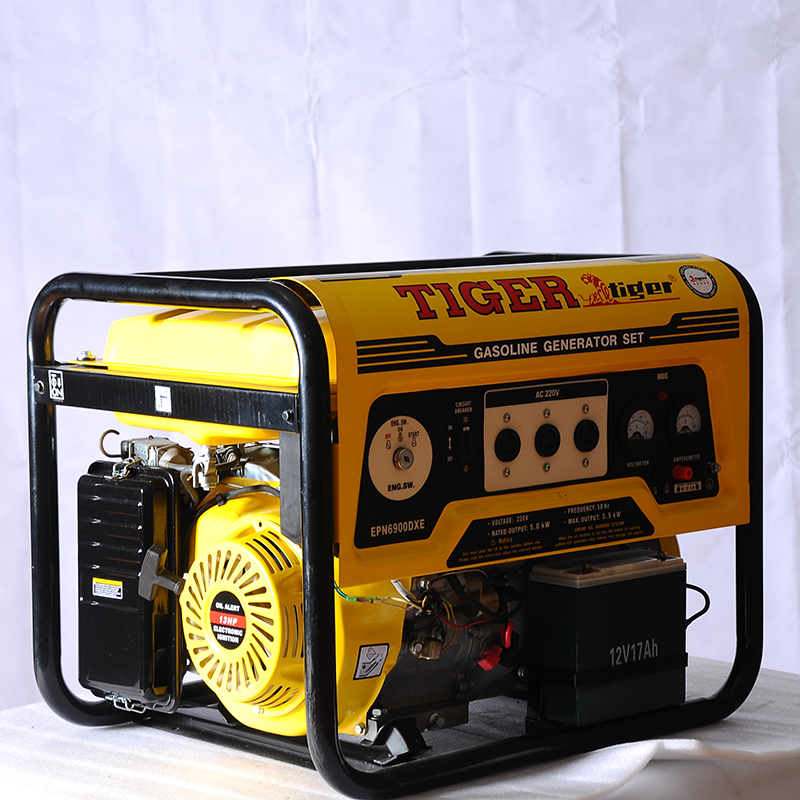

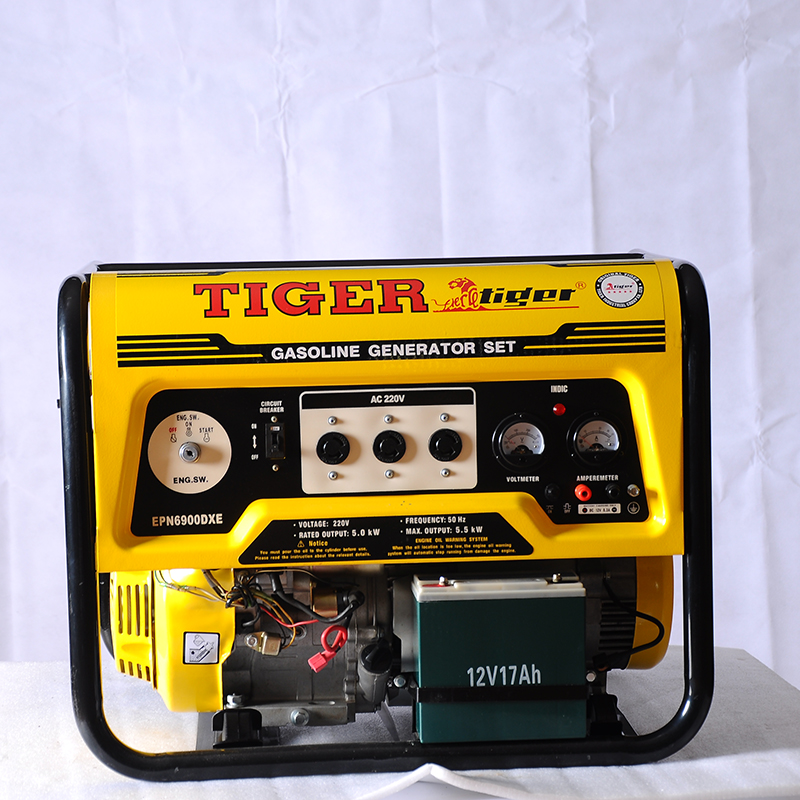

Portable Gasoline Generator Set, 5.5kW Max Output
This gasoline generator set delivers portable power for various applications. It features a 13HP electronic ignition engine, an oil alert system, and a durable frame.
Technical Specifications
Overview
Reliable Portable Power
This portable gasoline generator set is designed to provide dependable power for a variety of professional and residential applications. Featuring a robust 13HP 4-stroke engine with forced air-cooling, it delivers a reliable 5.0kW rated output with a 5.5kW maximum capacity. Equipped with an electric key start system and safety features like an oil alert warning and circuit breaker, it ensures both ease of operation and long-term durability.
Performance Metrics
Power Output
5 kW
Rated Output
5.5 kW
Max Output
22.7 A
Rated Current
Engine Specifications
Engine Details
| Feature | Specification |
|---|---|
| Engine Model | TE390E |
| Engine Type | Forced air-cooled, 4 stroke, OHV |
| Displacement | 389 cc |
| Max Output | 13 HP |
| Ignition System | Non-contact transistorized ignition (T.C.I) |
Operational Specifications
Operational Data
- Voltage: 220V
- Frequency: 50Hz
- Starting System: Key Start (Electric)
- Fuel Tank Capacity: 25L
- Oil Capacity: 1.1L
Logistics
Dimensions & Weight
- Package Dimensions: 695x530x570 mm
- Gross Weight: 95 kg
- 20' FCL Capacity: 135 pcs
