Portable Gasoline Generator

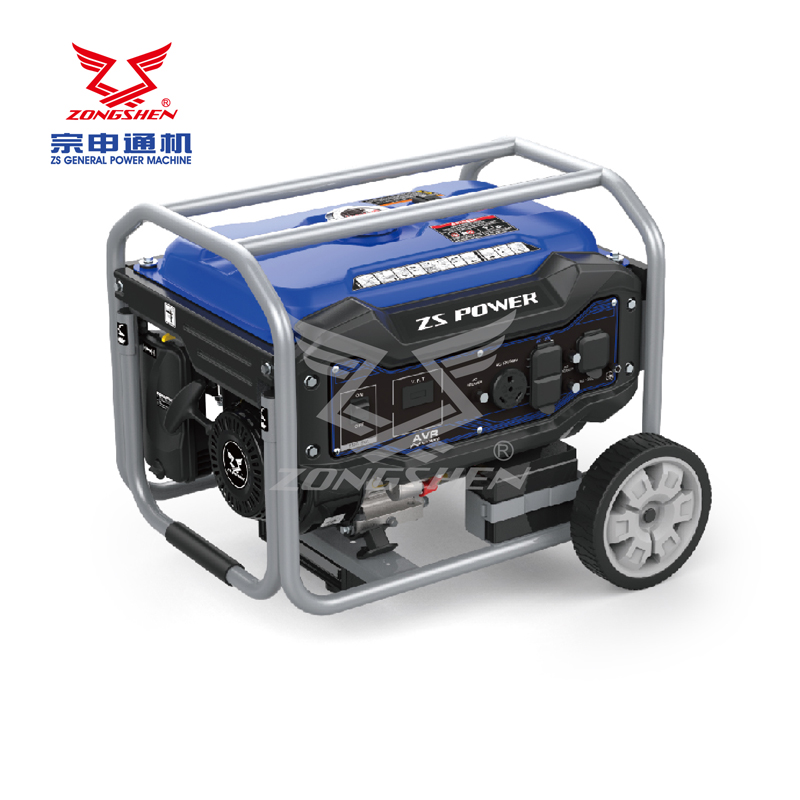

This gasoline generator provides a reliable power source for various applications. It features multiple power outlets and a durable metal frame with wheels for easy transport.
Technical Specifications
Product Overview
Robust Portable Power Solution
This portable gasoline generator features a high-strength, curved surface fuel tank capable of bearing up to 100kg of weight. Engineered for longevity, the robot-welded frame ensures structural integrity for up to 20 years, while the engine is rated for 500 hours of continuous, stable operation. The integrated control panel provides a user-friendly interface, making it an ideal choice for reliable backup power or remote site operations.
Performance Metrics
Power Output
5.5 kW
Max Output (50Hz)
6 kW
Max Output (60Hz)
Operational Specifications
| Feature | 50Hz Value | 60Hz Value |
|---|---|---|
| Rated Output | 5 kW | 5.5 kW |
| Running Time (50% Load) | 9 h | 8 h |
Engine & Technical
Engine Specifications
- Model: GB420-2
- Type: OHV, Air-cooled, 4-stroke
- Displacement: 420cc
- Insulation Grade: F
- Technical Limits
- 25 % THD
- Fuel Tank Capacity
- 27 L
Logistics & Compliance
Certifications
Euro VCEEPA CARB
Physical Dimensions & Weight
- Net Weight: 78 kg
- Packing Dimensions: 790 x 575 x 605 mm
- Container Load Capacity
- 84 (20'GP) / 174 (40'GP) / 231 (40'HQ)
