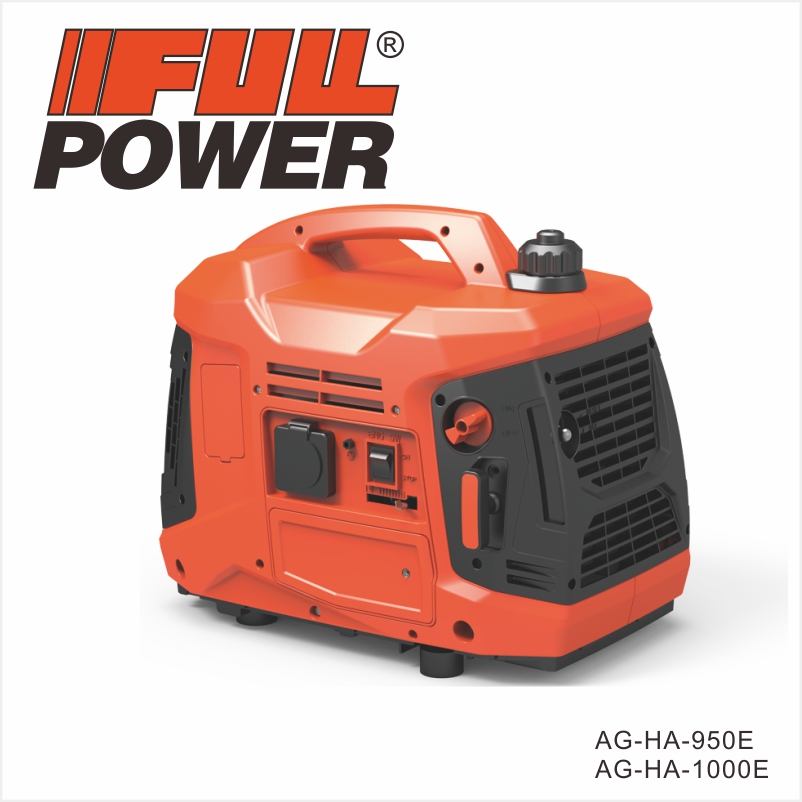

Portable Gasoline Generator
This portable gasoline generator is designed for reliable power supply in various locations. It features a compact and durable construction with an easy-to-access control panel, suitable for applications requiring mobile power.
Technical Specifications
Overview
Portable Power Solutions
These portable gasoline generators are designed for reliable, mobile power supply in various environments. Featuring a compact and durable construction, they are ideal for camping, recreational activities, and emergency backup power. With a brushless, self-exciting design and recoil start system, they offer straightforward operation and consistent performance for small appliances and lighting.
Performance Metrics
Power Output Comparison
| Model | Max Output (kW) | Rated Output (kW) |
|---|---|---|
| AG-HA-950E | 0.8 | 0.7 |
| AG-HA-1000E | 1 | 0.85 |
Engine Specifications
- Engine Type
- Single cylinder, Air-cooled, Two stroke
- Displacement
- 63 ML
- Fuel Mixture
- Gasoline : Engine Oil 40:1
- Fuel Tank Capacity
- 2.5 L
- Work Duration
- 4 h
Electrical Specifications
- Rated AC Voltage
- 110V120V220V230V240V
- Frequency
- 50/60 Hz
Physical Characteristics
Net Weight
18 KG
AG-HA-950E
19 KG
AG-HA-1000E
- Dimensions (LxWxH)
- 505x360x440 mm
Operational Features
Standard Accessories
- AC Breaker
- AC Socket
- Operating Sound Rate (7m)
- 58 dB(A)
