Portable Combustible Gas Leak Detector
This portable detector is designed for detecting combustible gas leaks. It features a flexible probe for accessing hard-to-reach areas and a digital display for indicating gas concentration.
Technical Specifications
Product Overview
Industrial-Grade Leak Detection

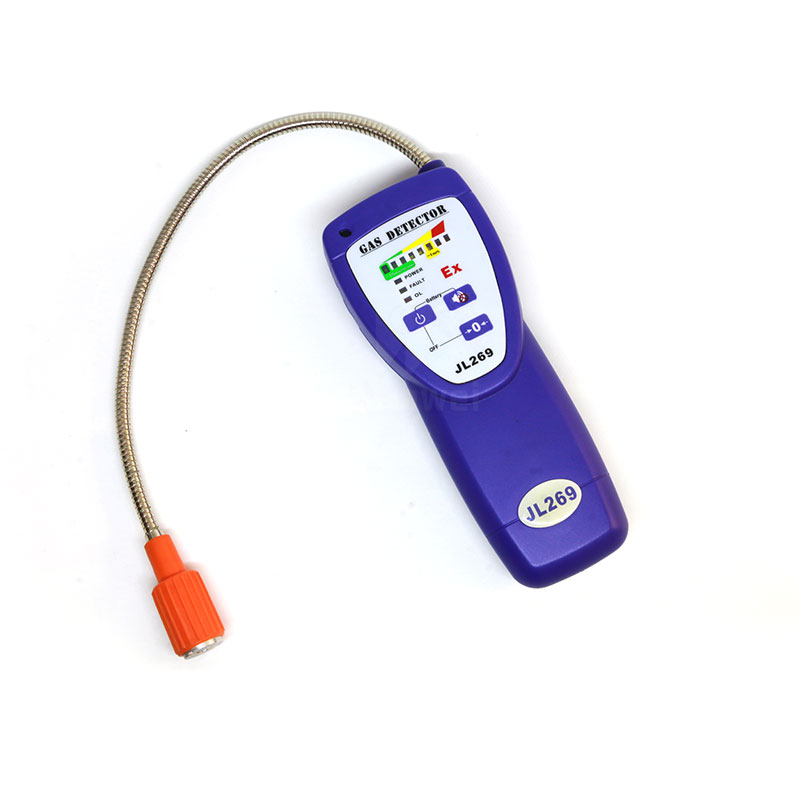

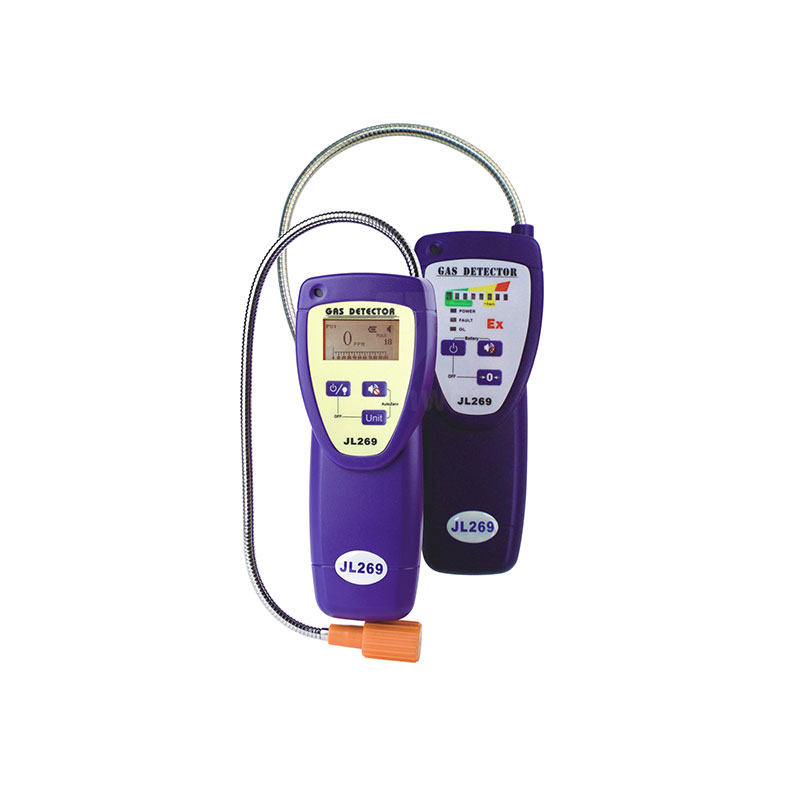

The JL269 is a professional, portable gas leakage detector engineered for rapid response and high precision in industrial environments. Featuring a flexible gooseneck design, it allows for easy access to confined spaces, making it an ideal tool for daily pipeline inspections and maintenance. The device offers reliable detection for multiple combustible gases, including natural gas, LPG, and Hydrogen, ensuring safety and efficiency for gas utility professionals.
Technical Specifications
Gas Detection Ranges
| Gas Type | Range (PPM) |
|---|---|
| CH4 | 0-30000 |
| LPG (C3H8) | 0-20000 |
| H2 | 0-10000 |
Sensor Performance
2 years
Sensor Life
5 seconds
Response Time (T90)
- Key Features
- Automatic zero calibrationSensor fault detectionBattery low voltage alertDiffusion naturally
Power & Environment
Power Requirements
3.6 V
Voltage
2,100 mAh
Battery Capacity
8 hours
Continuous Runtime
Operating Environment
- Temperature: -10°C to 55°C
- Humidity: <93% R.H. (no dews)
Physical Design
Physical Dimensions
- Size: 180mm x 72mm x 35.5mm
- Weight: Approx. 300g
- Enclosure: Rubber
