Nitrogen Gas Transmission Rate Tester
The N500 gas permeation tester measures the gas transmission rate (GTR) of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for testing plastic film, barrier materials, sheets, and metal aluminum.
Technical Specifications
Overview
Precision Gas Permeation Testing

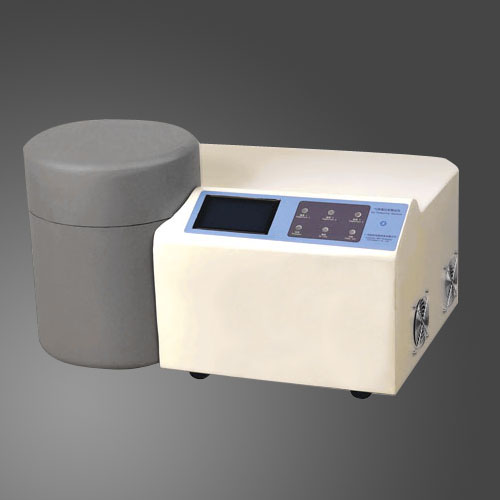

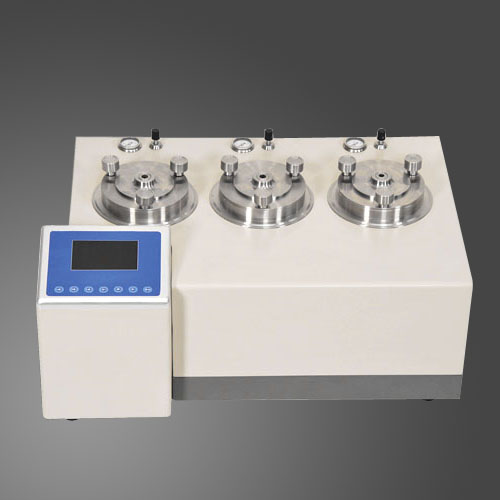

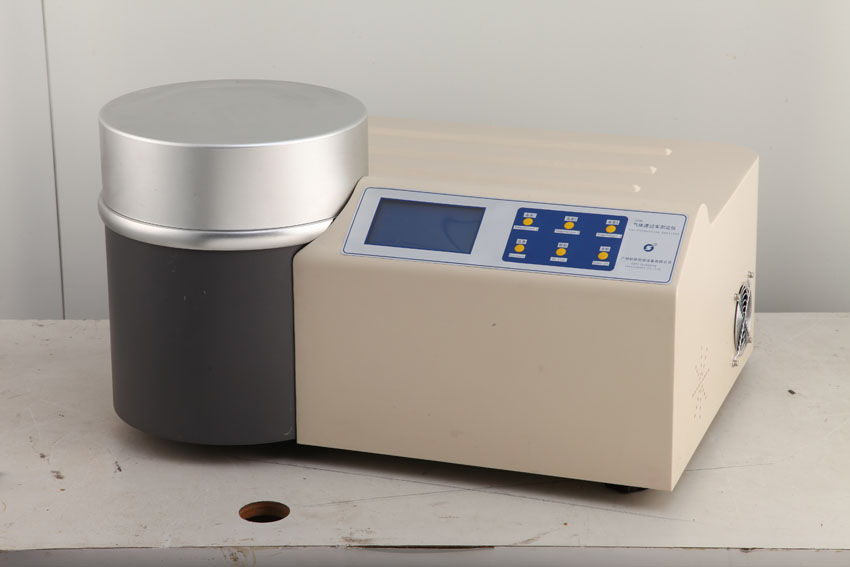

The N500 Gas Transmission Rate Tester is a high-precision instrument designed to measure the gas transmission rate (GTR) of various packaging materials, including plastic films, barrier materials, and sheets. Utilizing the differential pressure method, it provides reliable testing for gases such as O2, CO2, and N2. This system is essential for quality control and research in the food, pharmaceutical, and flexible packaging industries, ensuring compliance with international testing standards.
Technical Specifications
Measuring Range (Standard)
0.02 cm3/m2·day·0.1MPa
Lower Limit
5,000 cm3/m2·day·0.1MPa
Upper Limit
Measuring Range (Expanded)
0.2 cm3/m2·day·0.1MPa
Lower Limit
50,000 cm3/m2·day·0.1MPa
Upper Limit
- Measuring Accuracy
- 0.01 cm3/m2·day·0.1MPa
Compliance & Standards
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82 (2003)YBB00082003
Applications
Target Industries
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging
- Research & Quality Institutions
Testable Materials
- Plastic Film
- Barrier Materials
- Sheets
- Metal Aluminum
- PVC Sheets
