Portable Ammonia Gas Detector 0-100 ppm
This portable detector accurately measures ammonia gas concentrations in the range of 0-100 ppm. It features a clear digital display and user-adjustable alarm settings.
Technical Specifications
Overview
Professional Portable Ammonia Detection
The HP-5800G is a high-precision portable ammonia (NH3) gas detector designed for rapid and accurate monitoring in industrial, agricultural, and environmental settings. With a measuring range of 0-100 ppm and a clear digital display, it provides real-time data on gas concentration, temperature, and relative humidity. Equipped with user-adjustable alarms and a robust rechargeable battery, this device ensures workplace safety and environmental compliance in demanding conditions.
Key Metrics
Performance Highlights
100 ppm
Max Range
0.1 ppm
Resolution
2 Years
Sensor Life
Technical Specifications
Additional Measurements
- Ambient Temperature (°C/°F)
- Relative Humidity (%RH)
- Ammonia Measuring Range
- 0-100 ppm
- Sensor Principle
- Electrochemical principle
- Power Supply
- Rechargeable NiMH battery via USB (DC 5V)

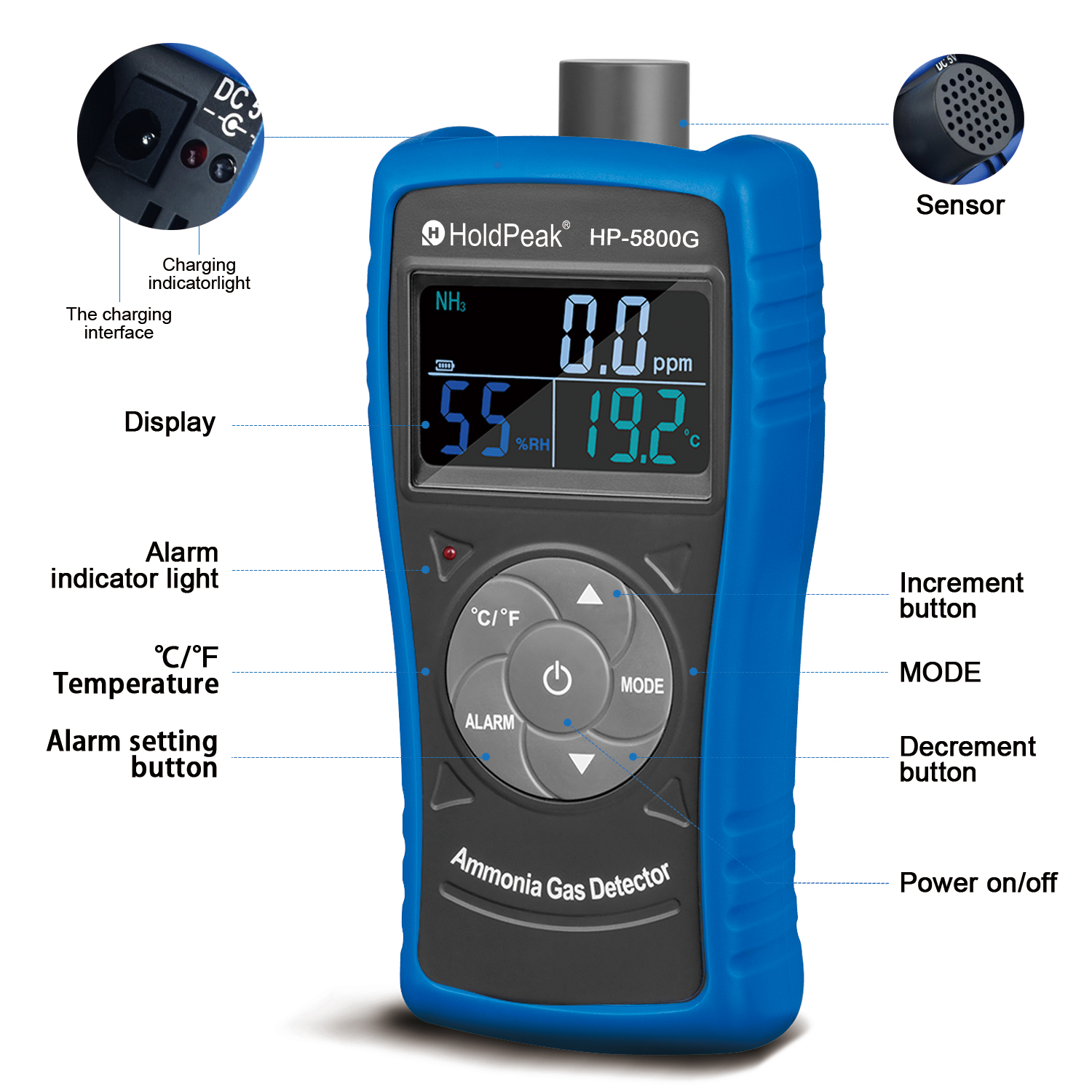

Features & Interface
- Alarm System
- Audible and visual indicators with user-adjustable thresholds
- Display Type
- Digital LCD with real-time multi-parameter readout
- Interface Controls
- Power On/OffMode SelectionAlarm SettingUnit Switch (°C/°F)Increment/Decrement
Physical Dimensions
Device Size
| Dimension | Value |
|---|---|
| Height | 218 mm |
| Width | 75 mm |
| Depth | 122 mm |
Applications
Recommended Environments
Industrial SafetyAgricultureEnvironmental MonitoringEngineering FacilitiesClassroomsOffices

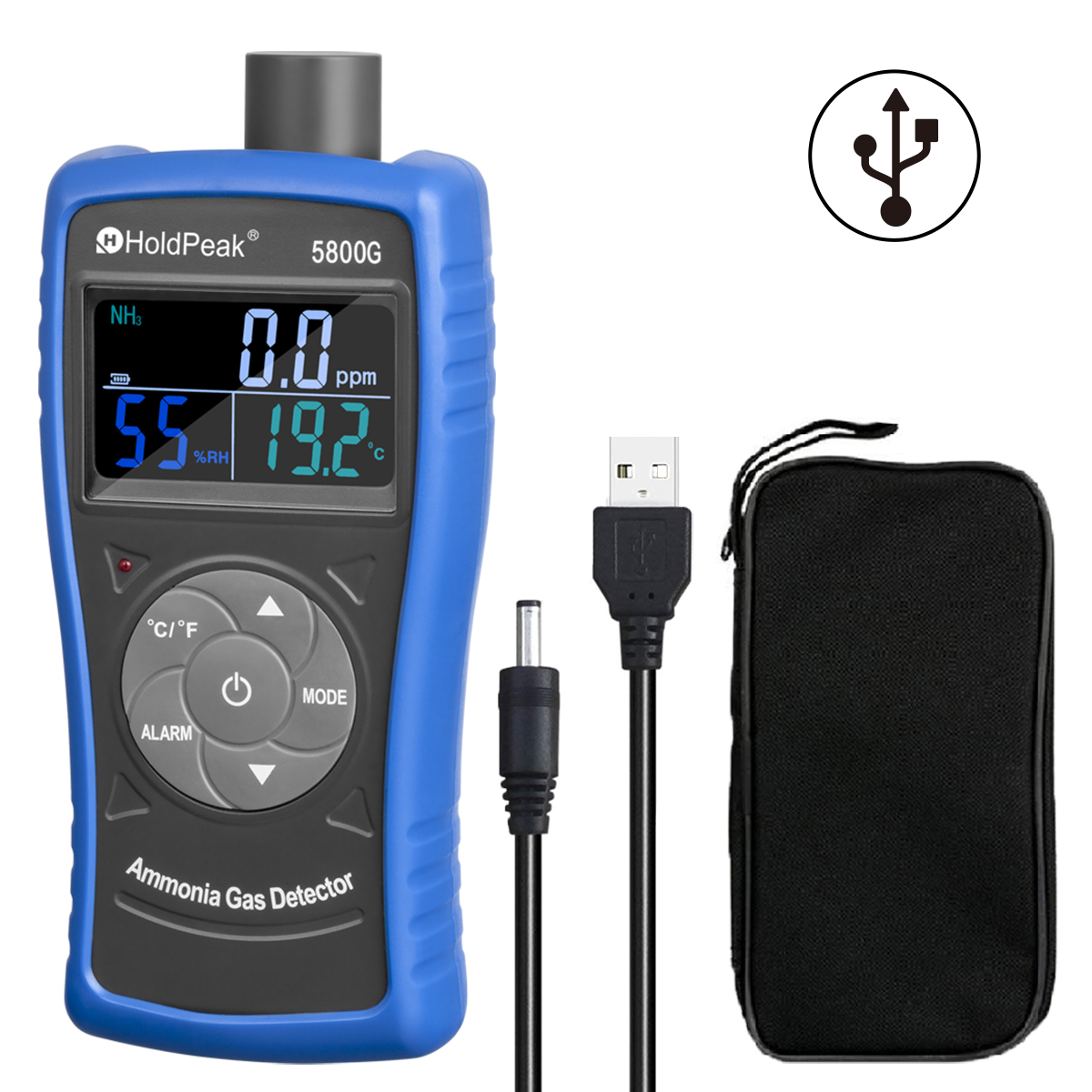

Package Contents
What's in the Box
- Ammonia Gas Detector
- Carrying Case
- USB Charging Cable
- User Manual
