Portable 0.85kW Gasoline Generator
This portable gasoline generator provides reliable power for various applications. It features a 2-stroke engine, AC outlets, and a durable frame for protection and portability.
Technical Specifications
Overview
Compact Power Solution

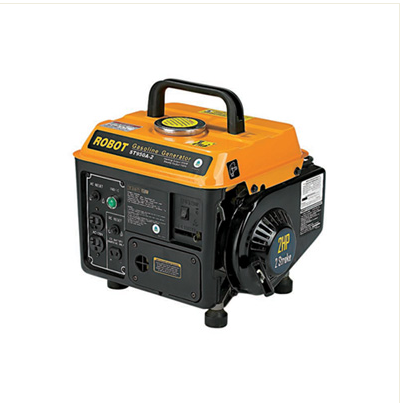

The ST950A is a portable gasoline generator engineered for reliable, on-the-go power. Featuring a robust 2HP 2-stroke engine and a durable handle frame, it is designed for ease of transport and efficient operation. This unit provides a maximum AC output of 0.85kW, making it an ideal choice for small-scale electrical needs.
Electrical Performance
Key Performance Metrics
0.85 kW
Max AC Output
0.75 kW
Rated AC Output
60 Hz
Frequency
Electrical Specifications
| Parameter | Value |
|---|---|
| Voltage | 110~120V |
| Power Factor | 1.0 |
| Voltage Regulator | Condenser |
| Type | Brushless, Revolving Magnetic Field |
Engine Specifications
Engine Details
- Model: 1E45F
- Engine Type: 2-Stroke, Forced Air-cooled, Single Cylinder
- Power: 2.0 HP
- Displacement: 63ml
- Bore x Stroke: 45mm x 42mm
Fuel and Operation
Fuel & Consumption
| Feature | Detail |
|---|---|
| Fuel Type | Unleaded Gasoline |
| Tank Capacity | 4.2L |
| Mixing Ratio | 40:1 (Gasoline/Oil) |
| Fuel Consumption | ≤544g/KW-hour |
Features & Options
Optional Equipment
DC Socket (12V/8.3A)
- Standard Features
- Indicator LightAC Circuit BreakerManual Recoil Start
