Overview

Commercial Swimming Pool Heat Pump

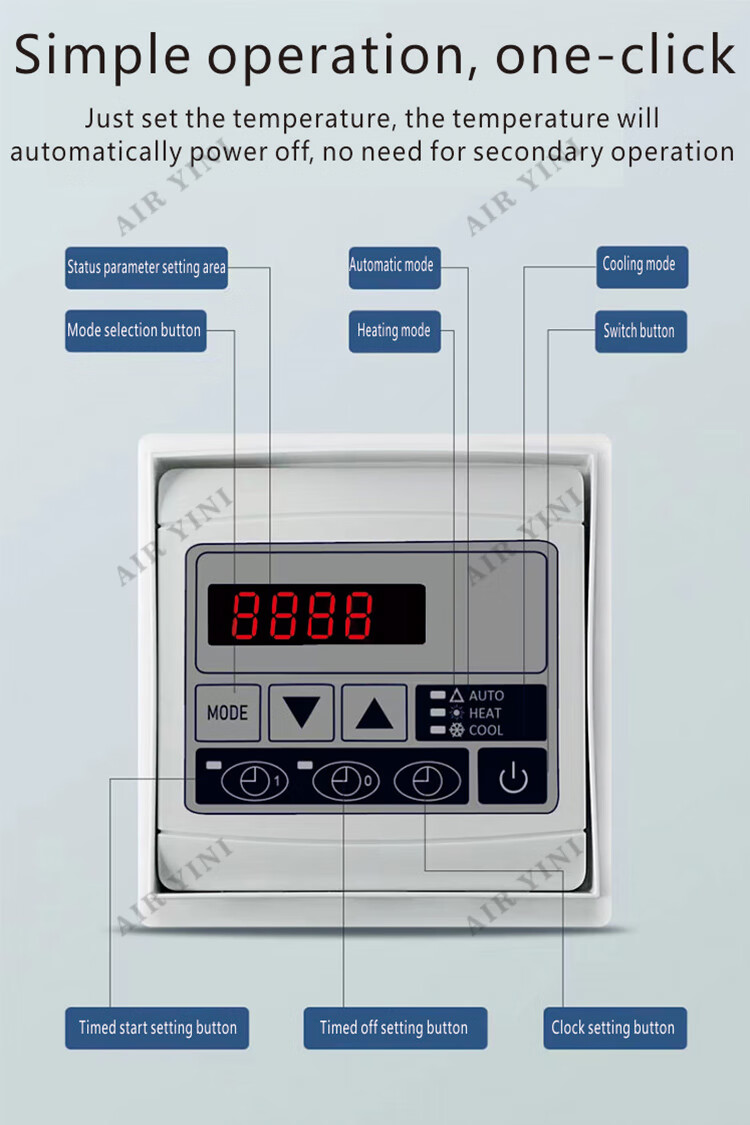

This high-efficiency air source heat pump is specifically engineered for precise water temperature control in commercial and residential swimming pools, spas, and gyms. By utilizing advanced heat exchange technology, the system achieves a COP of 6.8, offering at least 80% energy savings compared to traditional electric heating methods. It features robust construction with titanium heat exchangers and intelligent microprocessor control for stable, reliable performance in various environments.

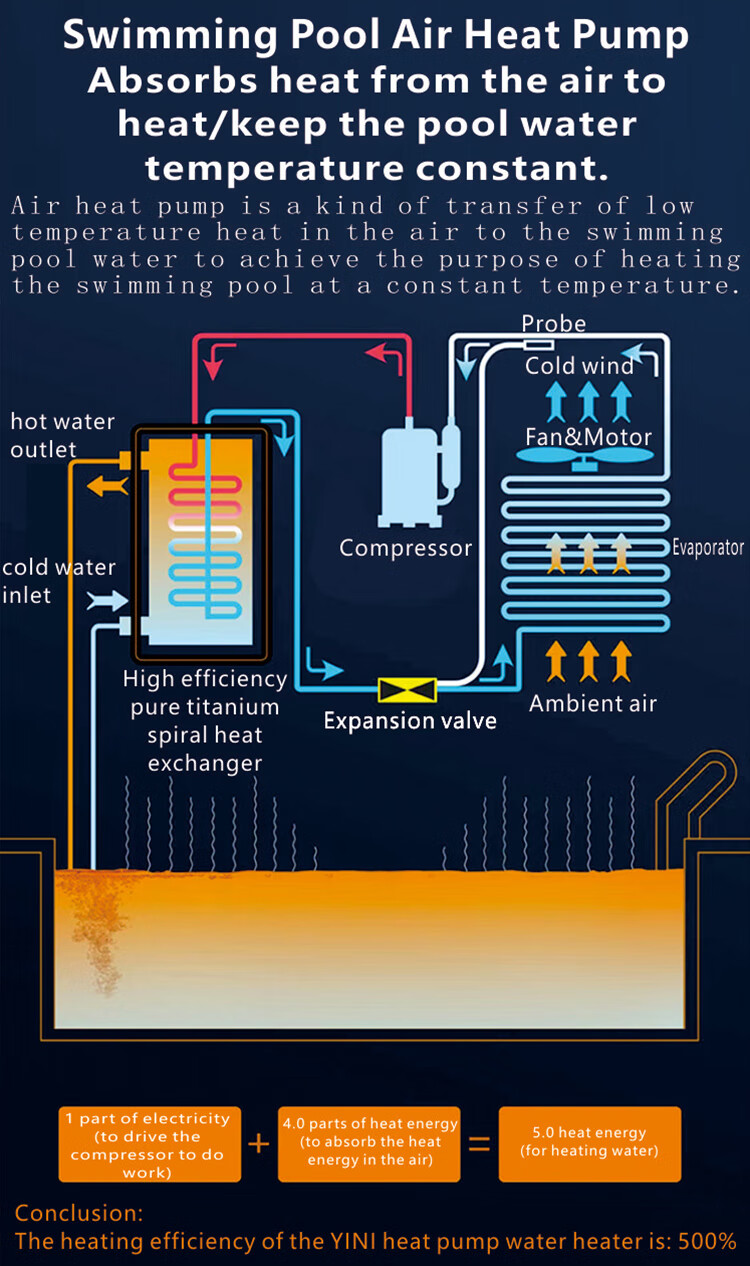

Heat pump working principle diagram showing energy transfer process — Efficient heat transfer process achieving up to 500% heating efficiency by absorbing thermal energy from ambient air.

Performance Metrics

Key Operational Metrics

7.8 kW

Rated Heating Capacity

6.8 W/W

Coefficient of Performance (COP)

1.15 kW

Rated Input Power

5.9 A

Max Running Current

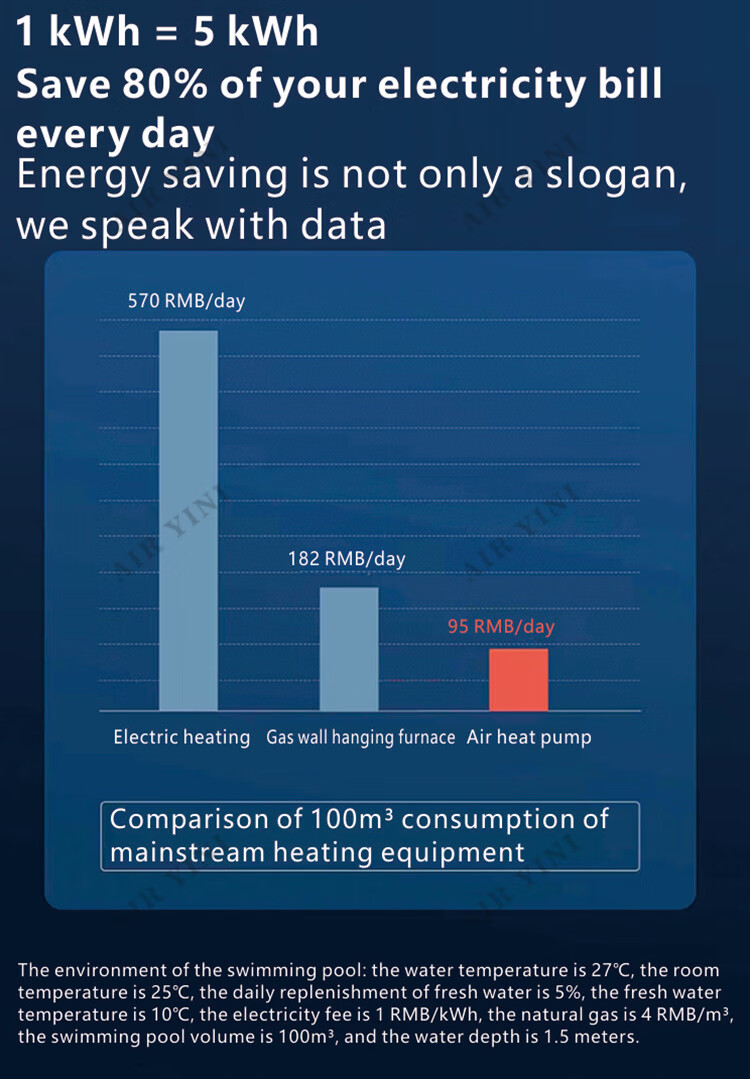

Cost comparison chart between electric, gas, and heat pump heating methods — Economic analysis demonstrating significant daily cost savings compared to traditional heating equipment.

Technical Specifications

Detailed Specifications

Feature	Specification
Model	YINI-010-YC
Heating Mode	Circulating
Ambient Temp Range	-15~+43°C
Power Supply	220V-240V 1N~50Hz
IP Protection	IPX4
Refrigerant	R32
Compressor Type	Scroll

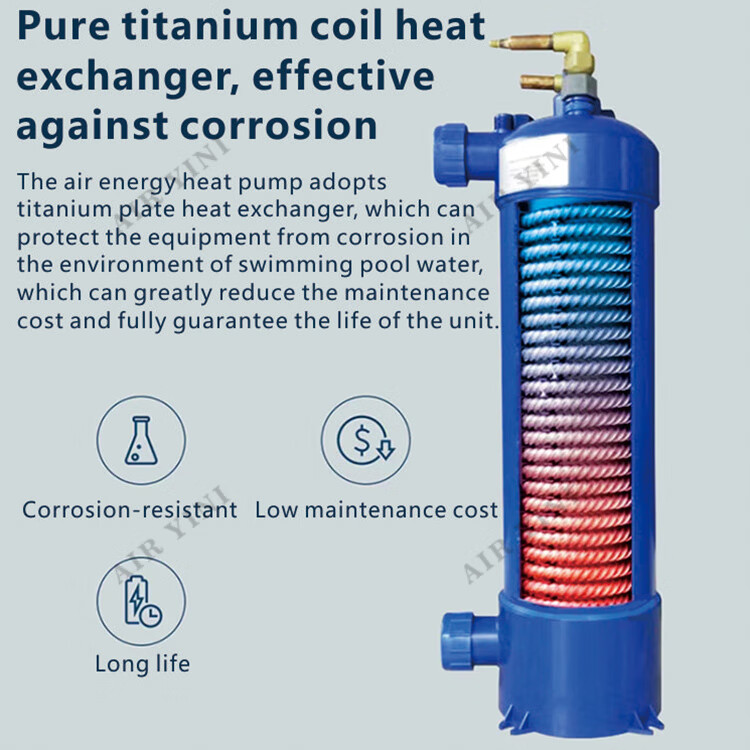

Heat Exchanger	Titanium
