Technical Specifications
Product Overview

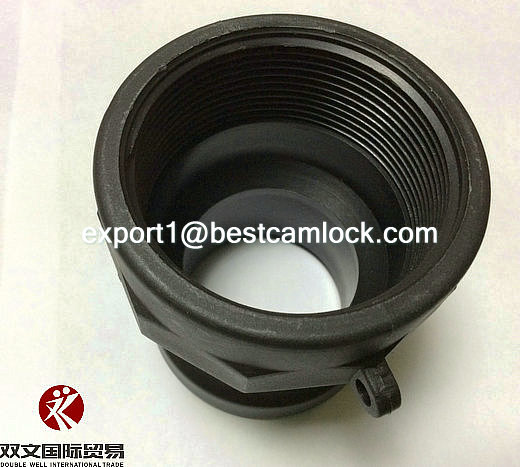

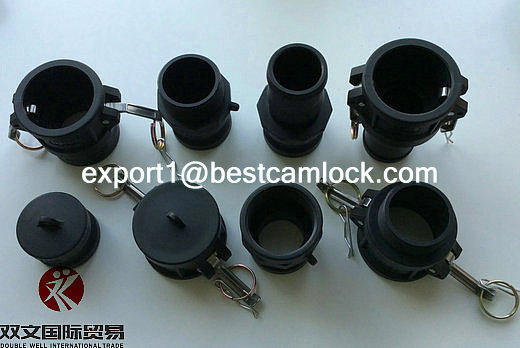

Versatile Polypropylene Camlock Couplings
These Polypropylene (PP) cam and groove couplings offer an efficient, tool-free connection solution for hoses and pipes in various industrial and agricultural fluid transfer applications. Engineered for superior cost-performance, they feature excellent abrasion and chemical resistance alongside a lightweight, durable construction. The quick-release design eliminates the complexity of traditional threaded or flanged connections, significantly improving operational efficiency.
Technical Specifications
Working Pressure
100 psi
1" to 2 1/2"
50 psi
3" to 4"
- Available Sizes
- 1/2"3/4"1"1 1/4"1 1/2"2"2 1/2"3"4"
- Temperature Range
- -30°F to 200°F
Materials & Components
Handle Materials
- Brass
- Stainless steel
Gasket Options
- NBR
- EPDM
- Viton
- PTFE
Thread Compatibility
- ISO228 (BSP)
- ISO7 (BSPT)
- ANSI B1.20 (NPT)
- Safety Pin Material
- Carbon steel platedStainless steel
Application & Usage
- Compatible Media
- OilWaterGasChemicalsPetroleum
Logistics
- Lead Time
- 30 days
